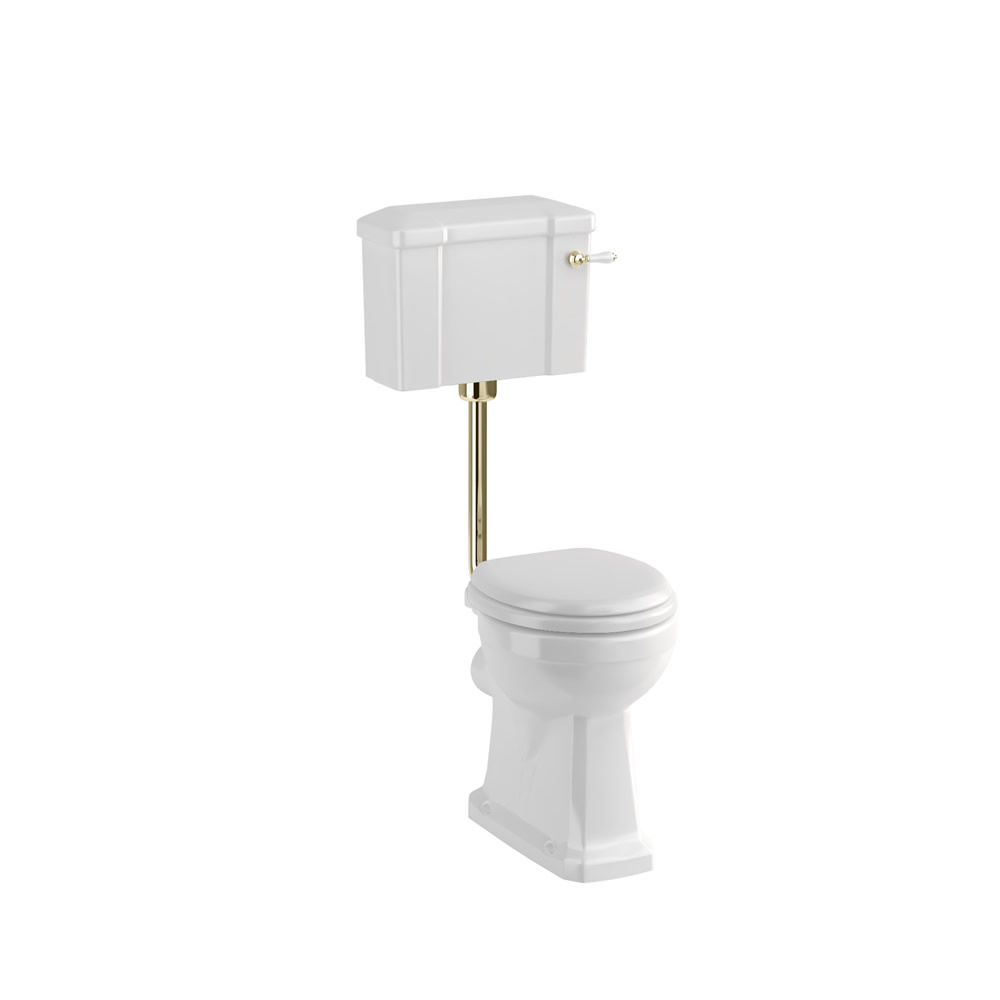

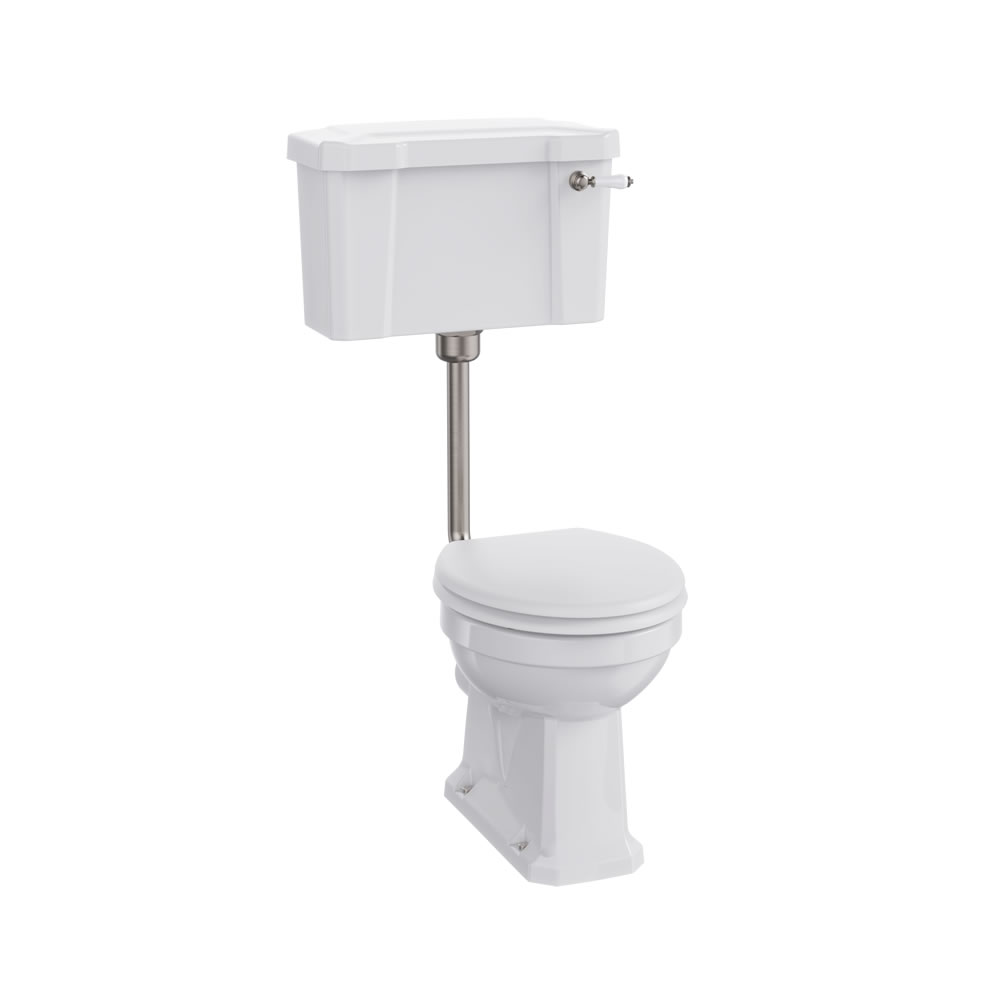

Standard Low Level WC

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side.

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

P trap standard height pan - height from floor to pan rim is 40cm.

Recommended to be used with cistern tank isolation valve W25.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Regal Height pan ( floor to pan rim height 48cm ) available : P16.

Cistern can be used with optional decorative Ornate Brackets T32 CHR.

Low level wc must be used with standard Burlington toilet seats.

Supplied with floor fixings.

SP8 NKL is the low level cistern lever for Nickel combination.

Spare parts

SP11	51cm Cistern Lid for C1 & C2
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP8	ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390 GOLD	cistern Lever for C1, C3 - GOLD
SP504-2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A	lever Flush Bottom Entry cistern fitting with ceramic lever
SP17	screw fixing pack for pan and bidet
SP802	the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
