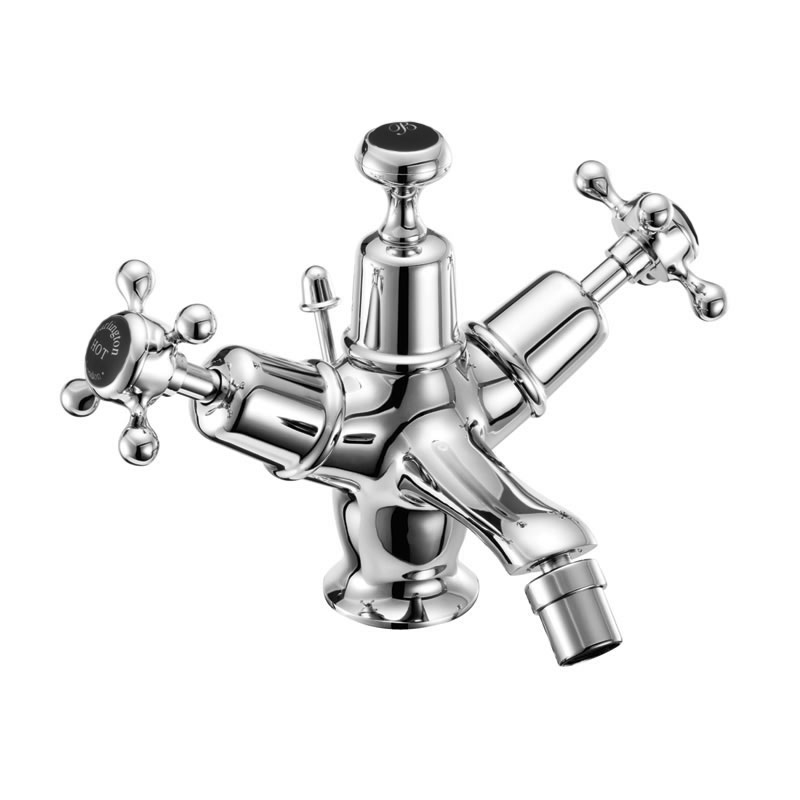

Burlington bidet mixer with high central indice with pop-up waste
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey bidet mixer with pop-up waste Anglesey Birkenhead bidet mixer with pop-up waste Birkenhead
Tap Base options
Claremont bidet mixer with pop-up waste Standard base Claremont Regent bidet mixer with pop-up waste - Black Regent base
Indicies & lever finish
Claremont bidet mixer with pop-up waste White Claremont Medici bidet mixer with pop-up waste Medici Claremont bidet mixer with pop-up waste Black
Quarter turn options
Claremont bidet mixer with pop-up waste quarter turn full_done.jpg tradional screw-down
Alternate Text
As Shown
T15 Bidet mixer with pop up
T1 BLA Claremont tap handles (pair) - chrome & black
BX23 Black B indice - 22mm
CL13 BLA  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.3  15.2  16.9  19.4  20.7  n/a  n/a
Spout (aerator) 3.8  5.3  7.3  8.3  10.5  n/a  n/a
SP1726 back bottom washer for SP28
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29 T13, T15 1, 2 full turn cartridge
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1125 the nozzle for T15, T15-QT, CH23
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
