Burlington basin mixer with high central indice
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

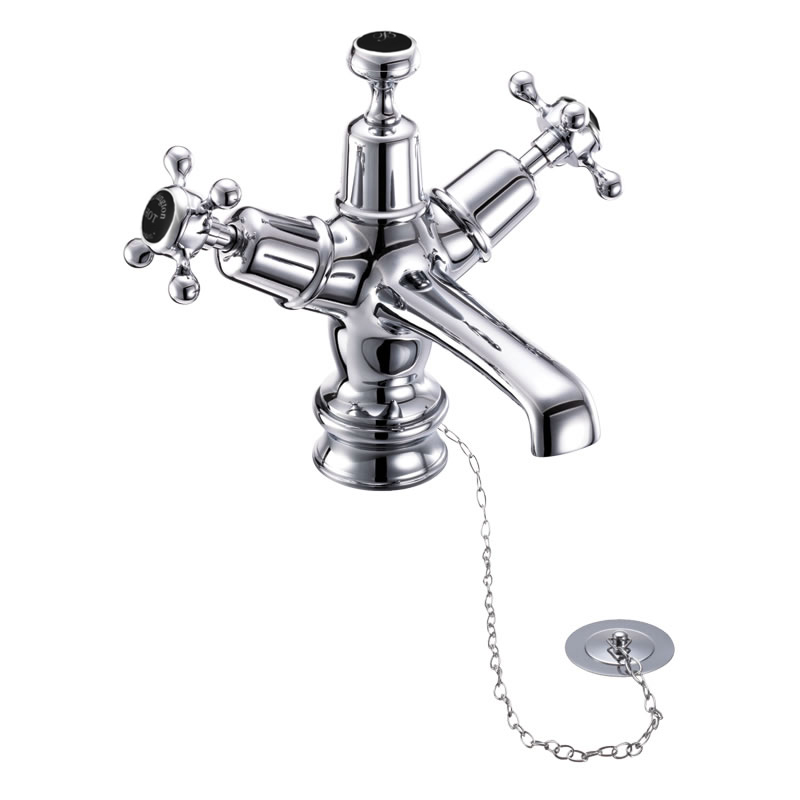

Claremont Regent basin mixer with plug and chain waste Chrome
Tap Head Options (Chrome Finish Shown)
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey Regent basin mixer with plug and chain waste Anglesey Birkenhead Regent basin mixer with plug and chain waste Birkenhead
Quarter turn options
Claremont Regent basin mixer with plug and chain waste quarter turn full_done.jpg tradional screw-down
Tap Base options
Claremont basin mixer with plug and chain waste Standard base Claremont Regent basin mixer with plug and chain waste Regent base
Waste options
Claremont Regent basin mixer with click clack waste with click-clack waste Claremont Regent basin mixer with pop-up waste with pop-up waste plugchain.jpg with plug & chain
Indicies & lever finish
Claremont Regent basin mixer with plug and chain waste White Claremont Medici Regent basin mixer with plug and chain waste Medici Claremont Regent basin mixer with plug and chain waste Black
Alternate Text
As Shown
T13 Basin mixer with plug & chain
T4B Regent small single tap base
T1 BLA Claremont tap handles (pair) - chrome & black
BX23 Black B indice - 22mm
CLR5 BLA  -  Combined product code
Colour
T13 - tap - Polished Chrome
T4B - regent tap base - Polished Chrome
T1 BLA - tap handle - Polished Chrome
BX23 - indice - Gloss Black
Material
T13 - tap - Brass
T4B - regent tap base - Brass
T1 BLA - tap handle - Brass
BX23 - indice - Vitreous China
Size
T13 - 151 x 215 x 152mm
T4B - 55 x 55 x 29mm
T1 BLA - 65 x 65 x 28mm
BX23 - 22 x 22 x 6.3mm
Nett Weight
T13 - tap - 1.7kg
T4B - regent tap base - 0.15kg
T1 BLA - tap handle - 0.15kg
BX23 - indice - 0.004kg
Gross Weight Including Packaging
T13 - tap - 2kg
T4B - regent tap base - 0.21kg
T1 BLA - tap handle - 0.17kg
BX23 - indice - 0.02kg
Packed Dimension
T13 - 415 x 335 x 180 = 0.025 m3
T4B - 65 x 65 x 35 = 0.0001 m3
T1 BLA - 60 x 60 x 62 = 0.0002 m3
BX23 - 55 x 54 x 55 = 0.0002 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 12  13.2  15.2  19.4  21.4  n/a  n/a
Spout (aerator) 4.5  7.8  8.7  9.8  12  n/a  n/a
SP450 aerator for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP1726 back bottom washer for SP28
SP1189 black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1
SP1235 chain for T13, T13-QT, T16, T16-QT, W1
SP817 chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for all finishes products of T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP194 o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655 pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP1111 plug (including the chain, stud and nut) for T13, T13-QT
SP884 plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29 T13, T15 1, 2 full turn cartridge
SP942 tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1103 the grate for the W1, T16, T16-QT, T13, T13-QT
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Downloads
  • Instructions - PDF - T13 (English)
  • Instructions - PDF - T13 (French)
  • 3D RFA BIMM Objects - File - RFA  -  CLR5 BLA (T13_T1_T4B.rfa)
  • 3D DWG - File - DWG - T4B (T4B.dwg)
  • 3D IGS - File - IGS - T1 BLA (T1 handle.igs)
  • 3D DWG - File - DWG - T13 (T13.dwg)
  • 3D DXF - File - DXF - T13 (T13.dxf)
  • 3D IGS - File - IGS - T13 (T13.igs)
  • 3D DXF - File - DXF - T4B (T4B.dxf)
  • 3D IGS - File - IGS - T4B (T4B.igs)
  • Lifestyle image 1 - tiff
    jpg
  • Product image 1 - jpg
  • Product image 2 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
