Shallow P Trap

asaq2.Model.Web_product_new?.web_name

Product Options

Finish Options

P-trap

Chrome

P-trap

Gold

Shallow P trap -nickel

Nickel

Shallow P Trap Brushed Nickel

Brushed Nickel

Alternate Text

As Shown

CW3 NKL Shallow P trap -nickel

Colour

CW3 NKL - waste - Polished Nickel

Material

CW3 NKL - waste - Brass

Size

CW3 NKL - 128 x 54 x 83mm

Nett Weight

CW3 NKL - waste - 0.4kg

Gross Weight Including Packaging

CW3 NKL - waste - 0.45kg

Packed Dimension

CW3 NKL - 135 x 65 x 65 = 0.0006 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - CW3 NKL (English)
Instructions - PDF - CW3 NKL (French)

2D CAD-File - DWG - CW3 NKL (ARCCW3 NKL_LD.dwg)

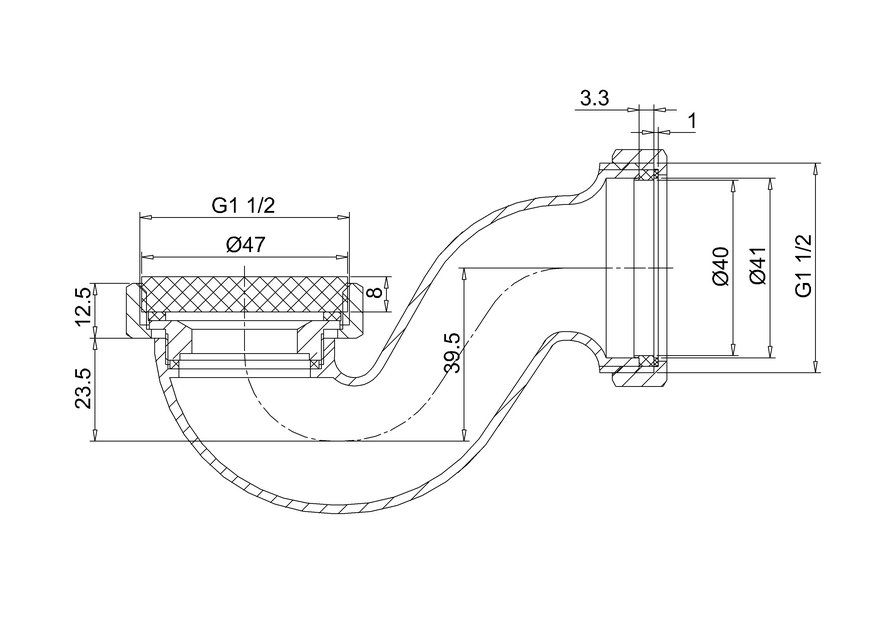

2D Drawing - PDF - CW3 NKL (ARCCW3 NKL_LD.pdf) 2D Drawing - PDF - CW3 NKL

3D DWG - File - DWG - CW3 NKL (CW3.dwg)
3D DXF - File - DXF - CW3 NKL (CW3.dxf)
3D IGS - File - IGS - CW3 NKL (CW3.igs)
3D RFA BIMM Objects - File - RFA - CW3 NKL (CW3.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
