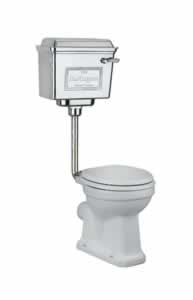

Standard Low Level WC
Product Options
WC options
Cistern Options
flush pipe options
|
with lever flush 52cm wide cistern C1
|
Standard Cistern
|
Chrome Aluminium Cistern
|
|
Chrome
|
As Shown
| T31 CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector |
| P2 Low/high level pan |
| T71 CHR Chrome Aluminium Low Level & Medium Level Cistern including lever cistern fittings |
| T32 CHR Medium ornate brackets |
| S12 Mahogaony seat |
| A51 CHR Burlington seat handle Chrome |
Colour
| T31 CHR - fittings - Polished Chrome |
| P2 - pan - Gloss White |
| T71 CHR - cistern - Polished Chrome |
| T32 CHR - fittings - chrome |
| S12 - seat - Gloss Mahogany |
| A51 CHR - accessories - Polished Chrome |
Material
| T31 CHR - fittings - Brass |
| P2 - pan - Vitreous China |
| T71 CHR - cistern - Aluminum |
| T32 CHR - fittings - brass |
| S12 - seat - Molded Wood |
| A51 CHR - accessories - Zinc Alloy |
Size
| T31 CHR - 221 x 38 x 420mm |
| P2 - 524 x 360 x 403mm |
| T71 CHR - 430 x 200 x 380mm |
| T32 CHR - 10 x 154 x 232mm |
| S12 - 432 x 371 x 65mm |
| A51 CHR - 50 x 56 x 8mm |
Nett Weight
| T31 CHR - fittings - 1.27kg |
| P2 - pan - 17kg |
| T71 CHR - cistern - 8.3kg |
| T32 CHR - fittings - 0.78kg |
| S12 - seat - 2.87kg |
| A51 CHR - accessories - 0.04kg |
Gross Weight Including Packaging
| T31 CHR - fittings - 1.59kg |
| P2 - pan - 18.7kg |
| T71 CHR - cistern - 8.9kg |
| T32 CHR - fittings - 0.95kg |
| S12 - seat - 3.1kg |
| A51 CHR - accessories - 0.07kg |
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
| SP965 | brass decorative cover of cistern connection for product T31 CHR |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP620 | complete bar hinges for S11, S12 |
| SP890 | flush pipe of product T31 CHR |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504-2 | inlet valve for Burlington close coupled cisterns |
| SP841 | inner box for T32 CHR |
| SP160 | l shape bracket(pair) for T31CHR |
| SP17 | screw fixing pack for pan and bidet |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - T31 CHR (English)
- Instructions - PDF - T71 CHR (English)
- Instructions - PDF - S12 (English)
- Instructions - PDF - A51 CHR (English)
- Instructions - PDF - S12 (French)
- Instructions - PDF - A51 CHR (French)
- Instructions - PDF - T71 CHR (French)
- Instructions - PDF - T31 CHR (French)

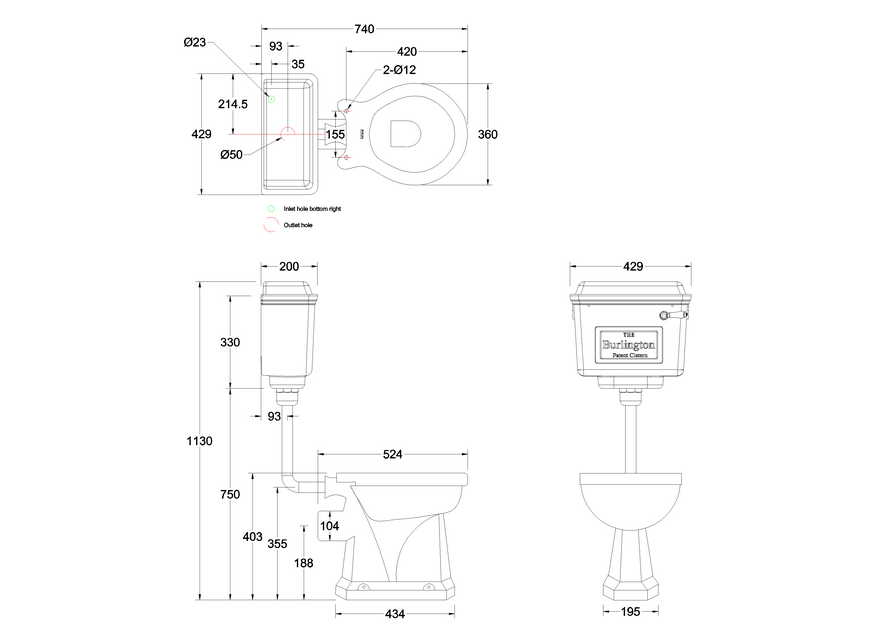

- 2D CAD-File - DWG - T71 T31 P2 (P2 T71 T31 CHR.dwg)
-
2D Drawing - PDF -
T71 T31 P2
(P2 T71 T31 CHR.pdf)
2D Drawing - PDF - T71 T31 P2
-
3D DWG - File - DWG
-
T71 T31 P2
(100031.dwg)
-
3D RFA BIMM Objects - File - RFA
-
T71 T31 P2
(100031.rfa)
-
3D IGS - File - IGS
-
T71 T31 P2
(t31.igs)
-
