Edwardian 80cm basin
Product Options
Options
|
with Classic pedestal
|

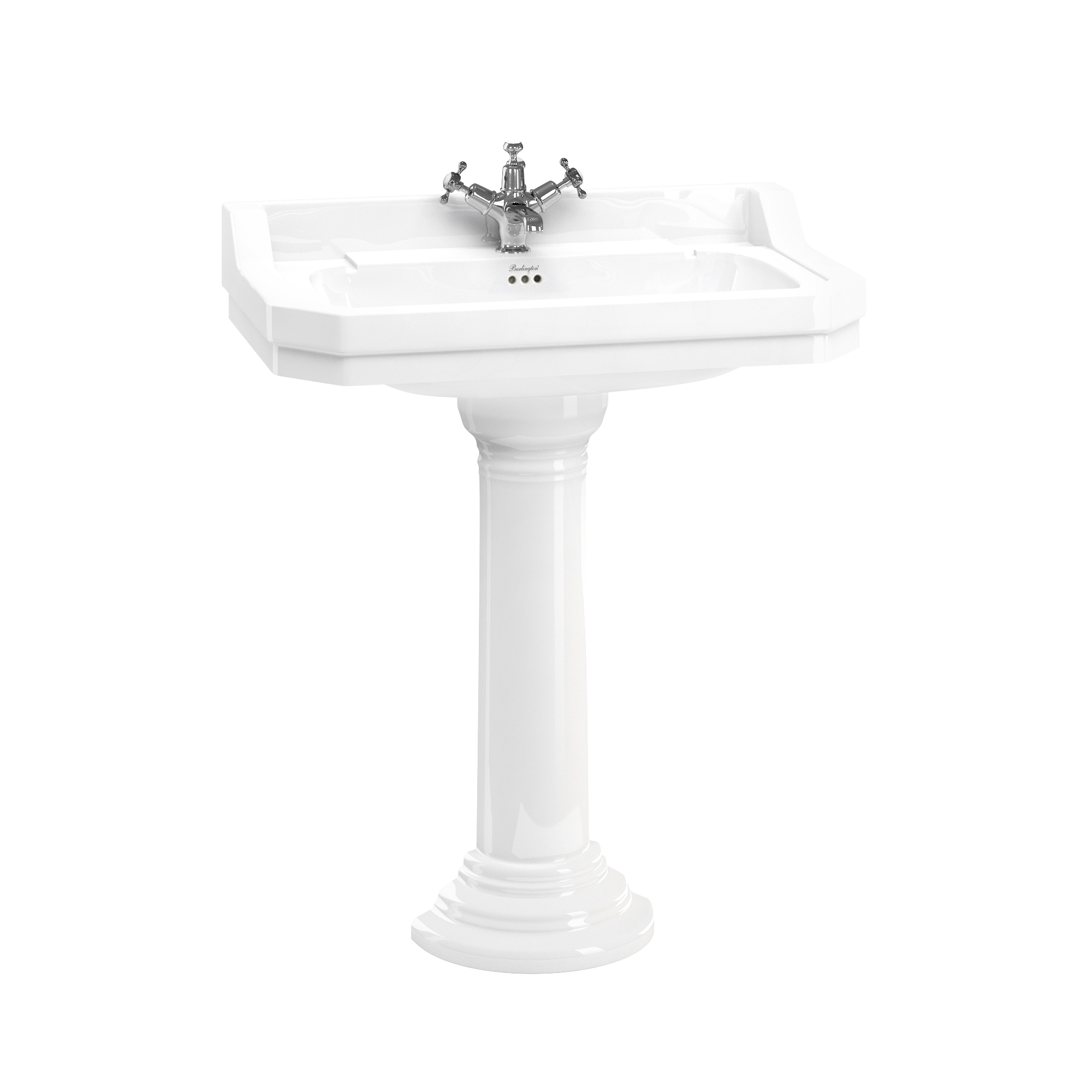

with regal pedestal
|

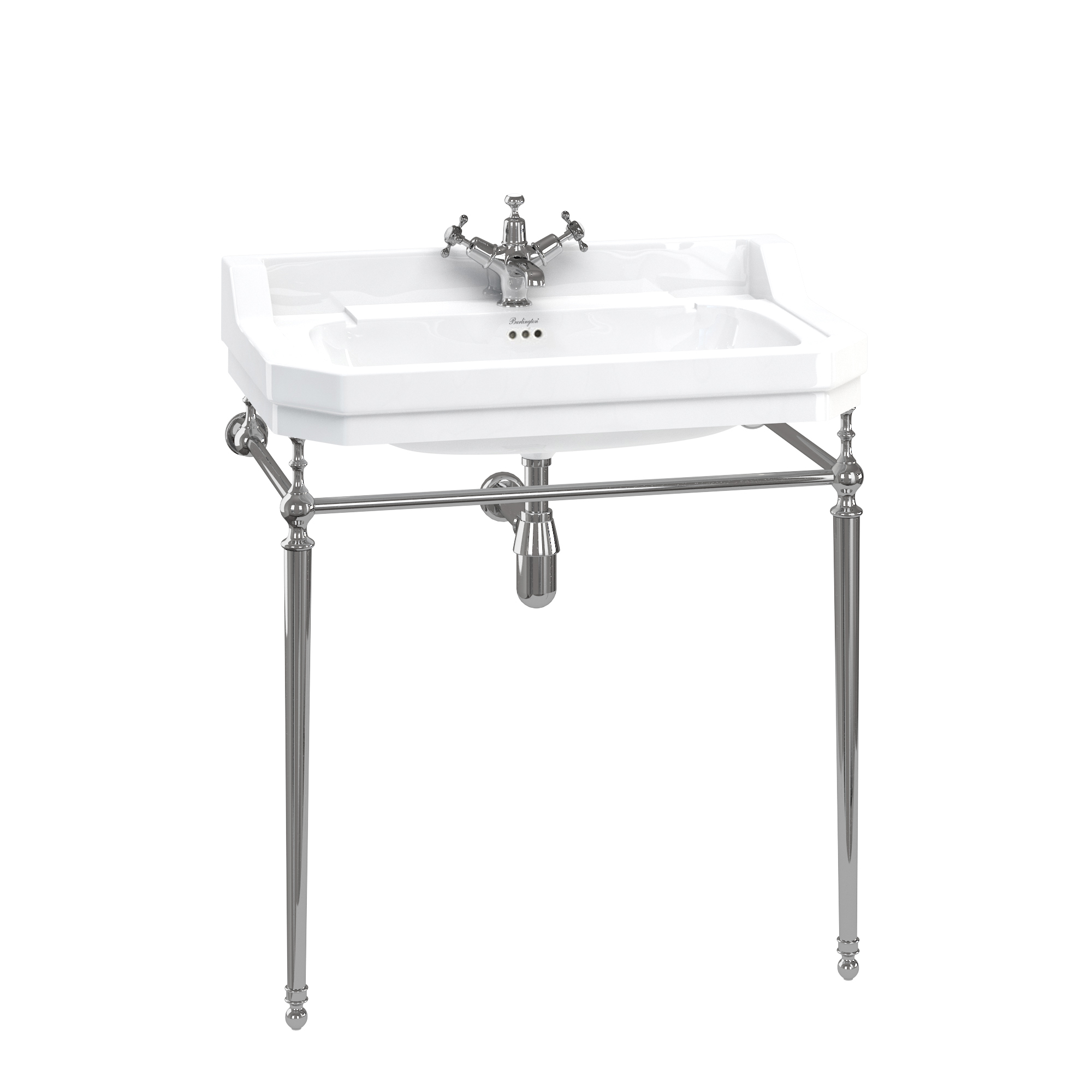

with wash stand
|

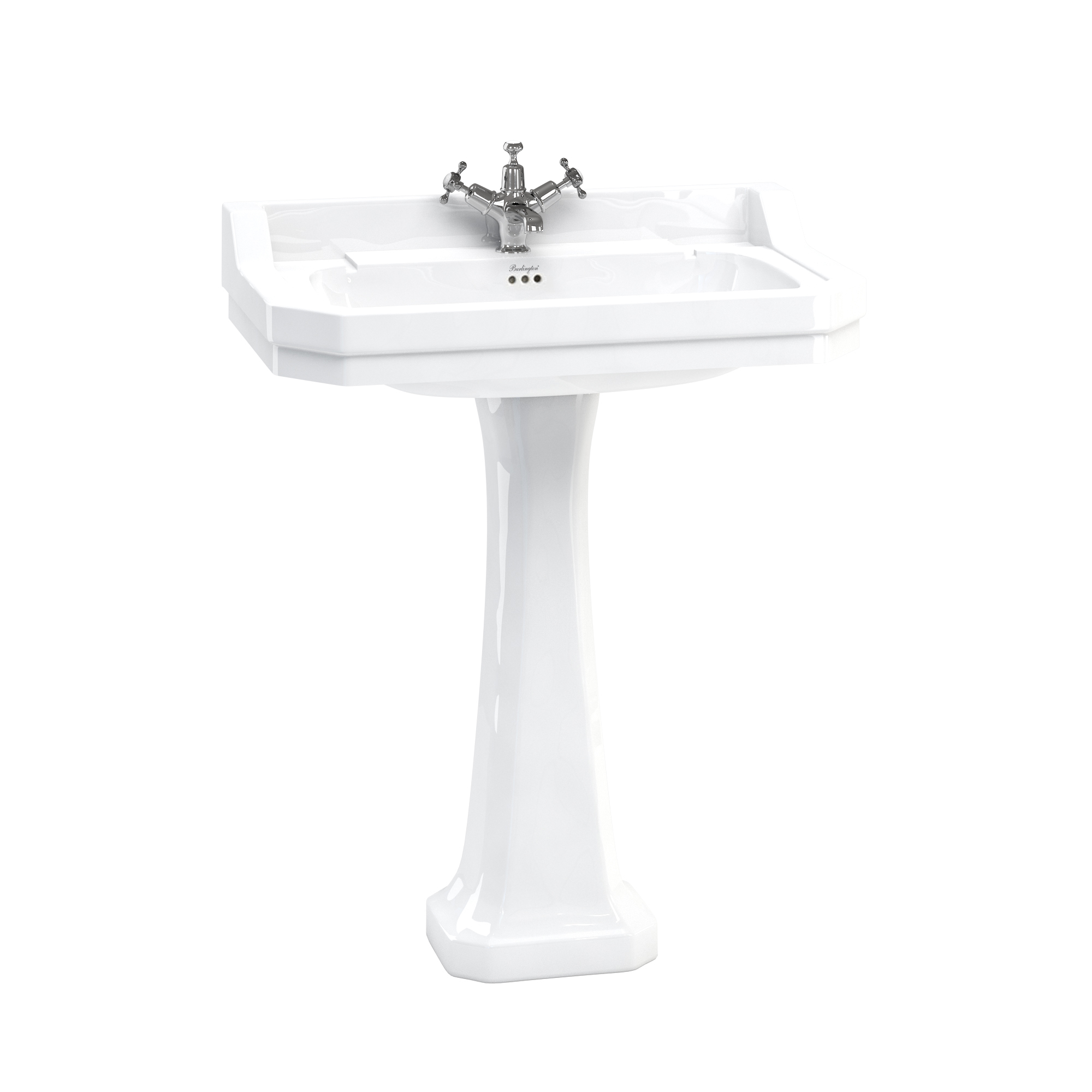

As Shown
| P6 Classic pedestal |
| B18 1TH Edwardian 80cm basin one tap hole |
Nett Weight
| P6 - pedestal - 12.25kg |
| B18 1TH - basin - 22.5kg |
Gross Weight Including Packaging
| P6 - pedestal - 14.15kg |
| B18 1TH - basin - 25.88kg |
Packed Dimension
| P6 - 687 x 325 x 275 = 0.0614 m3 |
| B18 1TH - 815 x 520 x 295 = 0.125 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
P6 B18 1TH
(P6 B18 1TH_LD.dwg)
-

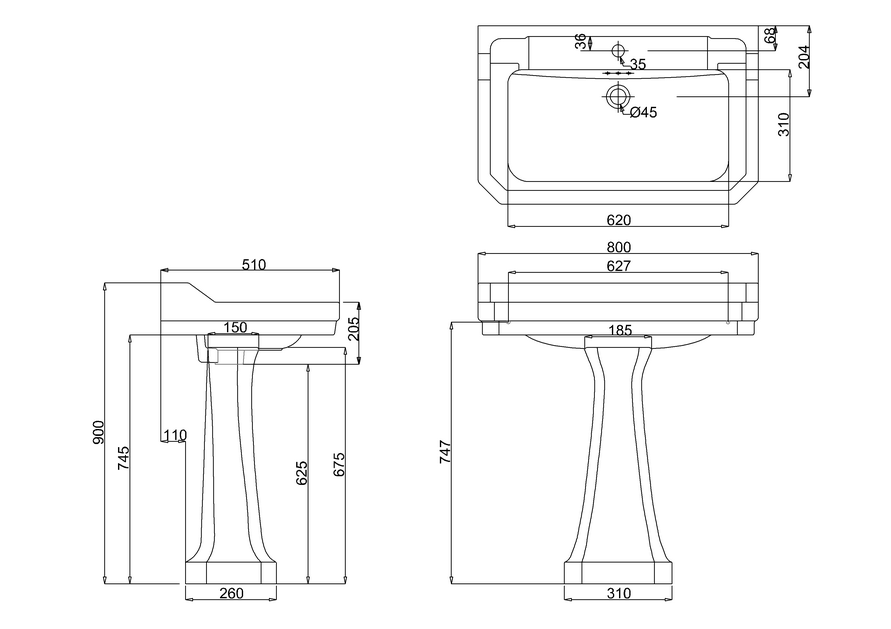

2D Drawing - PDF -
P6 B18 1TH
(P6 B18 1TH_LD.pdf)
2D Drawing - PDF - P6 B18 1TH
-
3D DWG - File - DWG
-
P6 B18 1TH
(70003.dwg)
-
3D DXF - File - DXF
-
P6 B18 1TH
(70003.dxf)
-
3D IGS - File - IGS
-
P6 B18 1TH
(70003.igs)
-
3D RFA BIMM Objects - File - RFA
-
P6 B18 1TH
(70003.rfa)
