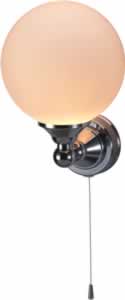

Edwardian single round LED light
As Shown
| T50 Edwardian single round light |
Material
| T50 - light - Zinc Alloy |
Nett Weight
| T50 - light - 0.85kg |
Gross Weight Including Packaging
| T50 - light - 1.2kg |
Packed Dimension
| T50 - 360 x 210 x 190 = 0.0144 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-1:2015+A1:2018 |
|
BS EN 60598-2-2:2012 |
Additional Information
|
This light is supplied with G9 LED light, They are 3.5 Watts, but give 40 watts of light and have an IP rating of IP44. |
|
The mouth blown glass shades are handmade and may feature unique characteristics such as air bubbles and individual variations |
|
This light is supplied with a blank washer so you can switch the light centrally if desired. |
| SP199 | 2pcs grub screws and 1pcs Allen key for T50, T51, T52, T53 |
| SP643 | LED bulb for T50, T52 |
| SP125 | light shade for T50 |
| SP707 | pull chord for T52, T50 |
Downloads

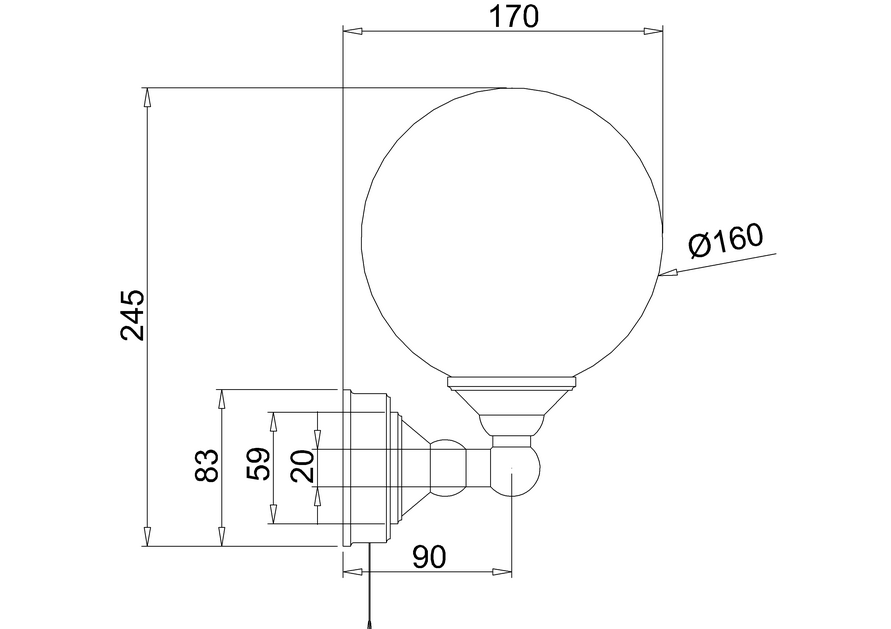

- 2D CAD-File - DWG - T50 (T50_LD.dwg)
-
2D Drawing - PDF -
T50
(T50_LD.pdf)
2D Drawing - PDF - T50
