Standard P trap horizontal outlet P5
Product Options
Finish options
WC options
handle options
|
White
|

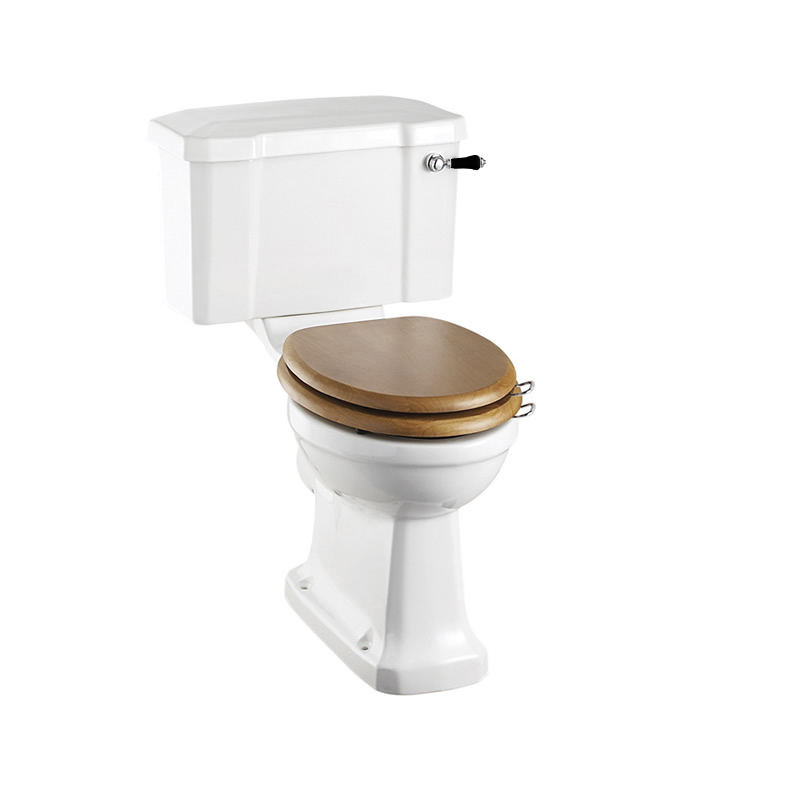

with lever flush 52cm wide cistern C1
|
with lever flush 44cm wide cistern C3
|

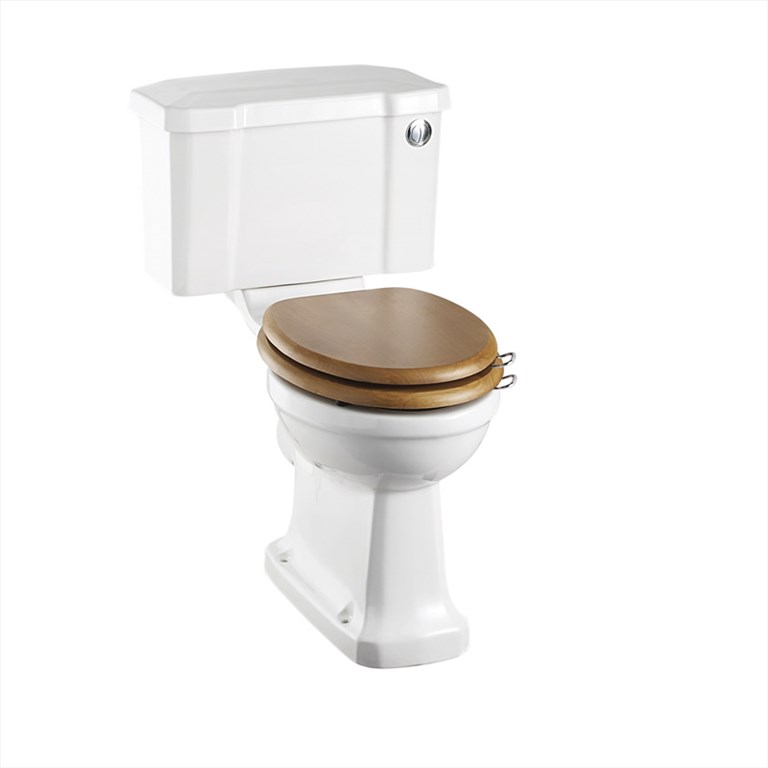

with push button flush 52cm wide cistern C2
|

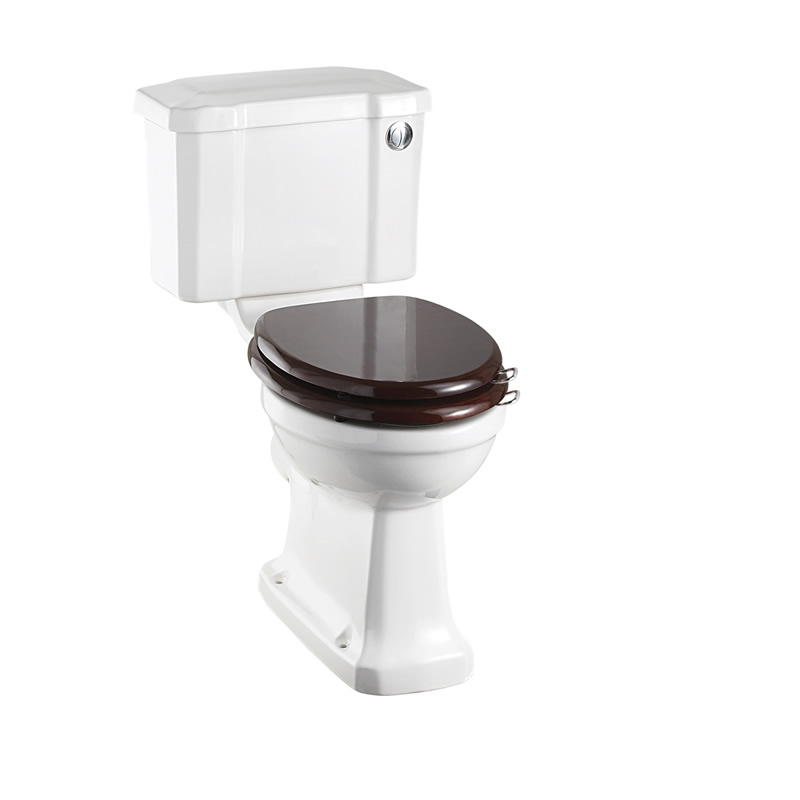

with push button flush 44cm wide cistern C4
|
white & chrome
|
white & nickel
|
white & gold
|
black & chrome
|
walnut & chrome
|
white & brushed nickel
|

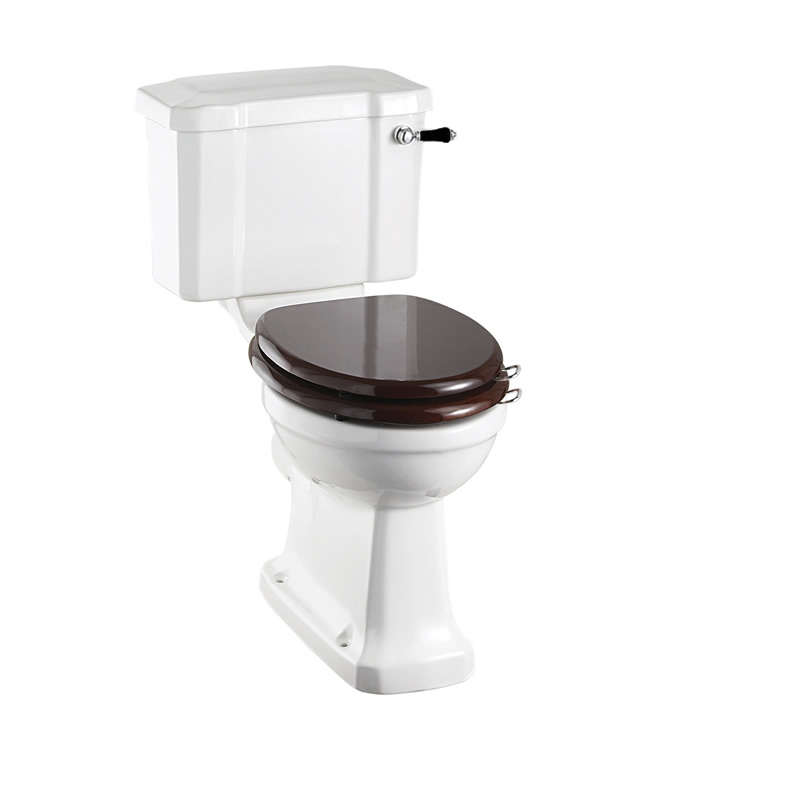

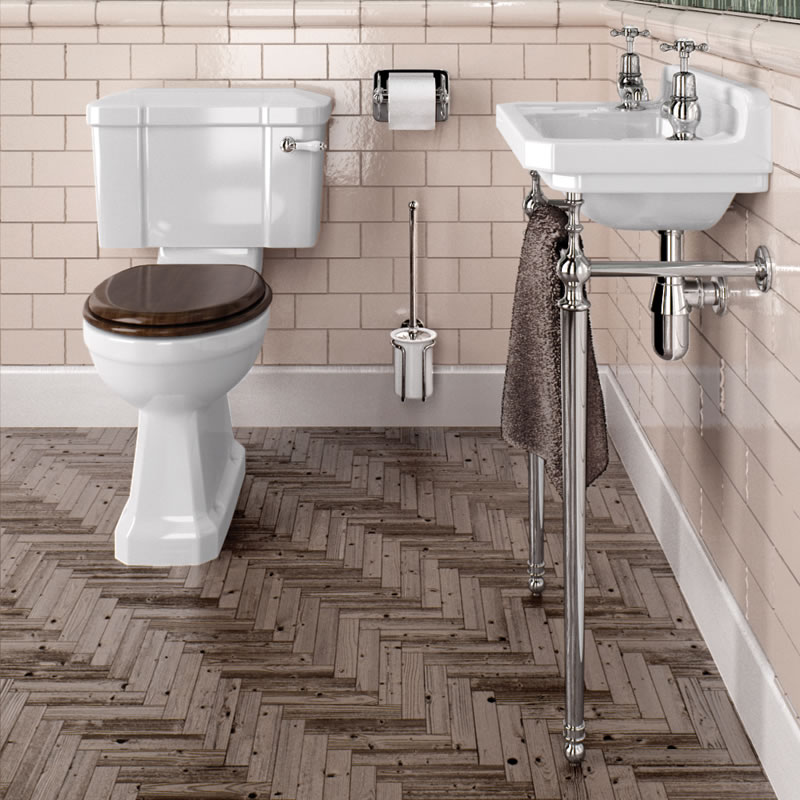

As Shown
| P5 Close coupled pan |
| C3 Close coupled/low level ceramic lever cistern |
| S12 Mahogaony seat |
| A51 GOLD Burlington seat handle GOLD |
| SP390 GOLD Cistern Lever for C1, C3 - GOLD |
| SP387 WC floor fixing plastic plugs and covers - GOLD |
Colour
Material
| P5 - pan - Vitreous China |
| C3 - cistern - Vitreous China |
| S12 - seat - Molded Wood |
| A51 GOLD - accessories - Zinc Alloy |
| SP390 GOLD - cistern lever - Zinc Alloy |
| SP387 - plugs and covers - ABS |
Size
| P5 - 655 x 355 x 450mm |
| C3 - 215 x 450 x 330mm |
| S12 - 432 x 371 x 65mm |
| A51 GOLD - 50 x 56 x 8mm |
| SP390 GOLD - 75 x 25 x 90mm |
Nett Weight
| P5 - pan - 21.45kg |
| C3 - cistern - 14.1kg |
| S12 - seat - 2.87kg |
| A51 GOLD - accessories - 0.04kg |
| SP390 GOLD - cistern lever - 0.22kg |
| SP387 - plugs and covers - 0.004kg |
Gross Weight Including Packaging
| P5 - pan - 24.15kg |
| C3 - cistern - 16.3kg |
| S12 - seat - 3.1kg |
| A51 GOLD - accessories - 0.07kg |
| SP390 GOLD - cistern lever - 0.53kg |
| SP387 - plugs and covers - 0.01kg |
Packed Dimension
| P5 - 672 x 370 x 475 = 0.1181 m3 |
| C3 - 537 x 227 x 360 = 0.0439 m3 |
| S12 - 440 x 373 x 65 = 0.0107 m3 |
| A51 GOLD - 60 x 60 x 100 = 0.0004 m3 |
| SP390 GOLD - 90 x 35 x 105 = 0.0003 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Dual flush cistern fittings with ceramic lever on the right. |
|
Press lever down for 6 litre flush and up for 3 litre flush. |
|
Regal Height pan ( floor to pan rim height 48cm ) available : P12. |
|
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26. |
|
Metal connection bracket. |
|
Close coupled wc must be used with standard Burlington toilet seats |
|
Supplied with floor fixings. |
|
Recommended to be used with cistern tank isolation valve W25. |
|
P trap standard height pan - height from floor to pan rim is 42cm. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side |
|
Bottom inlet valve (SP5). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug. |
| SP12 | 44cm Cistern Lid for C3 & C4 |
| SP511 | back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug |
| SP1021 | bottom sealing washer of flush valve for product C1, C3, C3, C4 |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP5 | cistern fittings for C3 (with small metal spacer) |
| SP84 | cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve) |
| SP9 | cistern Push Button |
| SP620 | complete bar hinges for S11, S12 |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504-2 | inlet valve for Burlington close coupled cisterns |
| SP508 | kit for close couple cistern |
| SP507 | kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR |
| SP17 | screw fixing pack for pan and bidet |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - C3 (English)
- Instructions - PDF - S12 (English)
- Instructions - PDF - A51 GOLD (English)
- Instructions - PDF - S12 (French)
- Instructions - PDF - A51 GOLD (French)
- Instructions - PDF - C3 (French)
-

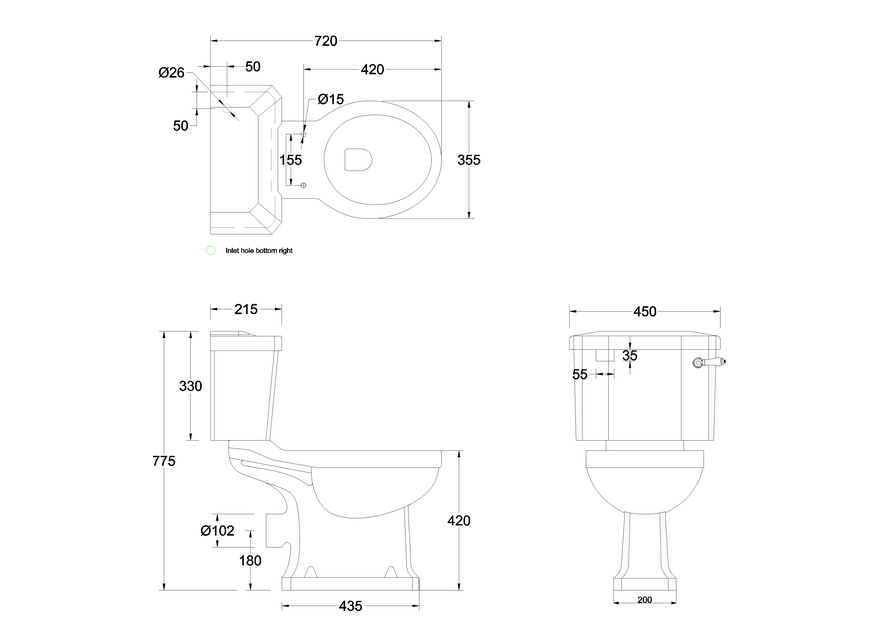

2D CAD-File - DWG -
P5 C3 S12 A51 GOLD SP390 GOLD
(P5-C3.dwg)
-
2D Drawing - PDF -
P5 C3 S12 A51 GOLD SP390 GOLD
(P5-C3.pdf)
2D Drawing - PDF - P5 C3 S12 A51 GOLD SP390 GOLD
-
3D DWG - File - DWG
-
P5 C3 S12 A51 GOLD SP390 GOLD
(2762-20201116.dwg)
-
3D RFA BIMM Objects - File - RFA
-
P5 C3 S12 A51 GOLD SP390 GOLD
(2762-20201116.rfa)
-
3D STP - File - STP
-
P5 C3 S12 A51 GOLD SP390 GOLD
(C3.stp)
