High Level Dual Flush WC

Product Options

WC options

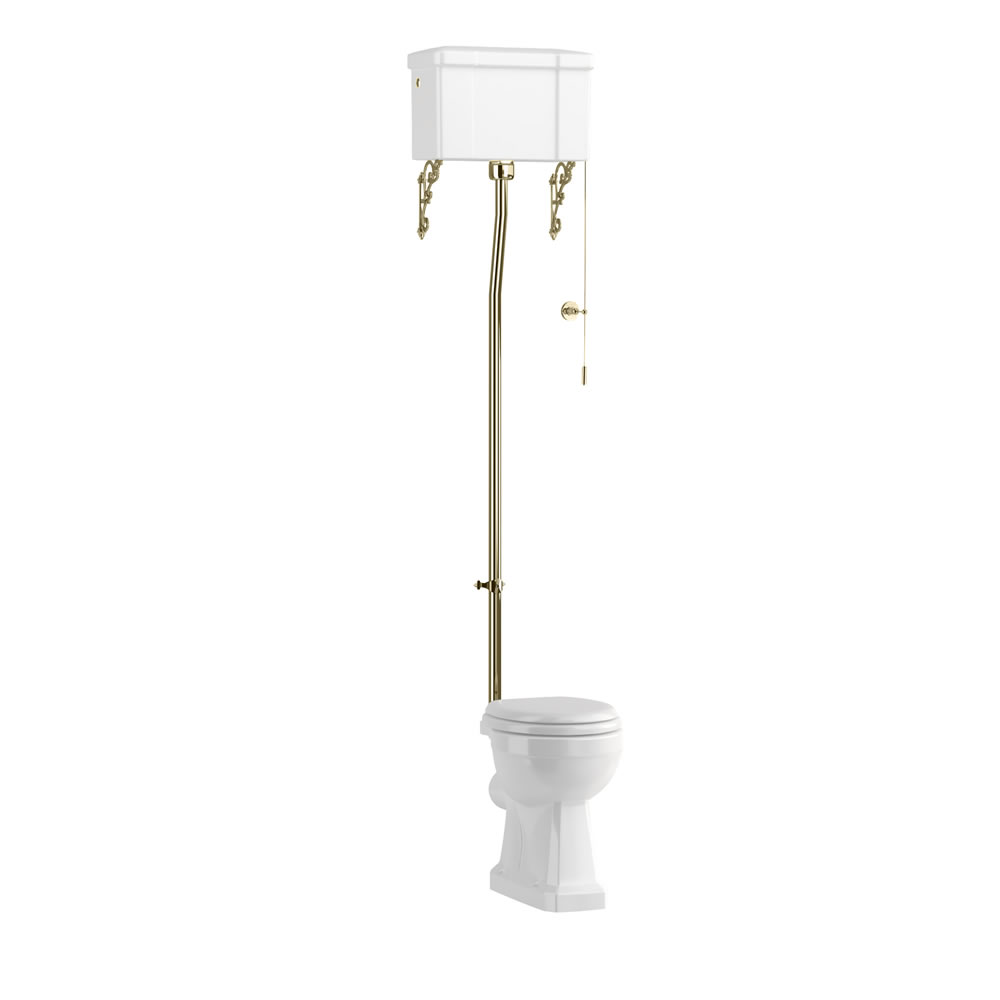

Standard high level WC with dual flush ceramic cistern - GOLD

with rod dual flush 52cm wide cistern C5

flush pipe options

Standard high level WC with dual flush ceramic cistern

Chrome

Nickel

Gold

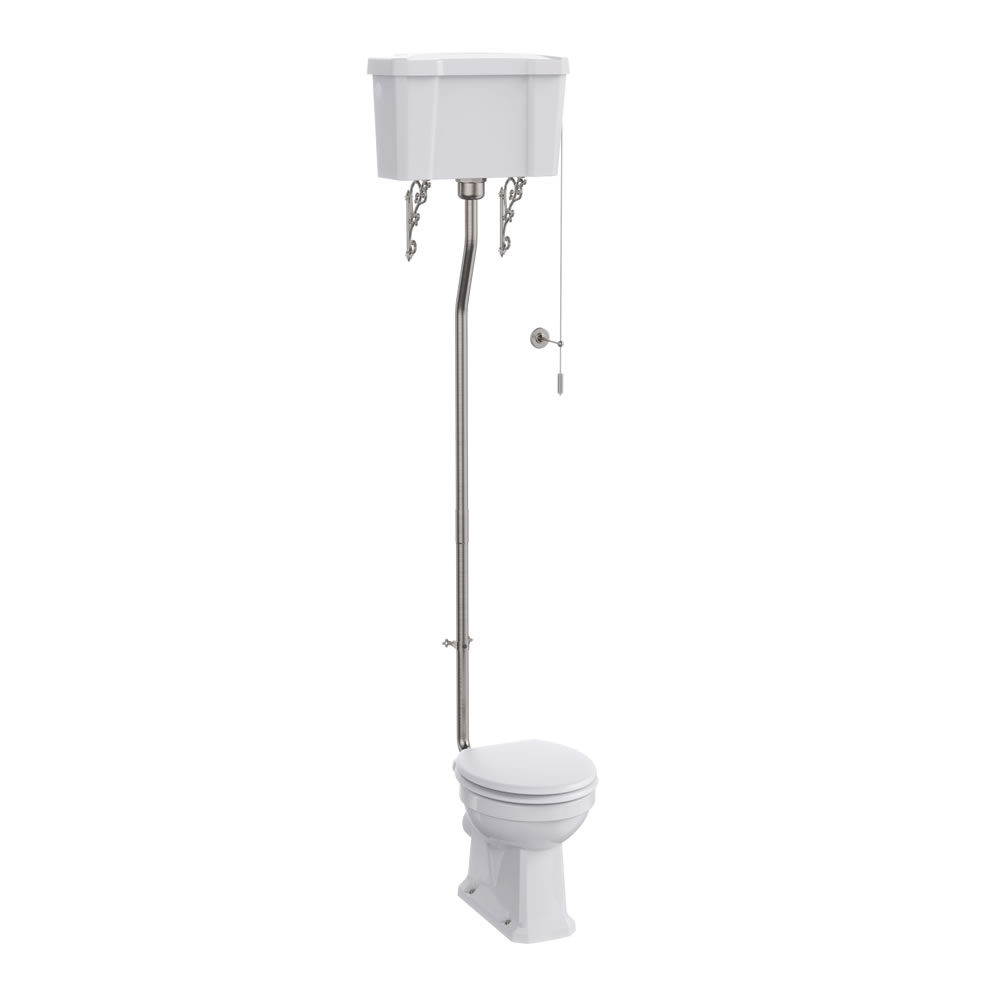

Brushed Nickel

As Shown

C5 High level cistern

P2 Low/high level pan

T30 GOLD High Level Flush Pipe kit including Lever, Rigid pull chain, Flush pipes, reverse screw cistern connector, Stopper and Ornate brackets - GOLD

SP391 GOLD High level dual flush cistern lever for C5 GOLD

S45 Soft close seat

SP387 WC floor fixing plastic plugs and covers - GOLD

SP813 Burlington soft close hinges with screws (pair) - Gold

P2 C5 T30 GOLD - Combined product code

Colour

C5 - cistern - Gloss White

P2 - pan - Gloss White

T30 GOLD - fittings - Polished Gold

SP391 GOLD - - Polished Gold

S45 - seat - Matt White

SP387 - plugs and covers - Polished Gold

SP813 - hinge - Polished Gold

Material

C5 - cistern - Vitreous China

P2 - pan - Vitreous China

T30 GOLD - fittings - Brass

SP391 GOLD - - Zinc Alloy

S45 - seat - Engineered Wood - MDF

SP387 - plugs and covers - ABS

SP813 - hinge - Zinc Alloy

Size

C5 - 205 x 515 x 330mm

P2 - 524 x 360 x 403mm

T30 GOLD - 188 x 35 x 1720mm

SP391 GOLD - 75 x 25 x 90mm

S45 - 432 x 371 x 67mm

SP813 - 72 x 80 x 34mm

Nett Weight

C5 - cistern - 16.2kg

P2 - pan - 17kg

T30 GOLD - fittings - 3.45kg

SP391 GOLD - - 0.1kg

S45 - seat - 3.33kg

SP387 - plugs and covers - 0.004kg

SP813 - hinge - 0.5kg

Gross Weight Including Packaging

C5 - cistern - 17.4kg

P2 - pan - 18.7kg

T30 GOLD - fittings - 4.91kg

SP391 GOLD - - 0.15kg

S45 - seat - 3.58kg

SP387 - plugs and covers - 0.01kg

SP813 - hinge - 0.5kg

Packed Dimension

C5 - 532 x 217 x 370 = 0.0427 m3

P2 - 542 x 372 x 428 = 0.0863 m3

T30 GOLD - 1115 x 385 x 70 = 0.03 m3

SP391 GOLD - 90 x 35 x 105 = 0.0003 m3

S45 - 440 x 373 x 67 = 0.011 m3

SP813 - 245 x 85 x 45 = 0.0009 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 248:2002

BS EN 33:2019

BS EN 14055:2018

BS EN 997:2018

Additional Information

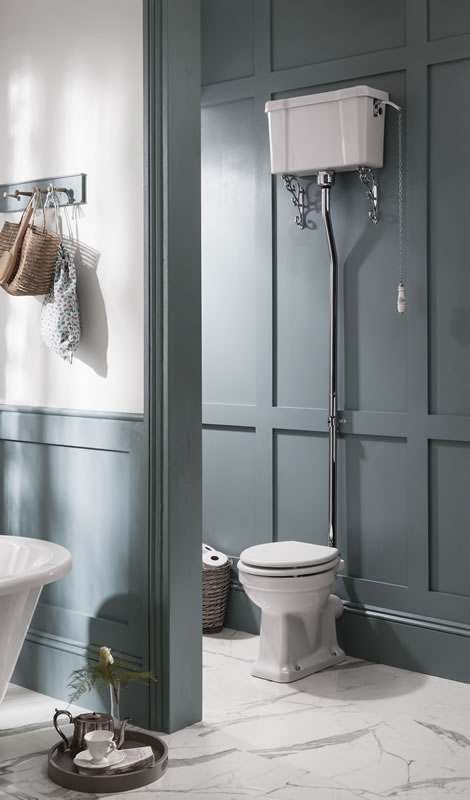

The high level wc uses a standard low level pan and specialed high level cistern, connected with a high level flush pipe kit T30 CHR.

The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28S.

A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR.

High Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

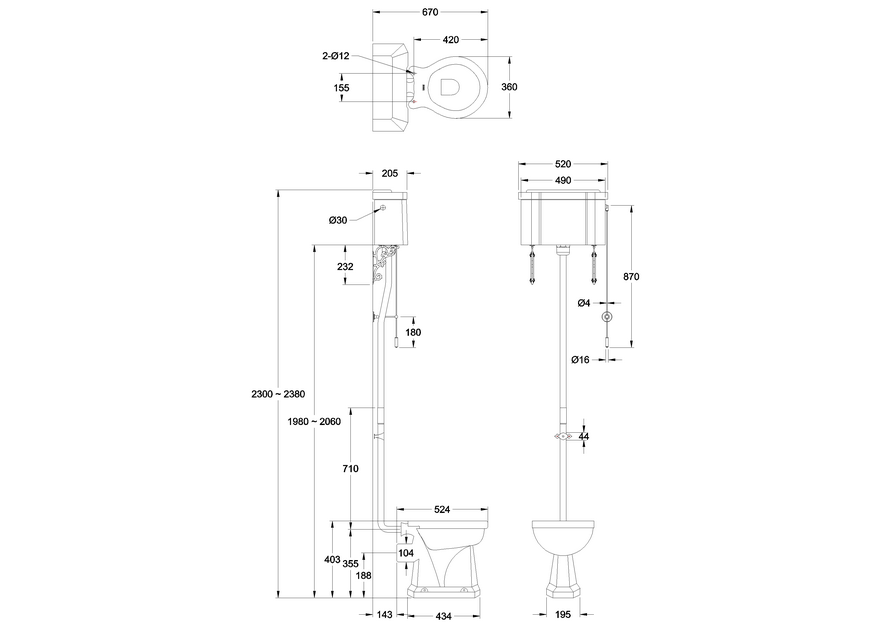

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.

Regal Height pan ( floor to pan rim height 48cm ) available : P16.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

P trap standard height pan - height from floor to pan rim is 40cm.

SP391 GOLD is the high level cistern lever, SP387 is the floor fixing cap and SP813 is the soft close seat hinge for GOLD combination.

Spare parts

SP459	black rubber wedge for all finishes products of T30
SP1353	brass fixing nut for all finishes products of T30, T31, T33, T34
SP1603	buffer Clip for T30 GOLD without black rubber wedge
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP1034	chrome hole stopper of cistern fittings for high level cisterns C5, C5D, T58 ALU, T59 WHI, T60 BLA
SP1599	control bracket for T30 GOLD
SP1601	decorative cover of cistern connection for T30 GOLD
SP7	fittings for High Level Cistern including Cistern Lever
SP97	flush cone for HL cistern
SP1600	handle for high level cistern from T30 GOLD kit
SP13	high Level Cistern Lid for C5
SP1044	high level dual flush valve including the cable, control box and cistern lever for product C5, T58 ALU, T59 WHI, T60 BLA, T70 CHR
SP1604	high Level Rod- GOLD
SP192	hinge fixings for S11, S12, S16, S17 seats
SP384	inlet valve with G1, 2 chromed-Brass shank and nut for High lever cistern fittings (part of SP7)
SP1597	long pull arm for High level cistern from T30 GOLD kit
T32 GOLD	medium Ornate Brackets GOLD (Pair)
SP840	noise reducer for high level cistern fittings
SP1602	pin screw for T30 GOLD
SP918	plastic hole stopper of cistern fittings for high level cisterns
SP17	screw fixing pack for pan and bidet
SP1598	spares for T30 GOLD: screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1
SP802	the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP1605	the bottom section of the H, L flush pipe- GOLD
SP1596	upper flush pipe for T30 GOLD
SP95	washers & plastic fixing nut for flush pipe
SP387	WC floor fixing plastic caps - GOLD
SP864	white buffers for the seat ring & lid for product S45, ARCS45 NKL, S46, RIV.025, S101
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
