60cm Back to Wall WC Unit with Lever Flush cistern fittings

60cm Back to Wall WC Unit with Lever Flush cistern fittings
with standard Burlington back to wall pan
60 Back to Wall WC Unit and back-to-wall pan (including the cistern tank) - Dark Olive
Product Options
Colour options: furniture

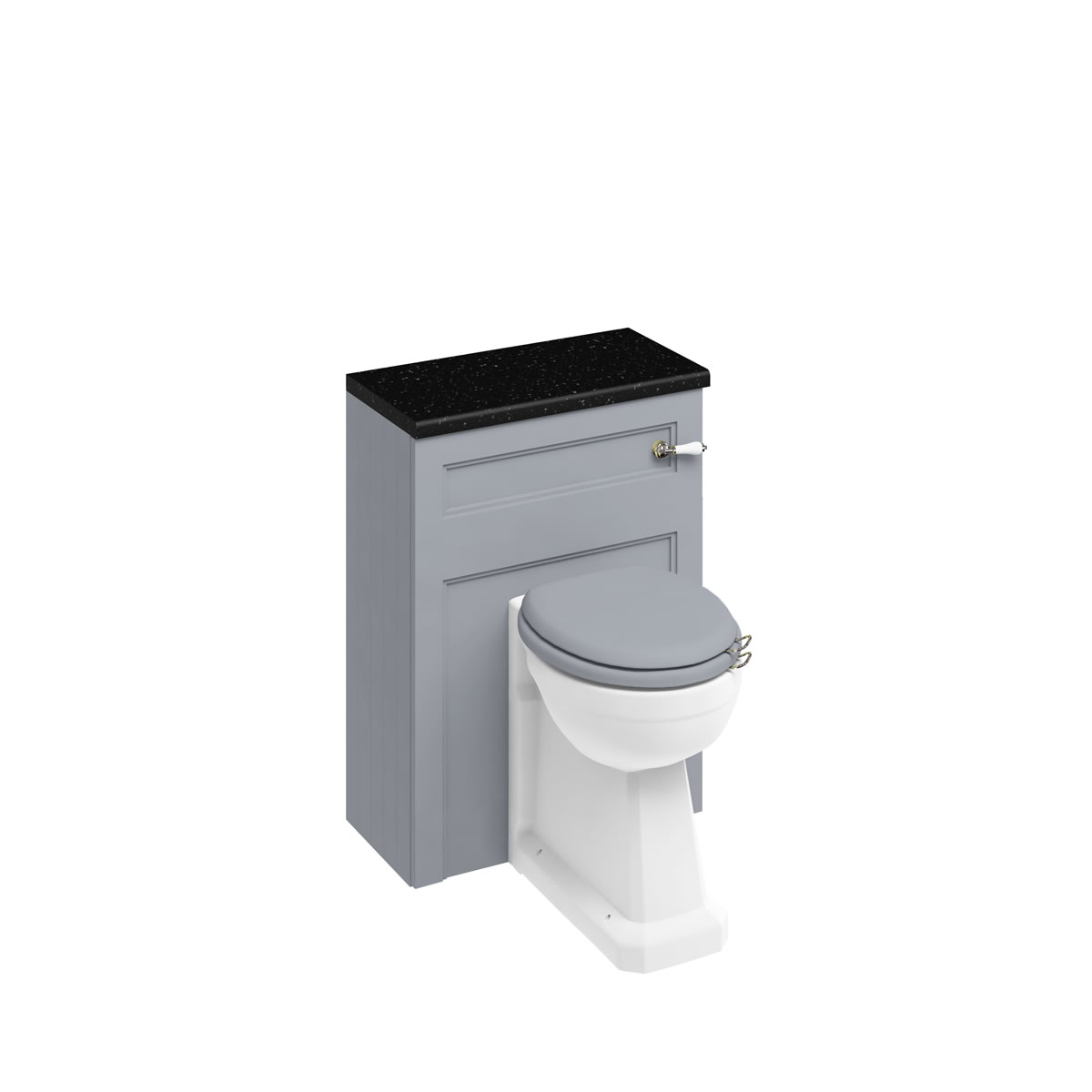

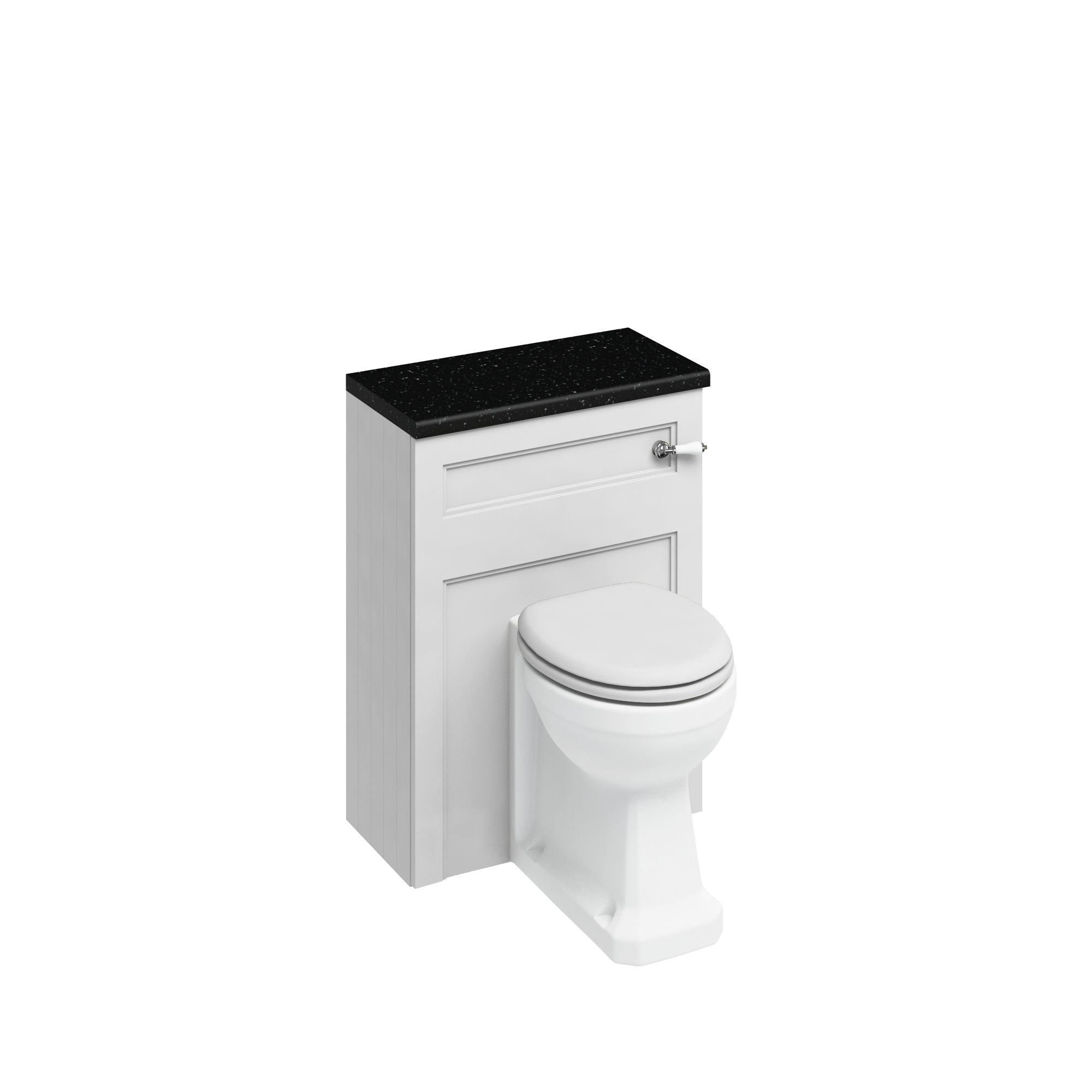

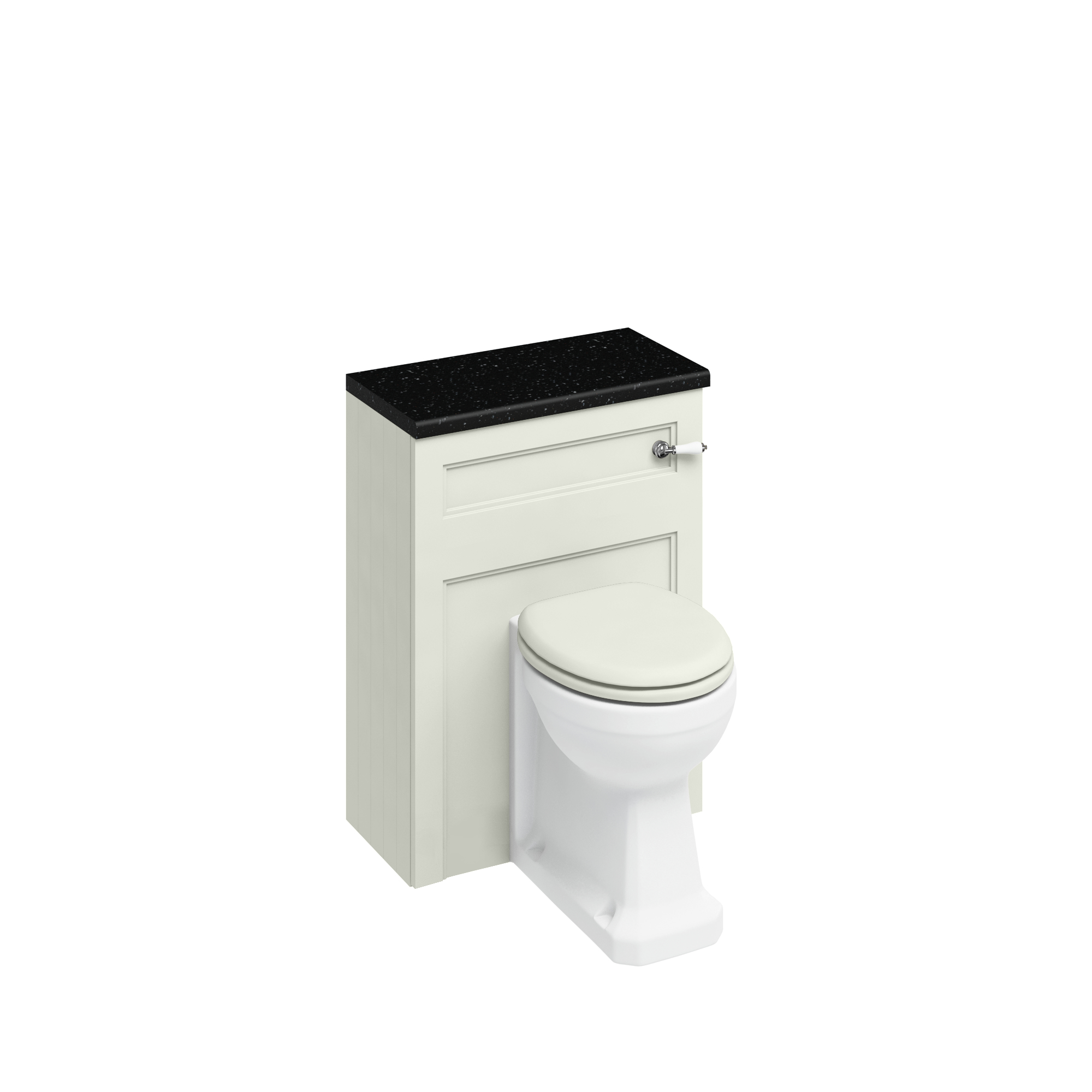

60 Back to Wall WC Unit and back-to-wall pan (including the cistern tank) - Dark Olive Dark Olive 60 Back to Wall WC Unit and back-to-wall pan (including the cistern tank) - Sand Sand 60 Back to Wall WC Unit and back-to-wall pan (including the cistern tank) - Matt White Matt White 60 Back to Wall WC Unit and back-to-wall pan (including the cistern tank) -Classic Grey Classic Grey
Alternate Text
Illustrated
W60O 600 Back to Wall WC Unit
P14 Back to wall pan
Material
P14 - pan - vitreous china
W60G - wc unit - wood
W60O - wc unit - wood
W60S - wc unit - wood
W60W - wc unit - wood
Size
P14 - 475 x 360 x 425mm
W60G - 600 x 300 x 820mm
W60O - 600 x 300 x 820mm
W60S - 600 x 300 x 820mm
W60W - 600 x 300 x 820mm
Nett Weight
P14 - pan - 22.45kg
W60G - wc unit - 18.5kg
W60O - wc unit - 18.5kg
W60S - wc unit - 18.5kg
W60W - wc unit - 18.5kg
Gross Weight Including Packaging
P14 - pan - 24.3kg
W60G - wc unit - 20kg
W60O - wc unit - 20kg
W60S - wc unit - 20kg
W60W - wc unit - 20kg
Packed Dimension
P14 - 525 x 410 x 470 = 0.1012 m3
W60G - 660 x 360 x 880 = 0.2091 m3
W60O - 660 x 360 x 880 = 0.2091 m3
W60S - 660 x 360 x 880 = 0.2091 m3
W60W - 660 x 360 x 880 = 0.2091 m3
Colour
P14 - pan - white
W60G - wc unit - classic grey
W60O - wc unit - dark olive
W60S - wc unit - sand
W60W - wc unit - matt white
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
Cabinet to EN14749:2005; WC to EN33-2011
Additional Information
Work top is sold separately
A lacquered top coat with 5 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight
Full and half dual flush system
Removable front access panel
Rigid solid carcass - not flat pack
Work top required
Please ensure that the chosen WC pan is tall enough to cover the cut out
Full and half dual flush system with lever handles
Removable front access panel fitted with magnetic clips
Compatible Products
P14 -    Back-to-wall pan
W33A - steel frame
P10 -    Wall-hung pan
W33A - steel frame
P15 -    Regal back-to-wall pan
W33A - steel frame
BW305 -    120cm Minerva worktop - white
W33A - steel frame
BB66 -    120cm Minerva worktop - black granite
W33A - steel frame
BC66 -    120cm Minerva worktop - carrara white
W33A - steel frame
Spare parts (below shows available spare parts for this product)
SP966 adjustable leg sets of Burlington furniture F3TW, F3TO, F3TS, F60W, F60O, F60S, F6BW, F6BO, F6BS, W60W, W60O, W60S
SP303 fascia panel magnets for W31, W32, W60, CM6 (one set of 2 pieces)
SP645 flush valve with control cable for F6CC (excluding lever and inlet valve)
SPW60FP-O front panel for W60O
SP967 one set of fixing screws & plugs of Burlington furniture F3TW, F3TO, F3TS, F60W, F60O, F60S, F6BW, F6BO, F6BS, W60W, W60O, W60S, F6WW, F6WO, F6WS, F6MW, F6MO, F6MS
SP17 screw fixing pack for pan and bidet
SPW60TF-O top fascia for W60O
SPW60TF-O-WC top fascia for W60O without cutout
Downloads
Instructions - PDF - W60O (English)
Alternate Text Instructions - PDF - W60O (French)
2D CAD-File - DWG - W60O_P15
3D DWG - File - DWG  -  W60O_P15 Alternate Text
3D DXF - File - DXF  -  W60O_P15 Alternate Text
3D IGS - File - IGS  -  W60O_P15 Alternate Text

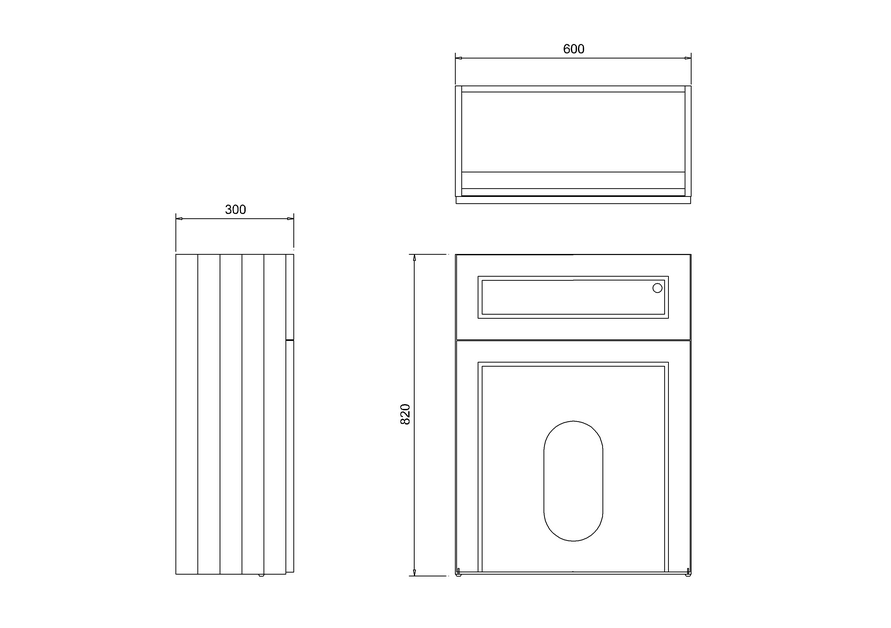

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
