30cm Tall Two Door base unit
Product Options
Colour options: furniture
|
Dark Olive
|

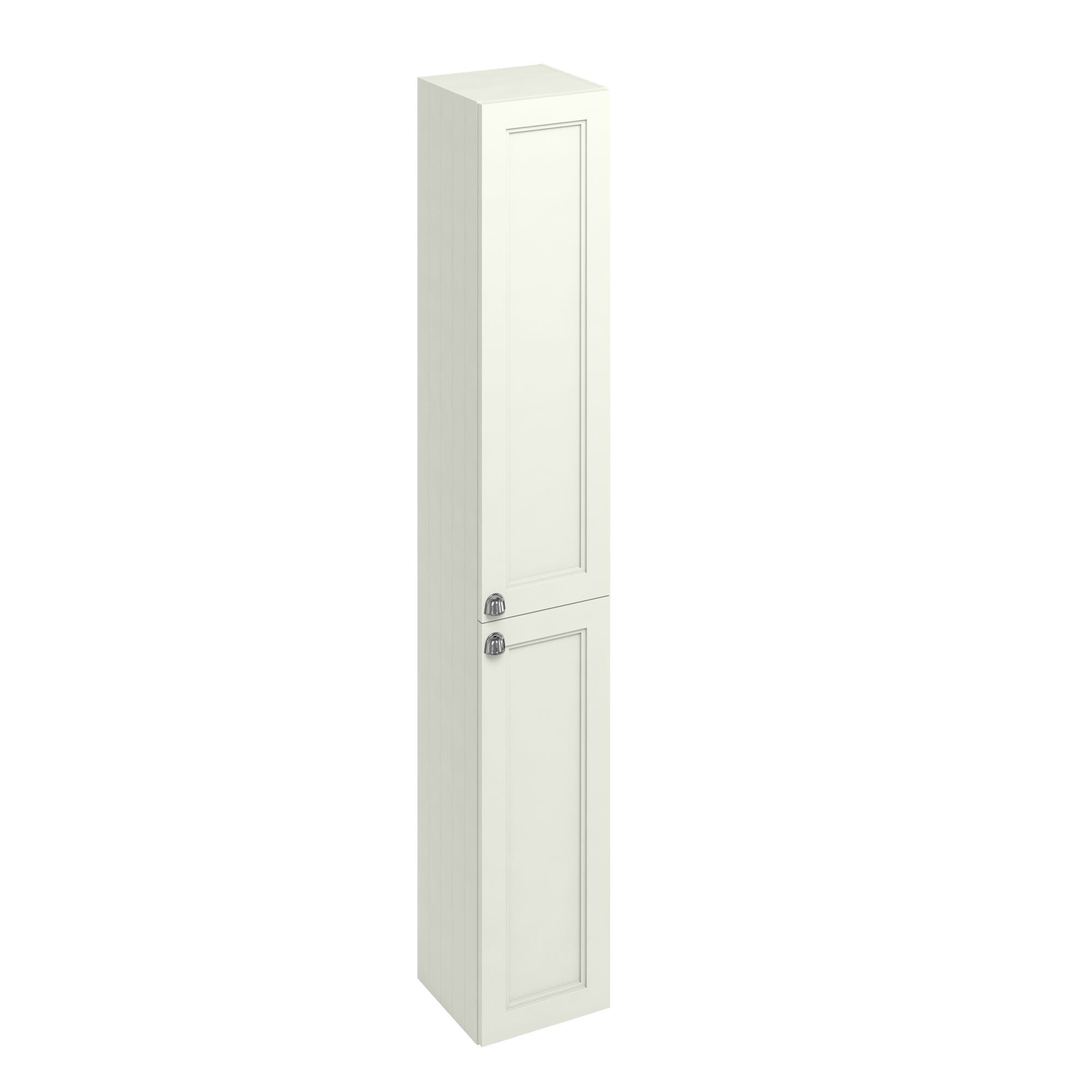

Sand
|

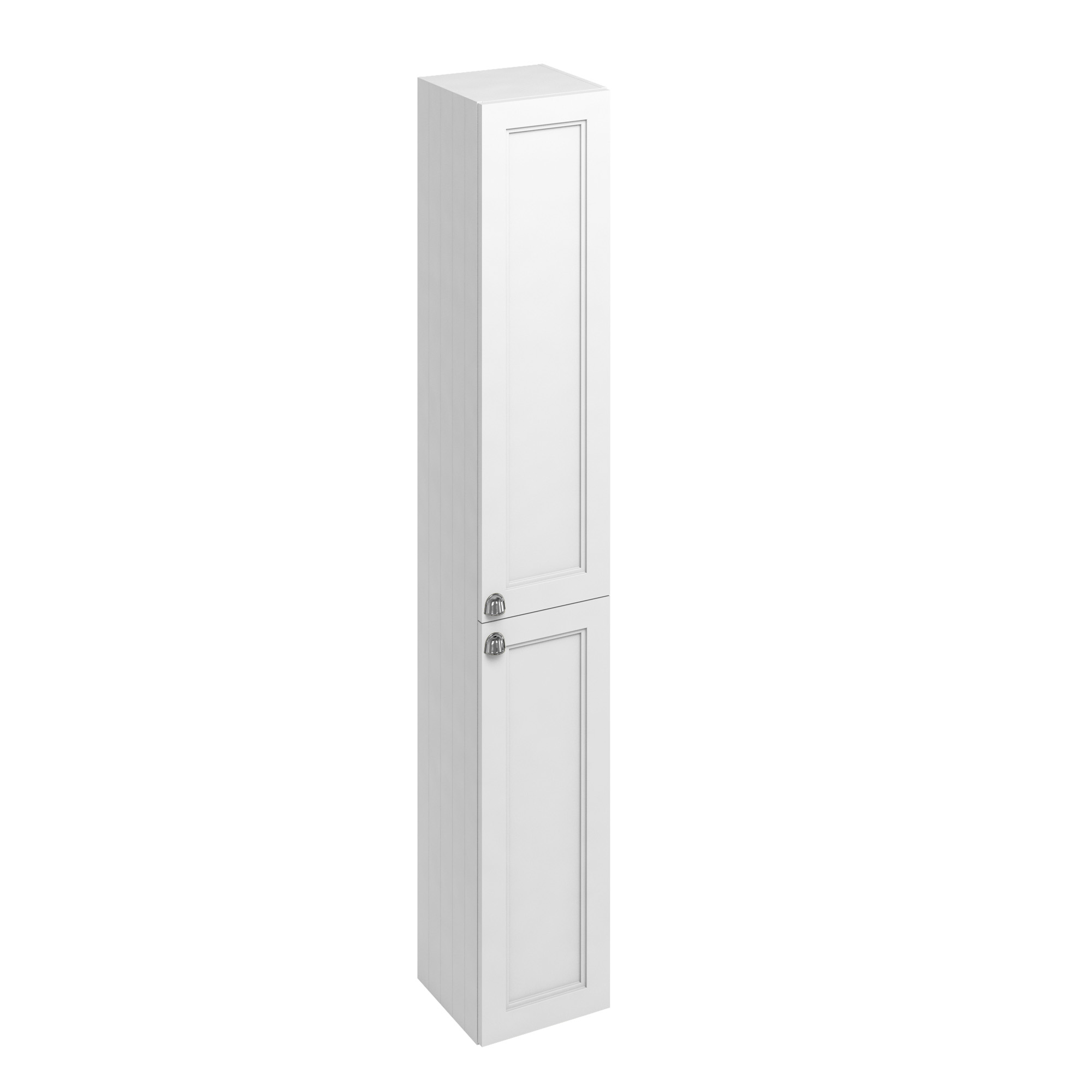

Matt White
|

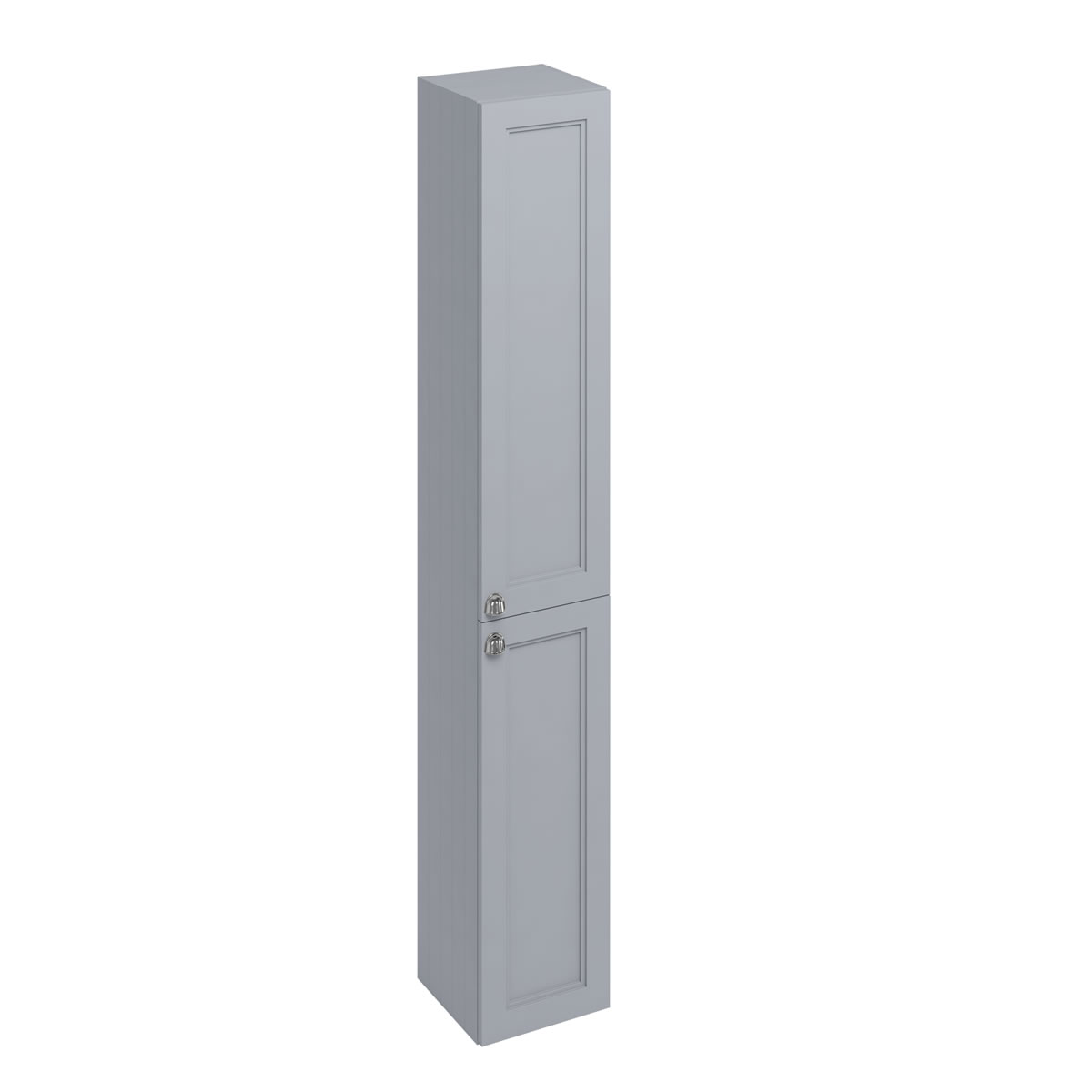

Classic Grey
|
As Shown
| F3TO 300 Double Door Tall Unit |
Colour
| F3TO - cabinet - dark olive |
Material
| F3TO - cabinet - |
Nett Weight
| F3TO - cabinet - 26kg |
Gross Weight Including Packaging
| F3TO - cabinet - 28kg |
Packed Dimension
| F3TO - 360 x 360 x 1965 = 0.2547 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Soft close doors |
|
5mm safety glass shelves |
|
Door can be opened left or right |
|
Rigid solid carcass - not flat pack |
| SP966 | adjustable feet for Burlington fitted furniture – one pair |
| SP1040 | bottom panel with fixings for product F3TO |
| SPF60DP-O | door panel for F60O, F30O, F3TO |
| SPF30GS | glass shelf for F30, F3T |
| SP673 | hinges for the straight panel of F30, F3W, F3M, F3T, F6M, F6W, F60, F6B (1x soft close, 1x non-soft close) |
| SP1348 | one piece of soft close hinge for Aqua straight panel |
| SP967 | one set of fixing screws & plugs of Burlington furniture F3TW, F3TO, F3TS, F60W, F60O, F60S, F6BW, F6BO, F6BS, W60W, W60O, W60S, F6WW, F6WO, F6WS, F6MW, F6MO, F6MS |
| SPF3TTF-O | top panel for F3TO |
Downloads
-
2D CAD-File - DWG -
F3TO
(F3T.dwg)
-

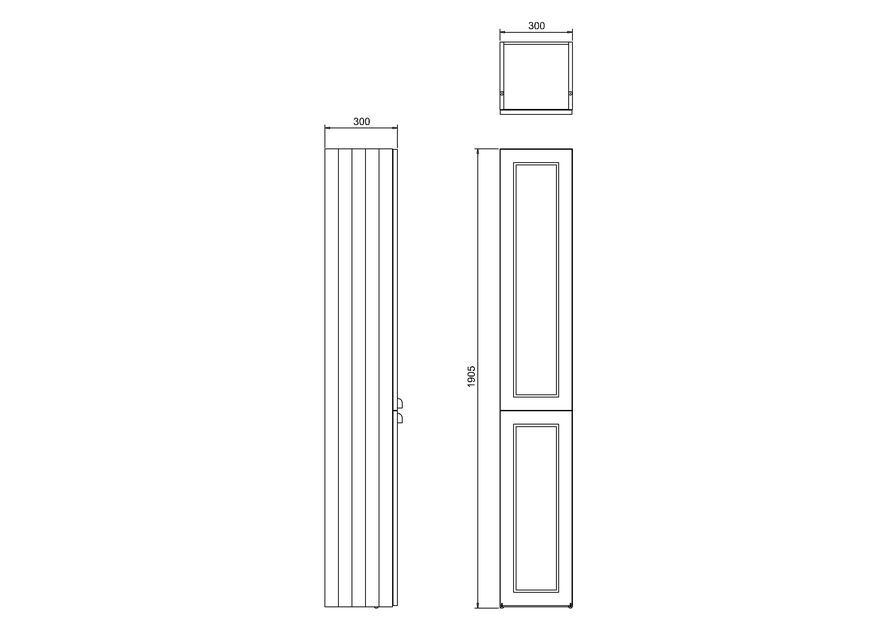

2D Drawing - PDF -
F3TO
(F3T.pdf)
2D Drawing - PDF - F3TO
-
3D DWG - File - DWG
-
F3TO
(F3T_1.dwg)
-
3D DXF - File - DXF
-
F3TO
(F3T_1.dxf)
-
3D IGS - File - IGS
-
F3TO
(F3T_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
F3TO
(F3T_1.rfa)
