Trent Thermostatic single function brass valve
with slide rail including the elbow, hose and handset with ceramic handle
Illustrated

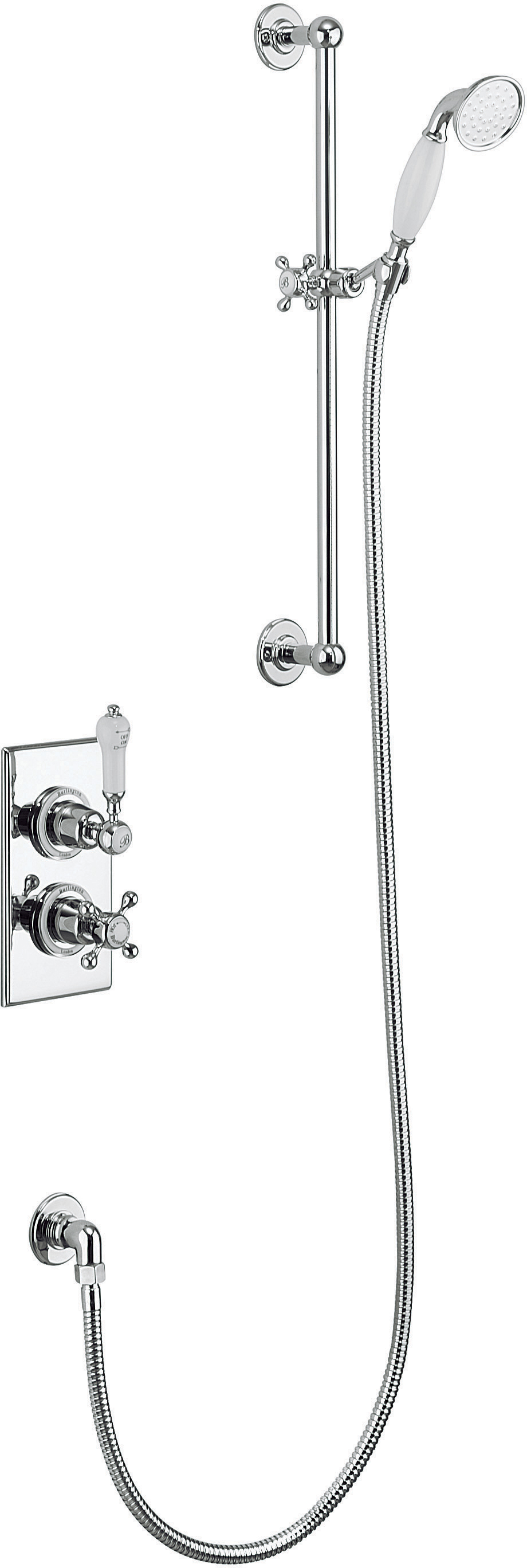

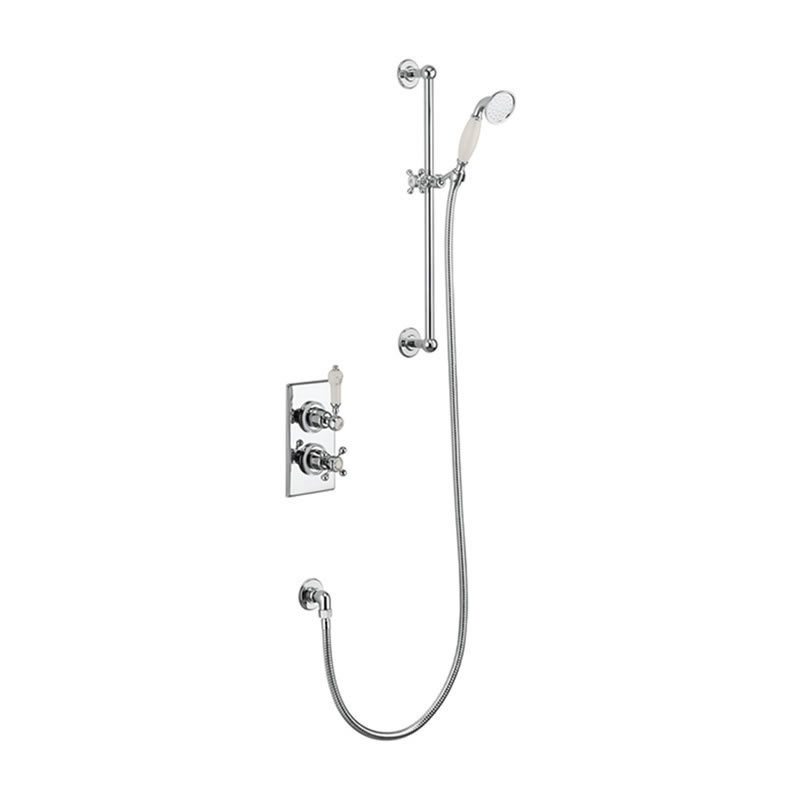

TF1H Trent Thermostatic Single Outlet Concealed Shower Valve with Rail, Hose and Handset
Gross Weight Including Packaging
ME28 - valve - 0.25kg
TF1H - valve - 6.5kg
Guarantee*
10 years domestic installations
1 year commercial installations
Additional Information
Traditional brass faceplate, Claremont handle with ceramic lever.
Slide rail including the elbow, hose and handset with ceramic handle.
The shower head has anti-limescale silicon nipples.
The length of the shower hose is 1.5m
Large bore shower hose (11mm)
Hot & cold inlet 3/4 female thread
Compatible Products
V2 -    Anglesey Valve Handle (single)
V3 -    Birkenhead Valve Handle (single)
V23 -    Soap basket
V24 -    Cradle
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Handset 2.71  4.23  6.01  8.23  10.18  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP723 cartridge cap for TF1S, TF2S, TF3S, TF1H, VF1S, VF3S
SP1209 ceramic handle for Burlington telephone handset
V10-1 ceramic lever for shower valve (single)
V10-2 ceramic levers for Avon & Clyde dual control valves (pair)
SP52 ceramic part of lever for Burlington showering products (plain version, without any texts)
SP614 ceramic ring for Trent, Severn, Spey
V29 ceramic telephone handset
V38 ceramic telephone handset kit (including telephone handset, hose and 1, 2)
SP873 chrome bevel and threaded part of Burlington & Arcade valve handles
V1 claremont valve handle 1 (single)
SP596 claremont valve handle for all valves, (except Stour)
SP608 face plate for TF1S, TF1H, TF2S
SP599 grub screw (M4x4)
SP984 handset holder of slide rail for product V12, V33, TF1H
SP313 hent F3 flow control cartridge
V26 hose
SP842 inlet filter of product V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64, ARC73, ARC64 CHR, ARC73 CHR
SP751 lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S
V30 outlet elbow 1, 2
SP959 retaining nut of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC73 CHR, ARC64, ARC64 CHR
SP815 retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
V18 shower hook (for wall mounting of telephone shower head)
SP1128 the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP592 top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP314 VQT1 temperature control cartridge
SP929 wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
SP1377 wall plate sets for ARC64 CHR, TF1H, TF1H BLA, V33, V12
Downloads
Instructions - PDF - TF1H (English)
Alternate Text Instructions - PDF - TF1H (French)

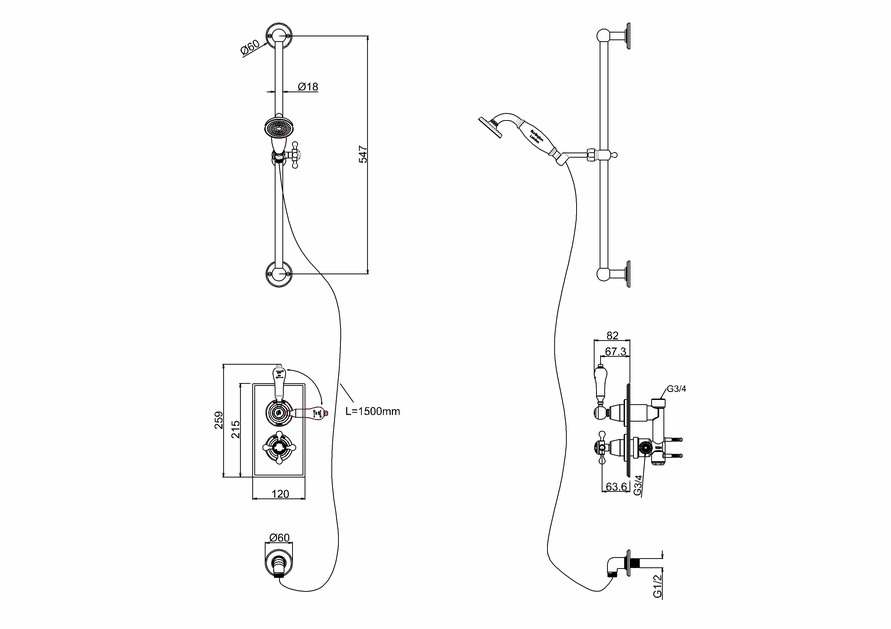

2D CAD-File - DWG - TF1H
3D DWG - File - DWG  -  TF1H Alternate Text
3D DXF - File - DXF  -  TF1H Alternate Text
3D IGS - File - IGS  -  TF1H Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
