Trent Thermostatic dual function brass valve
with 2 independent on/off controls and central temperature control
Product Options
shower head options
6_shower_head_wb.jpg 6 inch Trent Thermostatic Two Outlet Concealed Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose 9 inch Trent Thermostatic Two Outlet Concealed Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 12 inch rose 12 inch
Alternate Text
Illustrated
TF3S Trent Thermostatic Two Outlet Concealed Shower Valve , Fixed Shower Arm, Handset & Holder with Hose
V16 6 inch shower rose
TF3S+V16  -  Combined product code
Guarantee*
10 years domestic installations
1 year commercial installations
Additional Information
Traditional brass faceplate, Claremont handle, with ceramic levers
Wall outlet, and 1500mm shower hose
Adjustable wall bracket, and handset with ceramic handle
390mm adjustable fixed shower arm

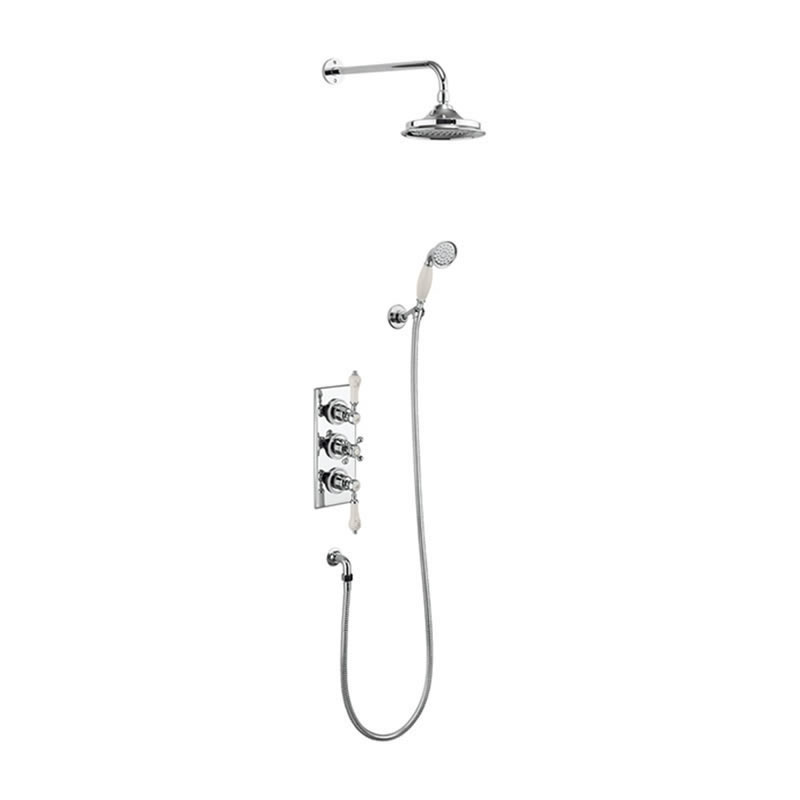

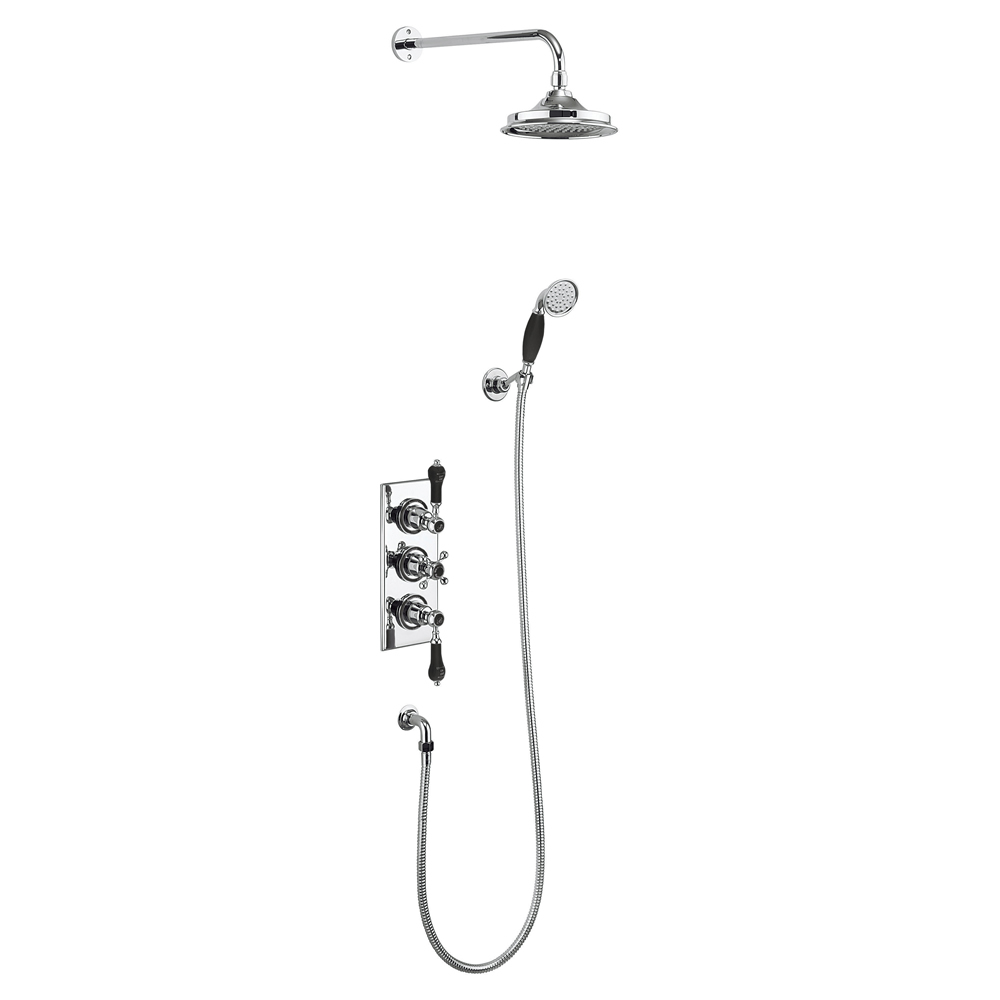

Image shown is with 6" Airburst shower head. (as shown on image)
The shower head has anti-limescale silicon nipples.
The length of the shower hose is 1.5m
Large bore shower hose (11mm)
Hot & cold inlet 3/4 female thread
Compatible Products
V33 -    Slide rail
V2 -    Anglesey Valve Handle (single)
V3 -    Birkenhead Valve Handle (single)
V23 -    Soap basket
V24 -    Cradle
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
12 inch rose 4.78  6.74  8.7  13.78  16.88  n/a  n/a
12 inch rose & handset 5.6  6.18  10.85  16.37  20.35  n/a  n/a
6 inch rose 4.04  4.14  7.45  11.24  13.5  n/a  n/a
6 inch rose & handset 5.21  6.07  10.11  16.1  19.42  n/a  n/a
9 inch rose 3.61  4.07  5.12  6.91  8.96  n/a  n/a
9 inch rose & handset 4.91  6.04  9.7  15.1  19.03  n/a  n/a
Handset 3.62  5.14  8.29  12.12  15.17  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP1224 allen key for TF3S
SP593 bottom lever (including thread) for two outlets valves (on, off indices)
SP723 cartridge cap for TF1S, TF2S, TF3S, TF1H, VF1S, VF3S
SP163 ceramic B indices with Chrome for V34 and V36
SP1209 ceramic handle for Burlington telephone handset
V10-2 ceramic levers for Avon & Clyde dual control valves (pair)
SP52 ceramic part of lever for Burlington showering products (plain version, without any texts)
SP614 ceramic ring for Trent, Severn, Spey
V29 ceramic telephone handset
SP873 chrome bevel and threaded part of Burlington & Arcade valve handles
SP164 chrome linking splines and chrome for V34 & V36
V1 claremont valve handle 1 (single)
SP596 claremont valve handle for all valves, (except Stour)
SP610 face plate for TF3S
SP478 filter & washer for shower roses
SP599 grub screw (M4x4)
SP315 hent F2 flow control cartridge
SP313 hent F3 flow control cartridge
V26 hose
SP842 inlet filter of product V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64, ARC73, ARC64 CHR, ARC73 CHR
SP751 lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S
SP726 metal block for Trent, Severn, Eden, Spey shower valves
V30 outlet elbow 1, 2
SP959 retaining nut of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC73 CHR, ARC64, ARC64 CHR
SP815 retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
SP1240 screw for TF3S
V18 shower hook (for wall mounting of telephone shower head)
SP592 top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP33 V36 bottom On, Off Cartridge 3, 4
SP314 VQT1 temperature control cartridge
Downloads
Instructions - PDF - V16 (English)
Instructions - PDF - TF3S (English)
Alternate Text Instructions - PDF - V60 (French)
Alternate Text Instructions - PDF - TF3S (French)
2D CAD-File - DWG - TF3S-V16
3D DWG - File - DWG  -  TF3S-V16 Alternate Text
3D DXF - File - DXF  -  TF3S-V16 Alternate Text
3D IGS - File - IGS  -  TF3S-V16 Alternate Text

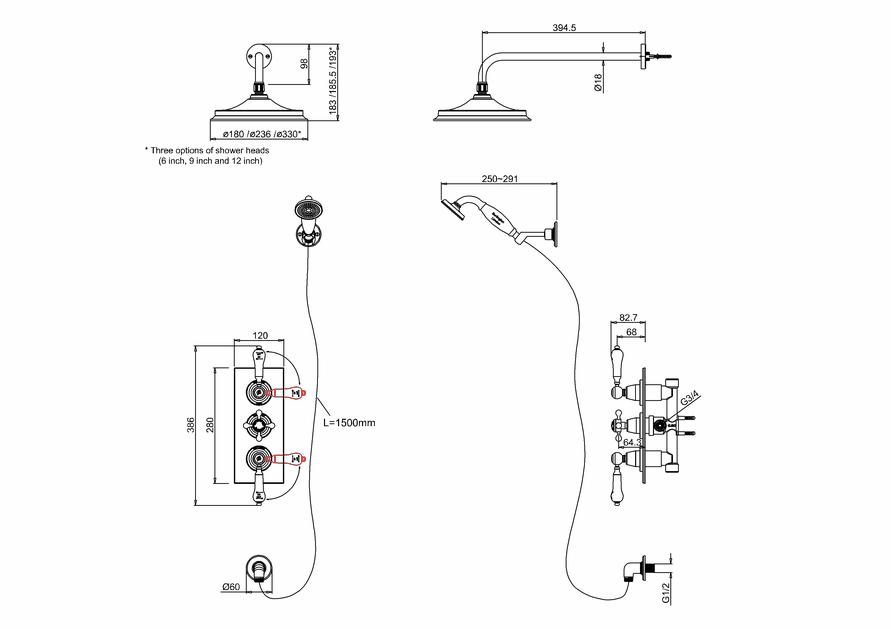

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
