Stour Exposed Thermostatic single function brass valve
asaq2.Model.Web_product_new?.web_name
Product Options
shower head options
6_shower_head_wb.jpg 6 inch Stour Thermostatic Exposed Shower Valve Single Outlet with  Fixed Shower Arm with 9 inch rose 9 inch Stour Thermostatic Exposed Shower Valve Single Outlet with  Fixed Shower Arm with 12 inch rose 12 inch
Alternate Text
As Shown

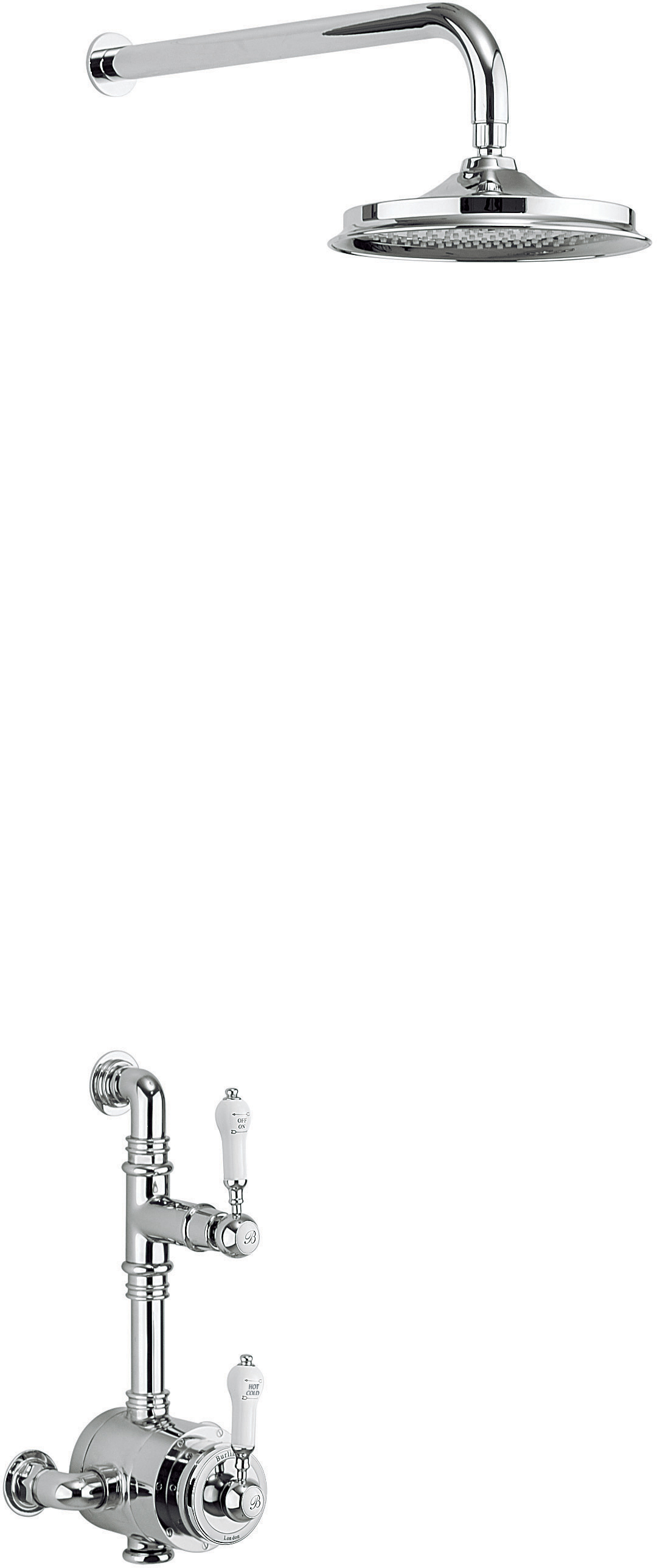

BF1S Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm
V16 6 inch shower rose
BF1S+V16  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
Additional Information

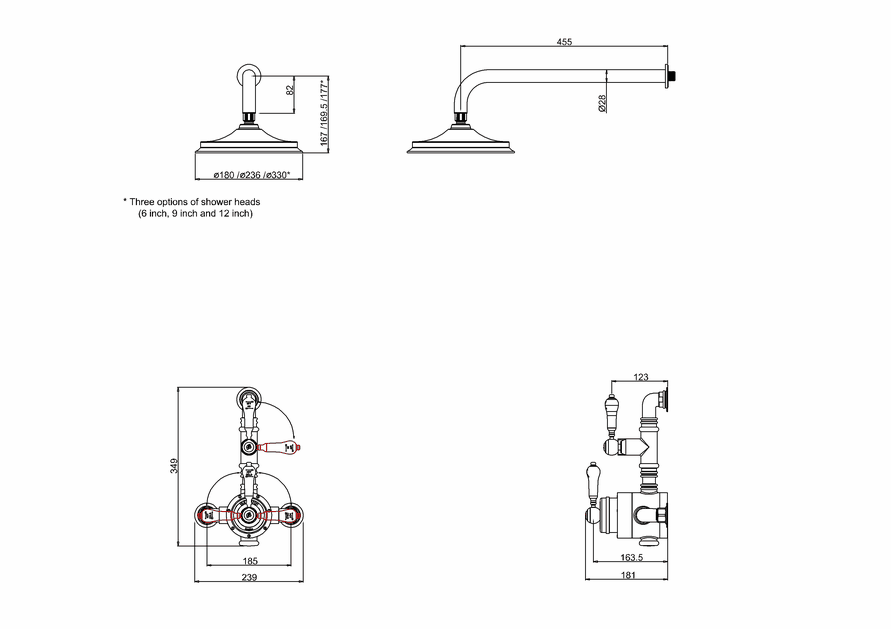

shower arm: 28mm diameter pipe, 450mm length with swivel joint
Traditional brass body, ceramic handle, with ceramic levers
Image shown is with 6" Airburst shower head. (as shown on image)
The shower head has anti-limescale silicon nipples.
Hot & cold inlet ∅22mm
Compatible Products
V2 -    Anglesey Valve Handle (single)
V3 -    Birkenhead Valve Handle (single)
V23 -    Soap basket
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
12 inch rose 4.23  7.62  10.27  15.7  19.1  n/a  n/a
6 inch rose 4.05  6.39  8.27  11.55  14.46  n/a  n/a
9 inch rose 3.64  4.15  10.46  13.04  n/a  n/a
SP375 adaptor (pair) G3, 4 male thread to 22mm pipe
SP720 adaptor(pair) G 1, 2 male thread to 22mm
SP424 ball head screw for V4, TD4, TD2, TD3, BF1S, BF2S, BF3S
V10-1 ceramic lever for shower valve (single)
SP108 ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP700 check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S
V1 claremont valve handle 1 (single)
SP702 cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S
SP554 fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S
SP1118 flow control, decorative head and screw for BF1S
SP1248 gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S
SP599 grub screw (M4x4)
SP604 grub screw for BF1S, BF2S, BF3S (M5x8)
SP37 hent F5 flow control cartridge
SP913 metal block of product BF1S, BF2S, BF3S
SP814 outlet elbow of product BF1S
SP1015A pair of hot and cold inlet elbows for product BF1S, BF2S, BF3S
SP1385 retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S
SP834 spare parts of outlet for product BF1S
SP1368 stop ring for BF2S, BF1S, BF3S
SP1875 stour retaining ring for BF1S, BF3S
SP719 straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S
SP1128 the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP594 thermostatic lever for Stour valves (including thread), hot, code indices
SP899 top flow control of product BF1S, BF2S, BF3S
SP592 top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP32 vernet T1 temperature control cartridge
SP597 wall mounted straight showering arm for Stour
