Stour Exposed Thermostatic dual function brass valve
Product Options
shower head options
6 inch
|
9 inch
|
12 inch
|

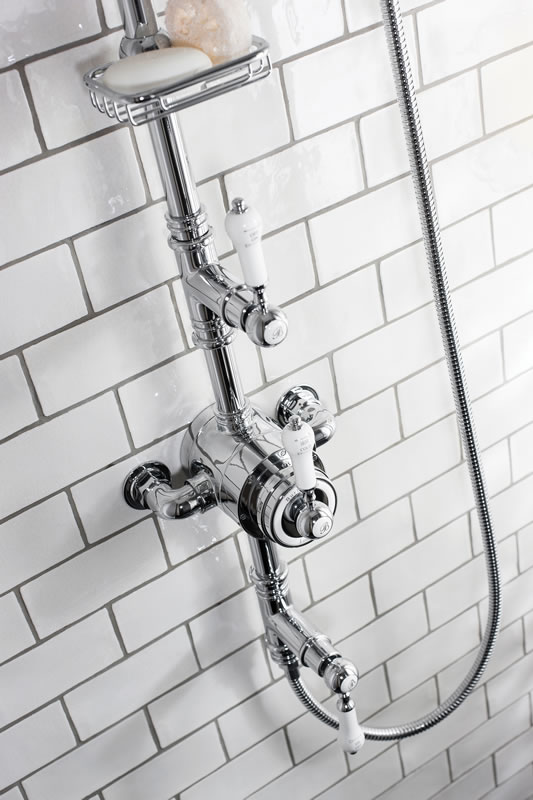

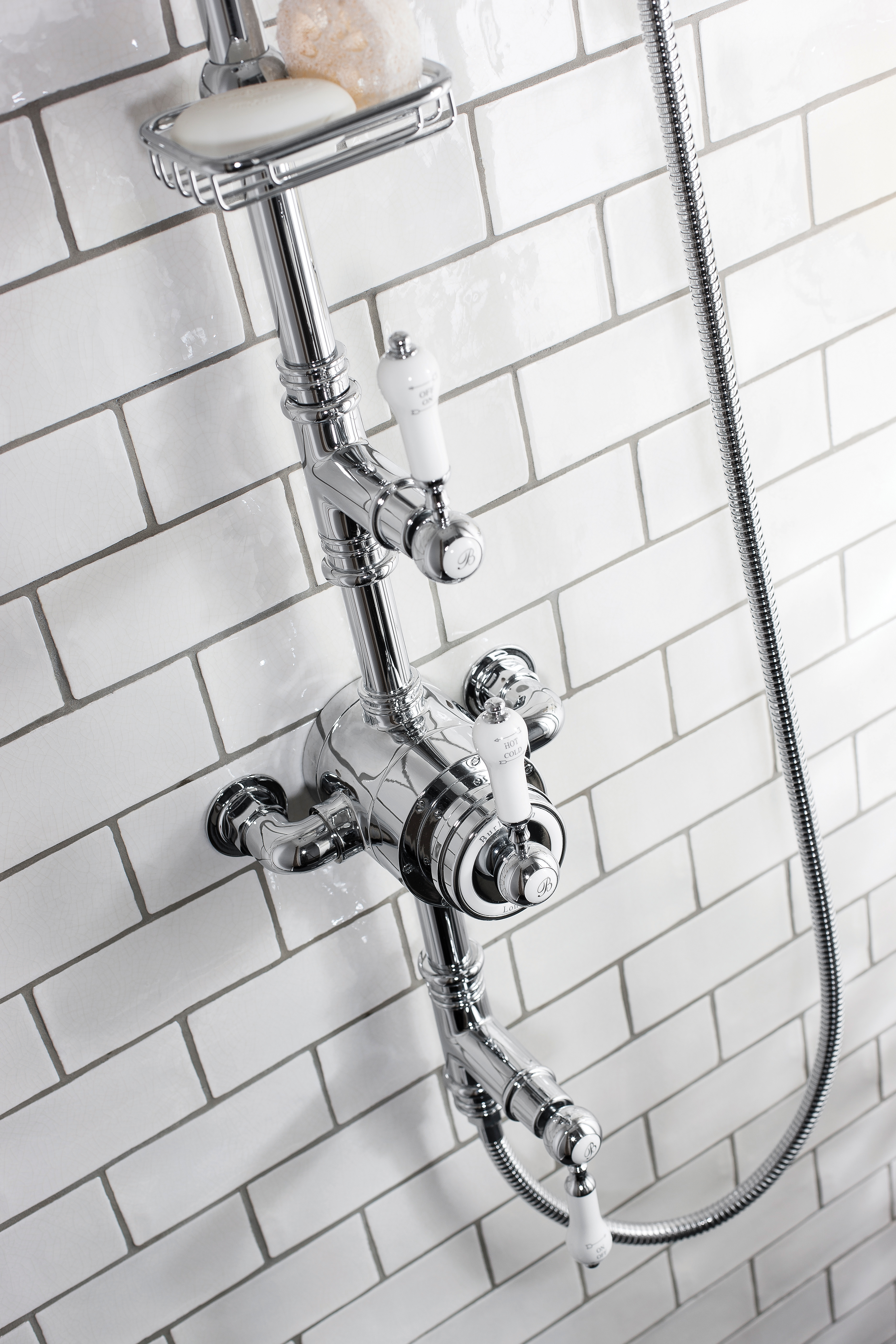

As Shown
| BF3S Stour Thermostatic Exposed Shower Valve Two Outlet, Rigid Riser, Fixed Shower Arm, Handset & Holder with Hose & Soap Basket |
| V16 6 inch shower rose |
| BF3S+V16 - Combined product code |
Nett Weight
| BF3S - valve - 11.1kg |
| V16 - shower rose - 0.34kg |
Gross Weight Including Packaging
| BF3S - valve - 11.62kg |
| V16 - shower rose - 0.58kg |
Packed Dimension
| BF3S - 775 x 415 x 200 = 0.0643 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass body, ceramic handle, with ceramic levers |
|
Fixed cradle, 1500mm shower hose, and handset with ceramic handle |
|
28mm diameter vertical brass shower riser |
|
450mm adjustable fixed shower arm |
|
Soap basket |
|
Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet ∅22mm |
|
Large bore shower hose (11mm) |
Compatible Products
| V2 - Anglesey Valve Handle (single) |
| V3 - Birkenhead Valve Handle (single) |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.27 | 4.91 | 9.6 | 15.62 | 19.89 | n/a | n/a |
| 12 inch rose & handset | 6.24 | 8.62 | 15.46 | 23.35 | 28.95 | n/a | n/a |
| 6 inch rose | 4.05 | 6.39 | 8.27 | 11.55 | 14.46 | n/a | n/a |
| 6 inch rose & handset | 7.08 | 9.17 | 14.58 | 22.5 | 28.11 | n/a | n/a |
| 9 inch rose | 3.64 | 4.15 | 7 | 10.46 | 13.04 | n/a | n/a |
| 9 inch rose & handset | 6.86 | 8.34 | 14.18 | 21.93 | 26.5 | n/a | n/a |
| Handset | 4.45 | 6.53 | 9.97 | 15.04 | 18.79 | n/a | n/a |
| SP375 | adaptor (pair) G3, 4 male thread to 22mm pipe |
| SP720 | adaptor(pair) G 1, 2 male thread to 22mm |
| SP424 | ball head screw for V4, TD4, TD2, TD3, BF1S, BF2S, BF3S |
| SP593 | bottom lever (including thread) for two outlets valves (on, off indices) |
| SP1167 | bottom section for BF3S |
| V29 | burlington Ceramic telephone handset |
| V26 | burlington Shower hose 1500mm |
| SP1209 | ceramic handle for Burlington telephone handset |
| V10-2 | ceramic levers for Avon & Clyde dual control valves (pair) |
| SP108 | ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4 |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| V1 | claremont valve handle 1 (single) |
| SP1324 | connection tube for BF3S, BF2S |
| SP702 | cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S |
| SP554 | fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S |
| SP1117 | flow control, decorative head and screw for BF2S, BF3S |
| SP1286 | gear sleeve for stop valve for BF2S, BF3S |
| SP599 | grub screw (M4x4) |
| SP604 | grub screw for BF1S, BF2S, BF3S (M5x8) |
| SP612 | handset cradle for Stour (including grub screw) |
| SP581 | hent F7 flow control cartridge |
| SP582 | hent F8 flow control cartridge |
| SP913 | metal block of product BF1S, BF2S, BF3S |
| SP1015A | pair of hot and cold inlet elbows for product BF1S, BF2S, BF3S |
| SP1385 | retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S |
| SP920 | riser of product BF2S, BF3S (including the washer and O ring) |
| SP598 | riser rail mounted straight showering arm (including grub screw) for Stour |
| SP1223 | screw for BF3S |
| V18 | shower hook (for wall mounting of telephone shower head) |
| SP1313 | shower rail bracket for BF3S, BF2S |
| SP613 | soap basket for Stour (including grub screw) |
| SP1368 | stop ring for BF2S, BF1S, BF3S |
| SP1875 | stour retaining ring for BF1S, BF3S |
| SP719 | straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP594 | thermostatic lever for Stour valves (including thread), hot, code indices |
| SP899 | top flow control of product BF1S, BF2S, BF3S |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP32 | vernet T1 temperature control cartridge |
Downloads
- Instructions - PDF - BF3S (English)
- Instructions - PDF - V16 (English)
- Instructions - PDF - BF3S (French)
- 2D CAD-File - DWG - BF3S+V16 (BF3S-V16 17 60_LD.dwg)
-

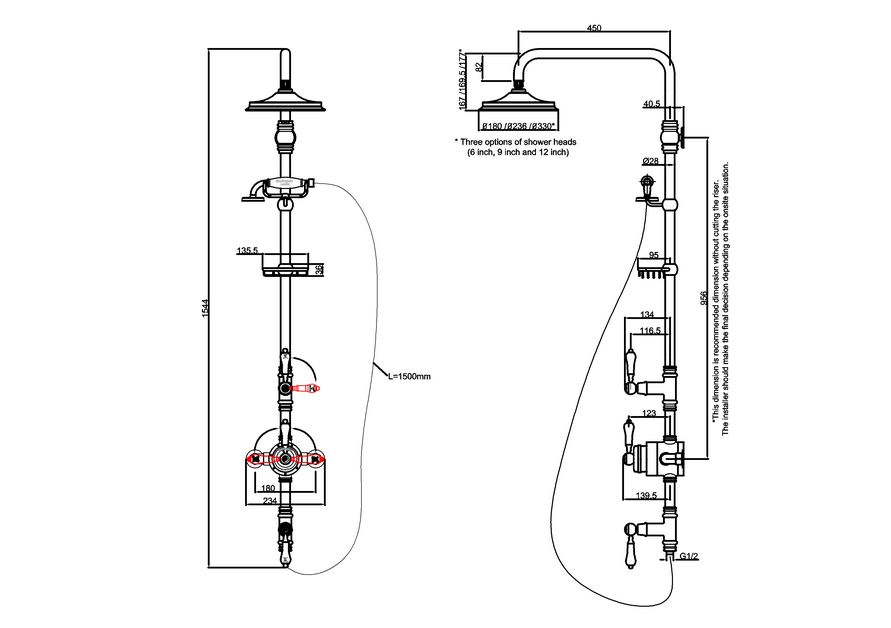

2D Drawing - PDF -
BF3S+V16
(BF3S-V16 17 60_LD.pdf)
2D Drawing - PDF - BF3S-V16
-
3D RFA BIMM Objects - File - RFA
-
BF3S+V16
(BF3S-V16.rfa)
-
3D IGS - File - IGS
-
BF3S+V16
(BF3S.igs)
- 3D DWG - File - DWG - BF3S (BF3S.dwg)
- 3D DXF - File - DXF - BF3S (BF3S.dxf)
- 3D DWG - File - DWG - V16 (V16_6_showerhead.DWG)
- 3D DXF - File - DXF - V16 (V16_6_showerhead.dxf)
- 3D IGS - File - IGS - V16 (V16_6_showerhead.igs)
- 3D STP - File - STP - V16 (V16_shower_head.stp)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V16 (V16_6_showerhead.rfa)
-

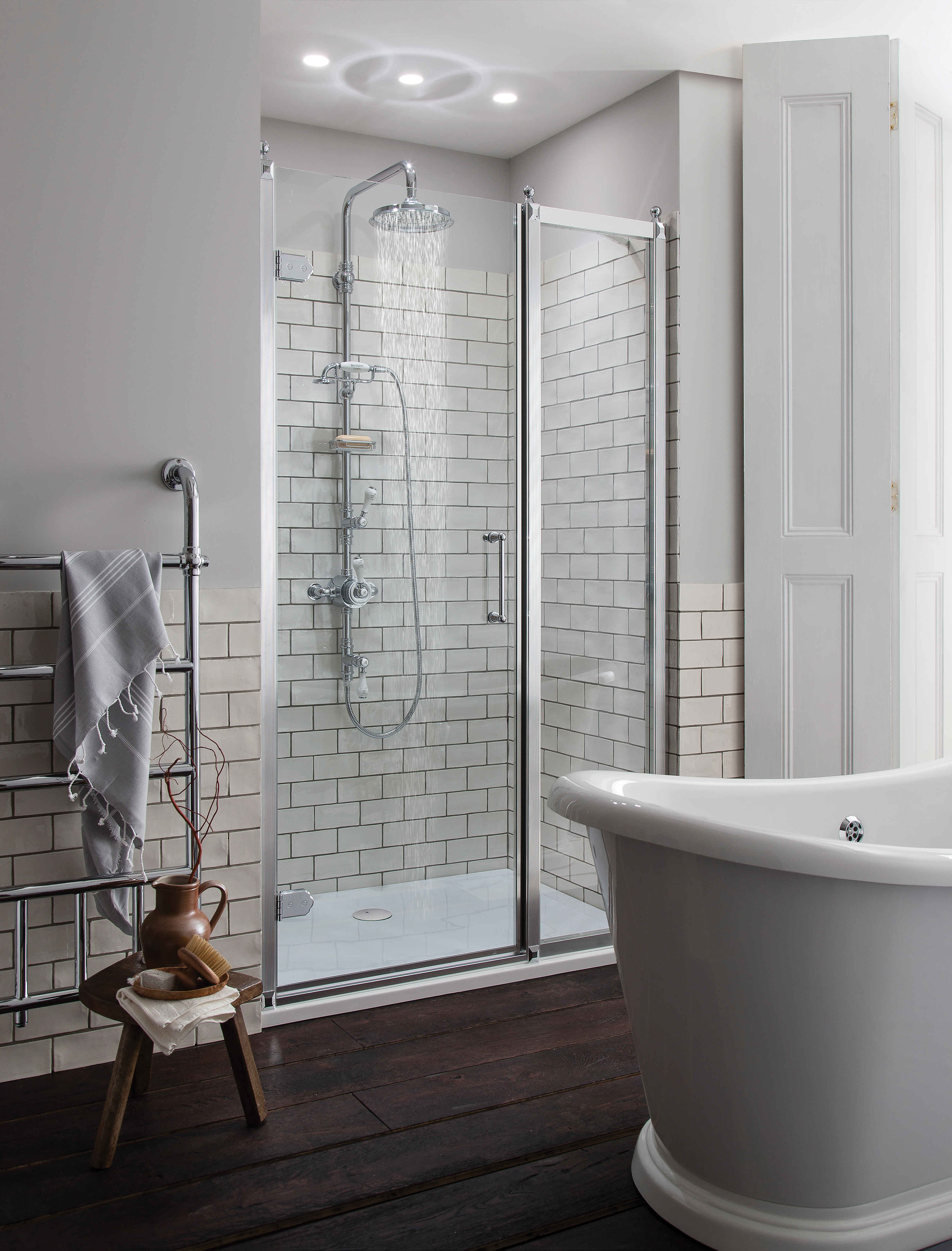

Lifestyle image 1 -
jpg -
Lifestyle image 2 -
jpg -
Lifestyle image 3 -
jpg
-
Lifestyle image 4 -
jpg
-

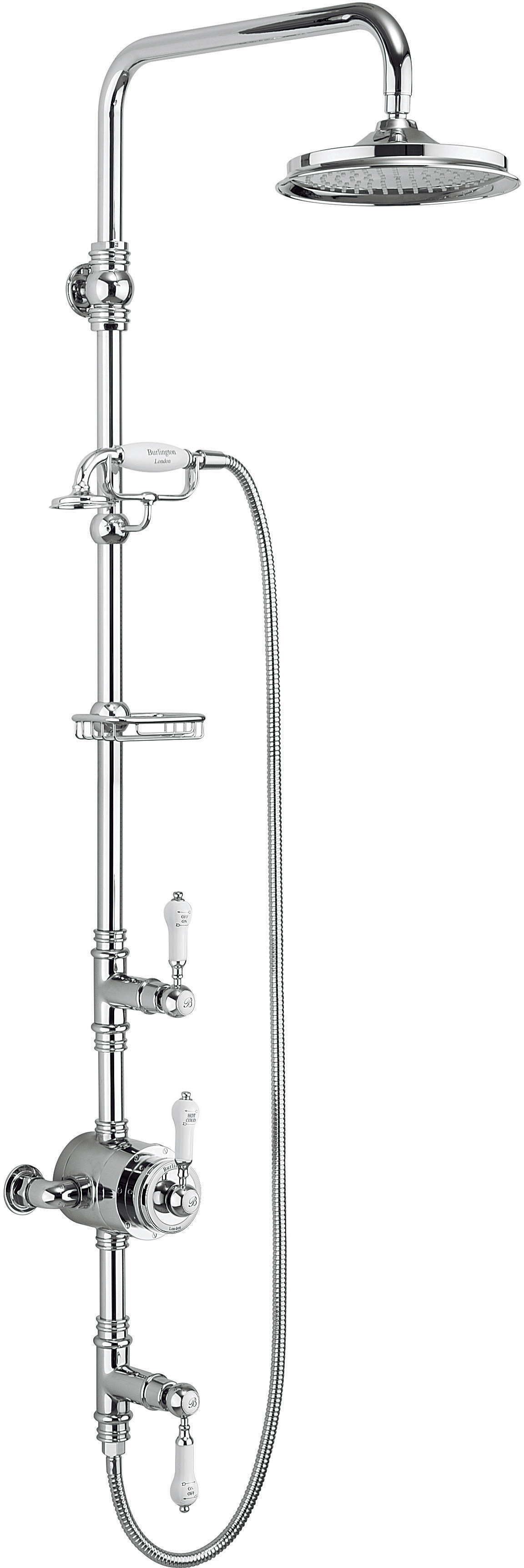

Product image 1 -
