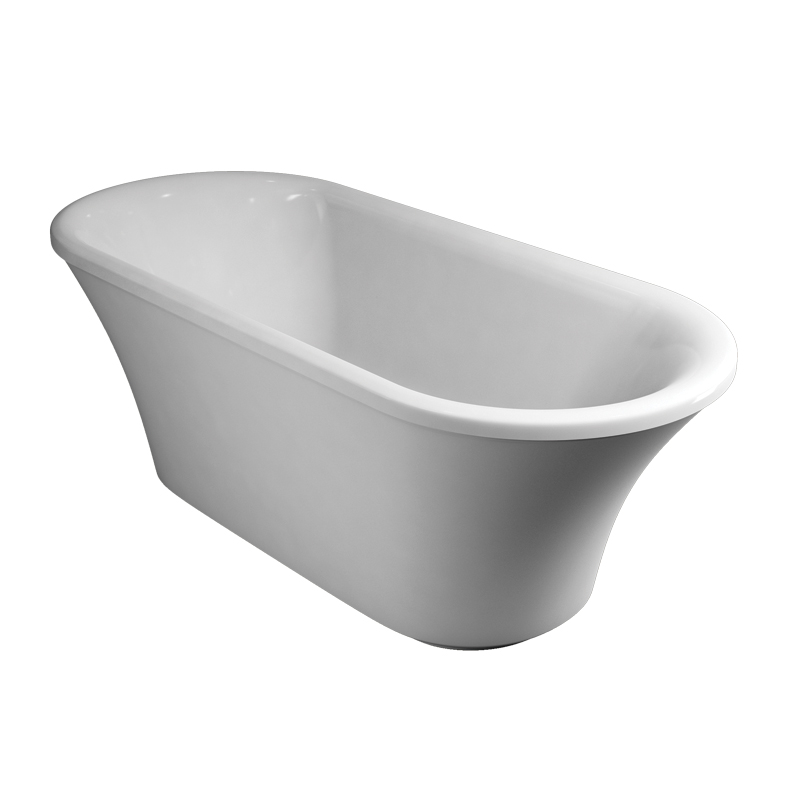

Brindley Soaking tub with surround
Illustrated
E5 Brindley soaking tub
E12 Brindley soaking tub bath skirt
Gross Weight Including Packaging
E5 - bath - 22kg
E12 - Bath skirt - 16kg
Tap Hole Options
0
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS EN14516:2006
Baths for domestic purposes
Additional Information
Template is provided for the drilling of tap holes and overflow hole.
Not suitable for rim-mounted taps
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process
No overflow is pre-drilled for this bath.
This is a two piece bath.
Compatible Products
W2 -    Overflow filler for double ended bath
W3 -    Burlington bath overflow, plug and chain
CW2 -    Click-clack bath waste unslotted with chrome cover
Spare parts (below shows available spare parts for this product)
SP131 brindley bath (E5) leg set
SP1315 spare floor bracket for Brindley Soaking Tub base skirt(E12)
Downloads
Instructions - PDF - E5 (English)
Instructions - PDF - E12 (English)
Alternate Text Instructions - PDF - (French)
2D CAD-File - DWG - E5 E12
3D DWG - File - DWG  -  E5 E12 Alternate Text
3D DXF - File - DXF  -  E5 E12 Alternate Text
3D IGS - File - IGS  -  E5 E12 Alternate Text

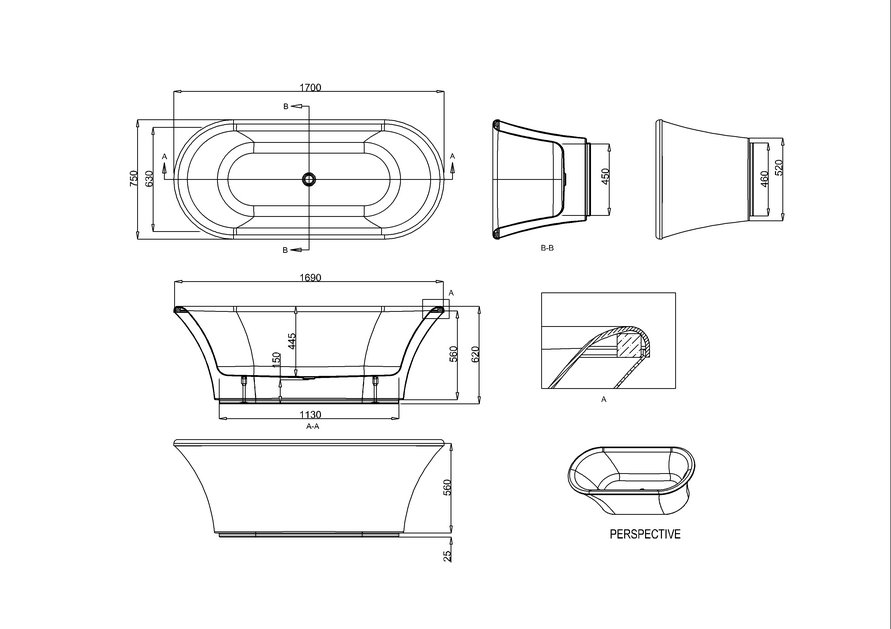

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
