Admiral soaking tub - 165cm
Illustrated

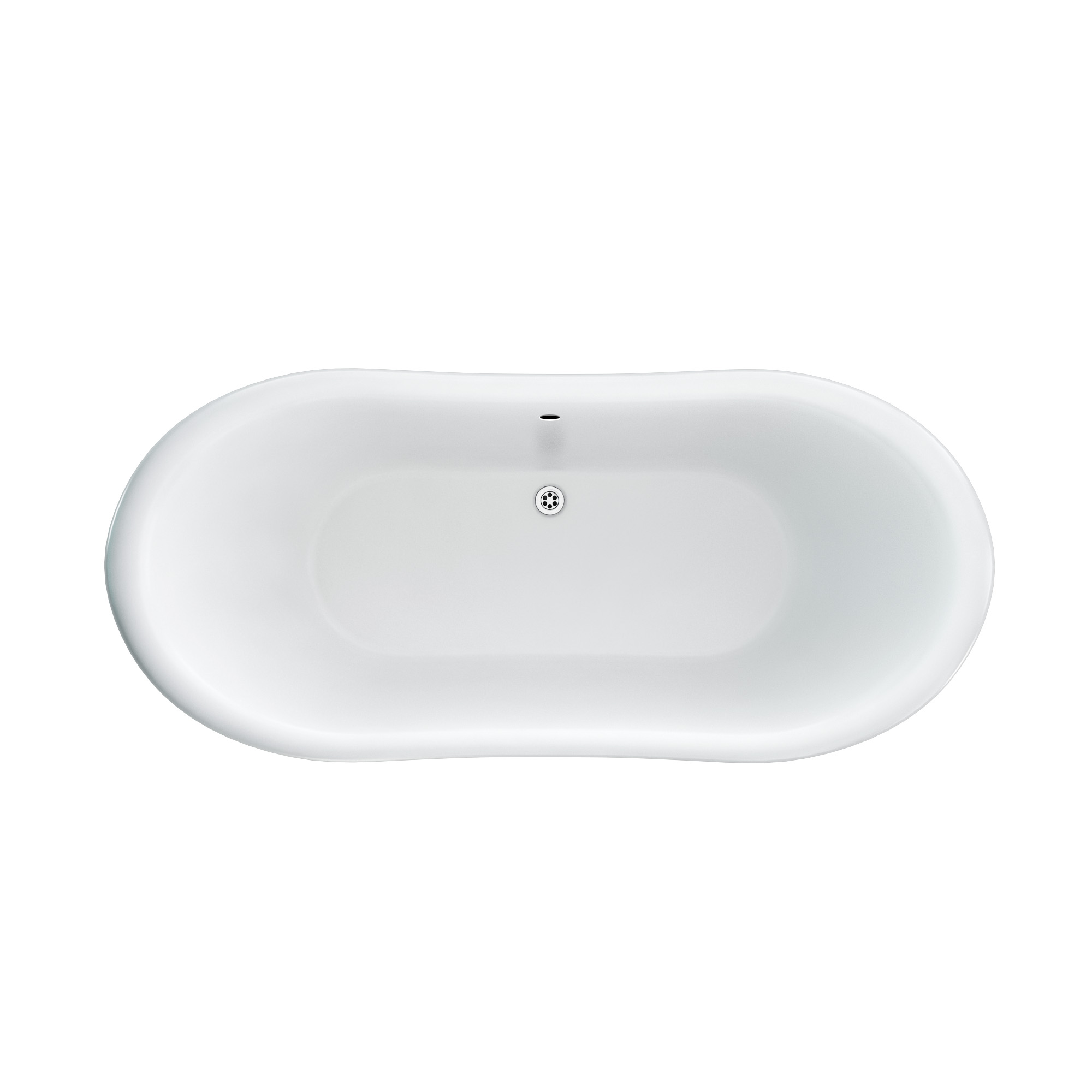

ET5C Admiral bath
Gross Weight Including Packaging
ET5C - bath - 59kg
Tap Hole Options
0
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS EN14516:2006
Additional Information
Top overflow hole is predrilled,no tap template
Not suitable for rim-mounted taps
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process
If using the W4 the bath needs the bottom waste drilled. If using CW11 this isn't applied as overflow drains to the floor.
This is a two piece bath.
Compatible Products
W4 -    Exposed bath overflow, plug & chain
CW3 -    P-trap
CW6 -    Exposed bath overflow, click-clack waste
Spare parts (below shows available spare parts for this product)
SP528 packaging for ET5C
Downloads
Instructions - PDF - ET5C (English)
Alternate Text Instructions - PDF - ET5C (French)
2D CAD-File - DWG - ET5C
3D DWG - File - DWG  -  ET5C Alternate Text
3D DXF - File - DXF  -  ET5C Alternate Text
3D IGS - File - IGS  -  ET5C Alternate Text

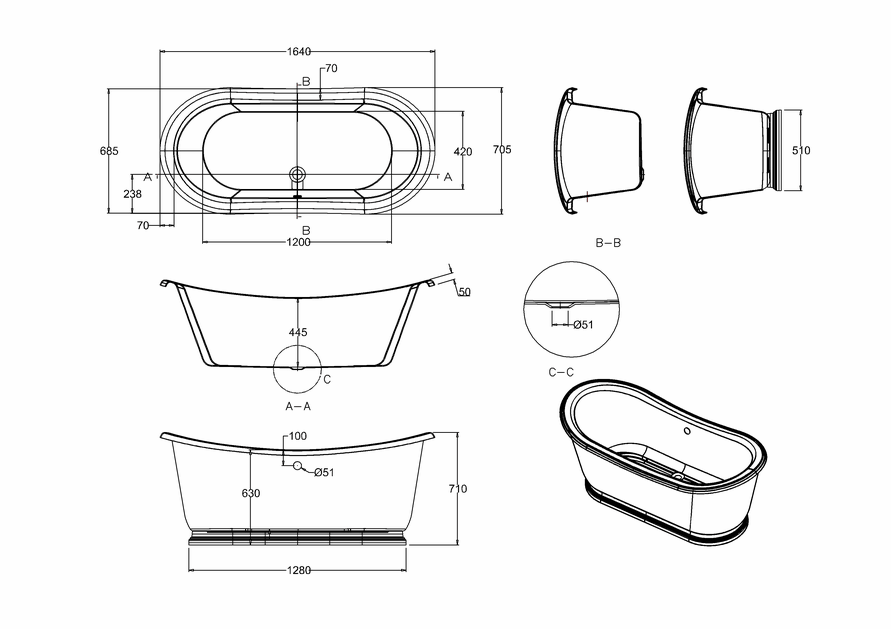

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
