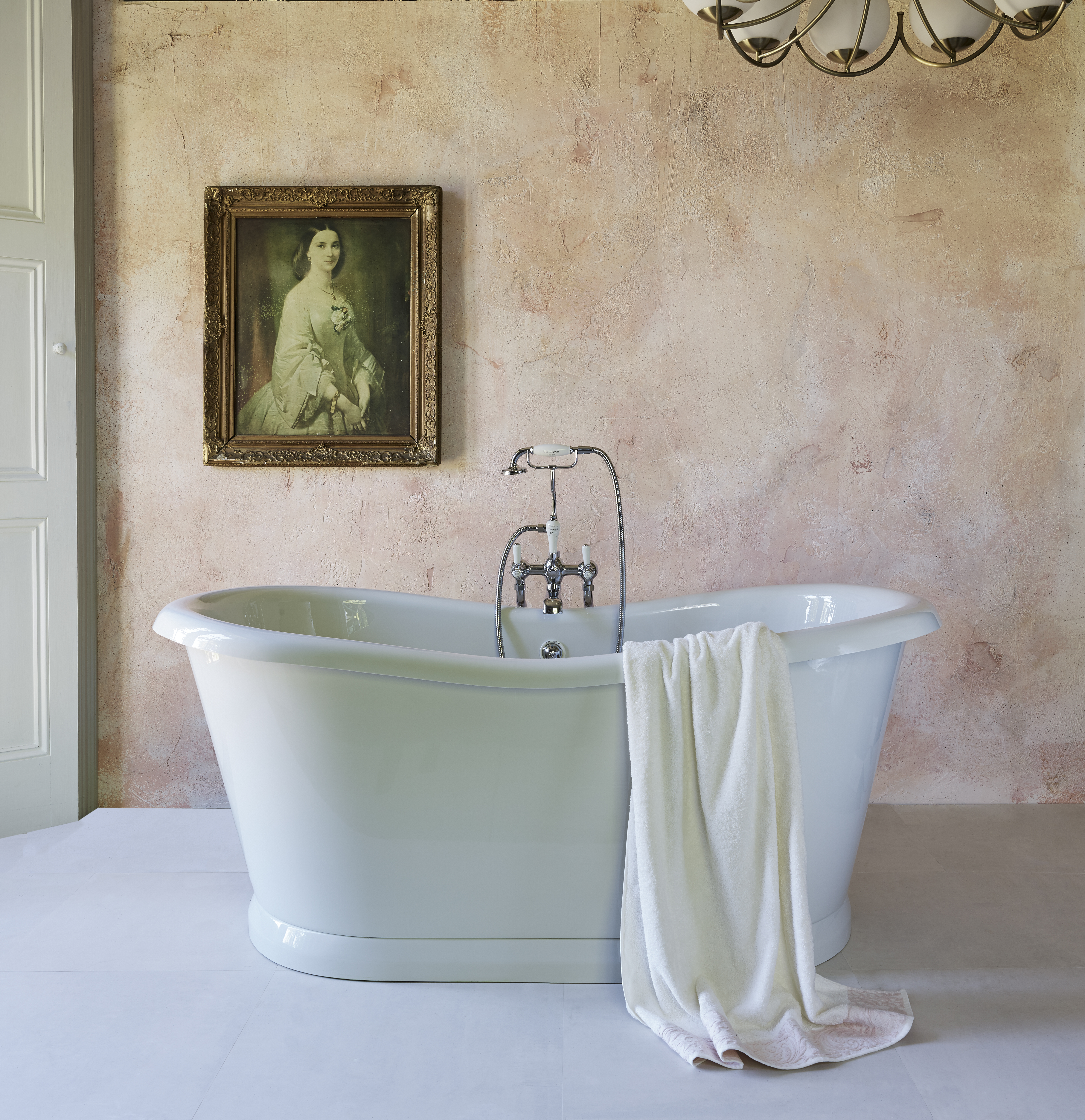

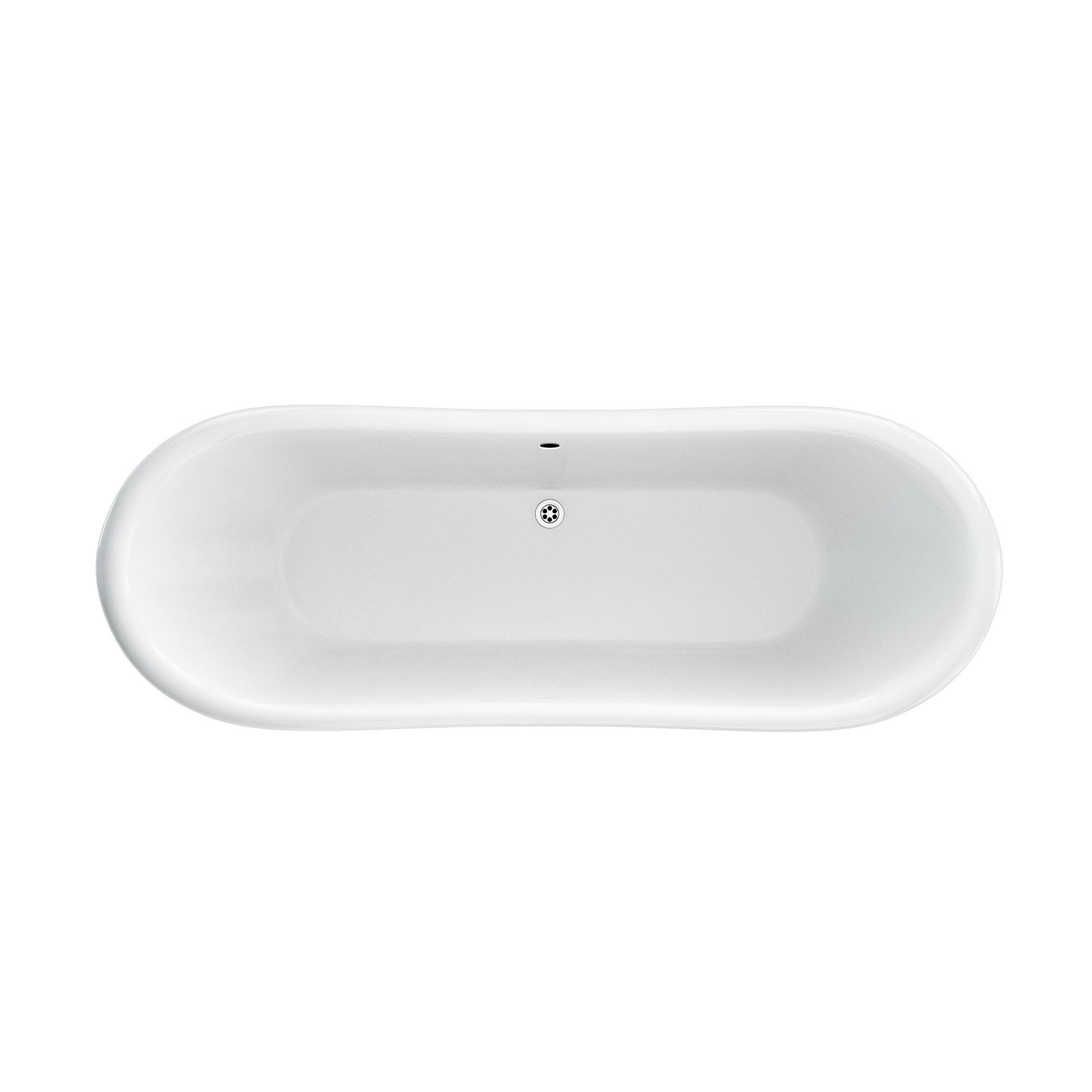

Admiral soaking tub - 180cm
As Shown
| ET6C Admiral bath |
Colour
| ET6C - bath - Gloss White |
Material
| ET6C - bath - Acrylic |
Nett Weight
| ET6C - bath - 67kg |
Gross Weight Including Packaging
| ET6C - bath - 77kg |
Packed Dimension
| ET6C - 1825 x 940 x 805 = 1.381 m3 |
Bath water capacity
| 175 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
The exterior of this bath can be painted, if you wish to paint yours then this can be done by using Acrylic based primers and paints, you should seek advice from the paint manufacturer for suitable products and process |
|
If using the W4 the bath needs the bottom waste drilled. If using CW11 this isn't applied as overflow drains to the floor. |
|
This is a two piece bath. |
|
Top overflow hole is predrilled,no tap template. |
|
Not suitable for rim-mounted taps |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| CW6 - Exposed bath overflow, click-clack waste |
| SP469 | packaging for ET6C |
Downloads
-
2D CAD-File - DWG -
ET6C
(ET6C_LD.dwg)
-

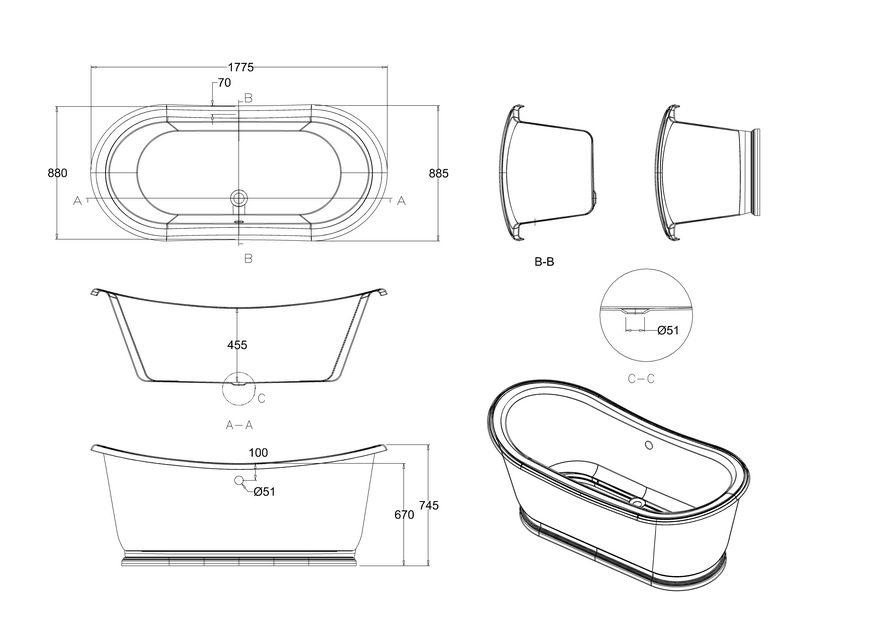

2D Drawing - PDF -
ET6C
(ET6C_LD.pdf)
2D Drawing - PDF - ET6C
-
3D DWG - File - DWG
-
ET6C
(REG-1790.dwg)
-
3D DXF - File - DXF
-
ET6C
(REG-1790.dxf)
-
3D IGS - File - IGS
-
ET6C
(REG-1790.igs)
-
3D RFA BIMM Objects - File - RFA
-
ET6C
(REG-1790.rfa)
-
