Arundel Cleargreen Bath - 170 x 70cm

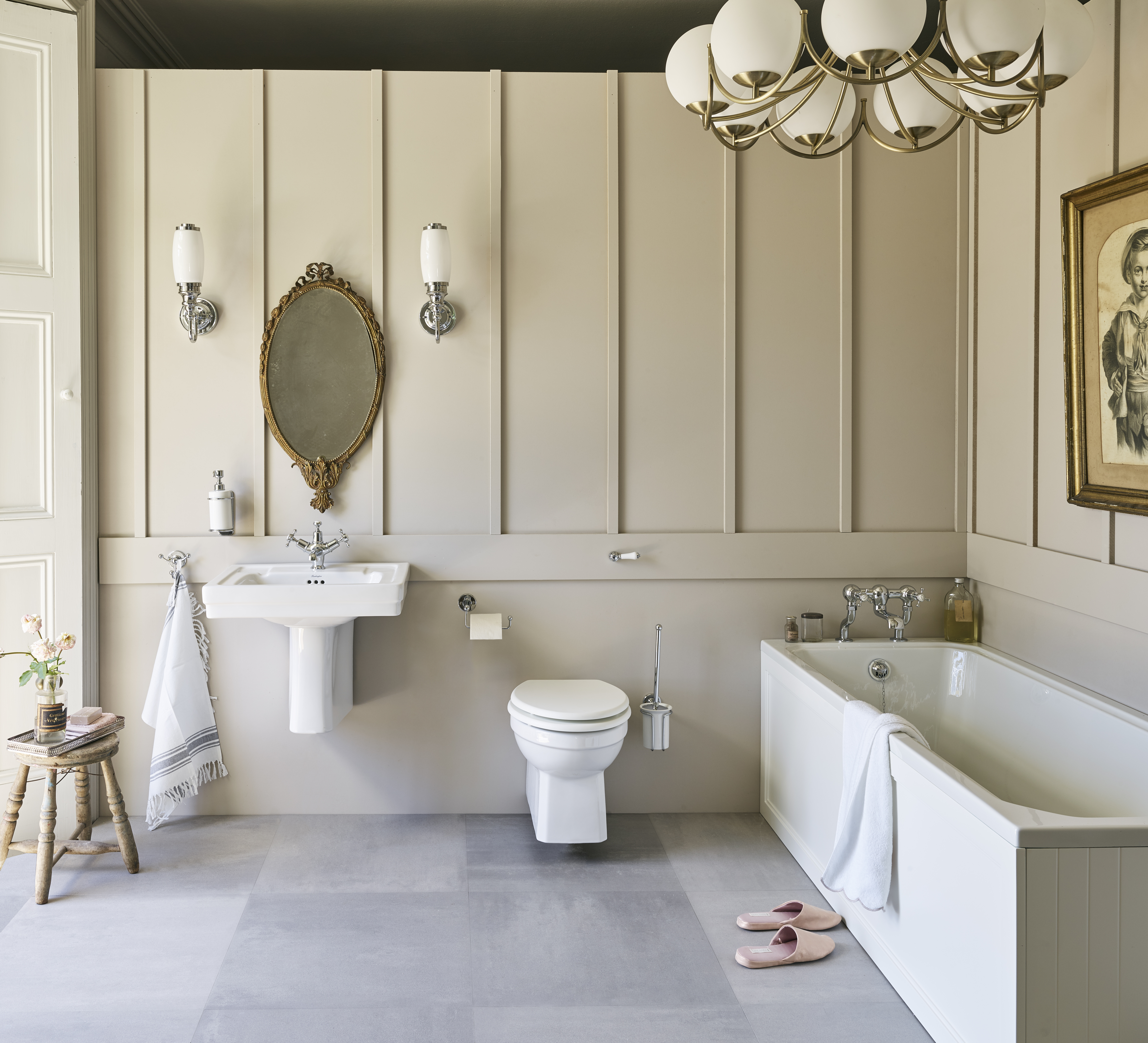

Illustrated
E28 Arundel Cleargreen
Gross Weight Including Packaging
E28 - bath - 25kg
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS EN14516:2006; Baths for domestic purpose
Additional Information
Overflow holes are predrilled.
Supplied with bath feets.
Taps can be mounted on the ledge behind the overflow hole.
Tap holes can be drilled on site.
Compatible Products
C9 -    Bath Screen
C10 -    Bath Screen with Access Panel
W15 -    Overflow bath filler single bath
W3 -    Burlington bath overflow, plug and chain
Spare parts (below shows available spare parts for this product)
SP231 leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths
Downloads
Instructions - PDF - E28 (English)
Alternate Text Instructions - PDF - E28 (French)
2D CAD-File - DWG - E28
3D DWG - File - DWG  -  E28 Alternate Text
3D DXF - File - DXF  -  E28 Alternate Text
3D IGS - File - IGS  -  E28 Alternate Text

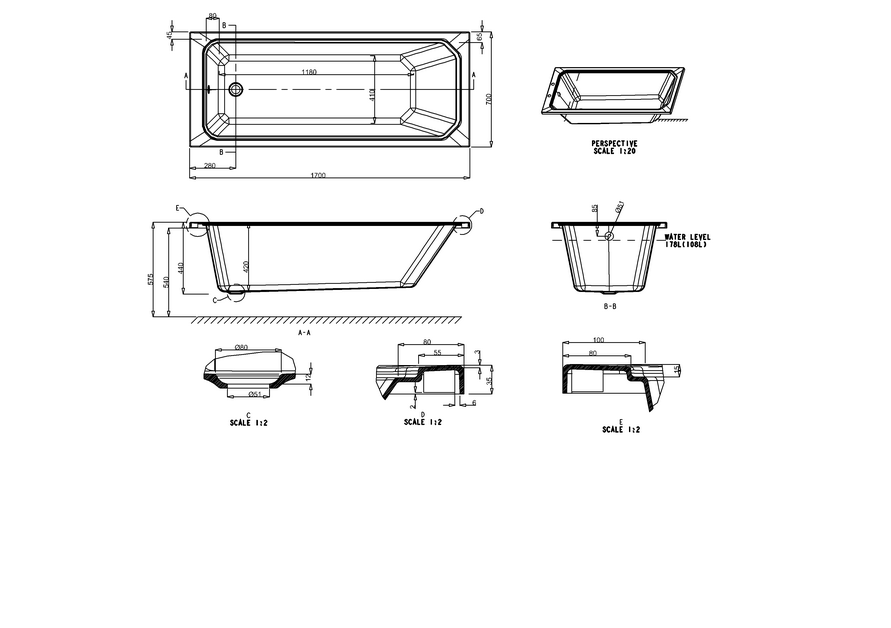

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
