Arundel Cleargreen Bath - 170 x 75cm

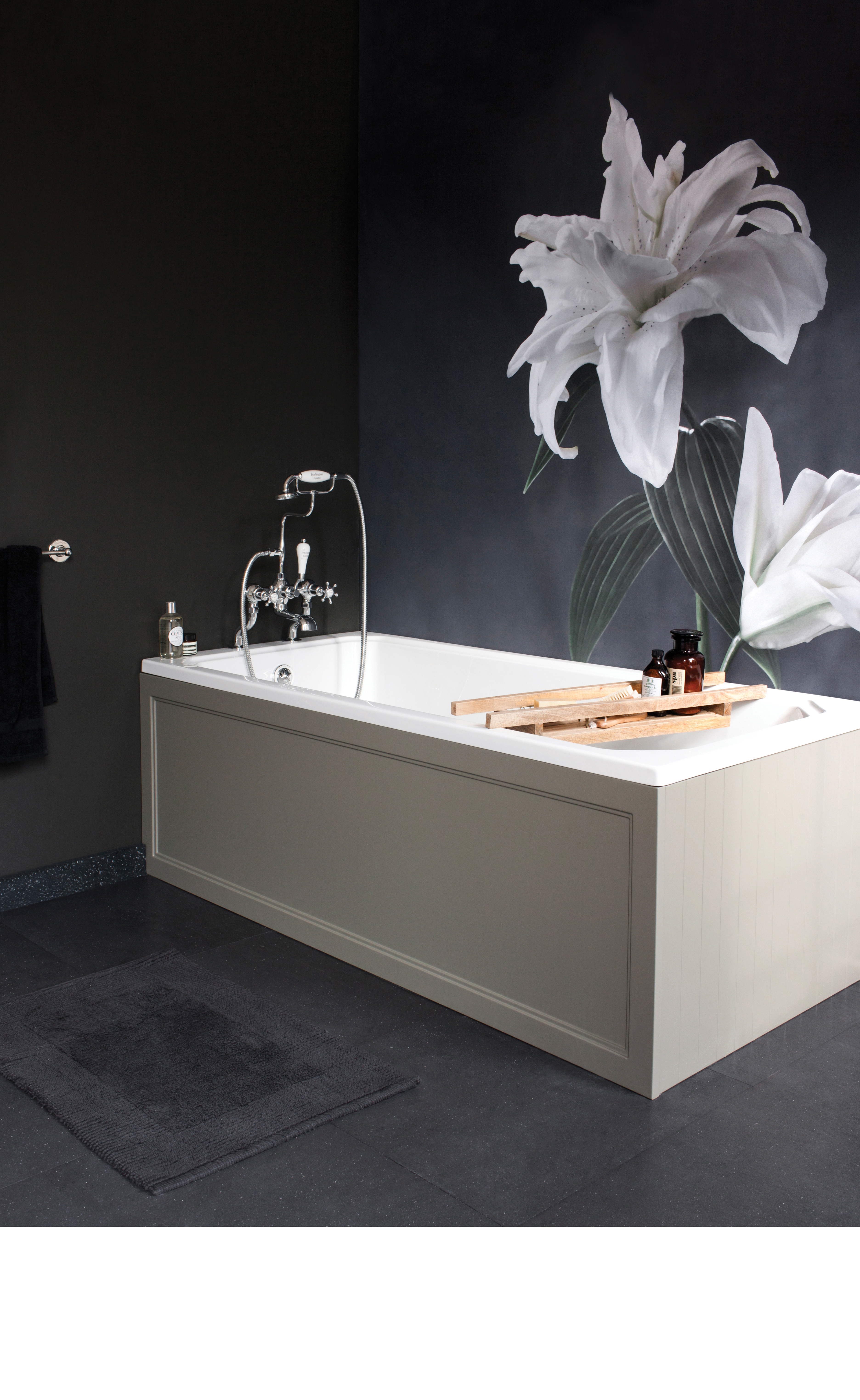

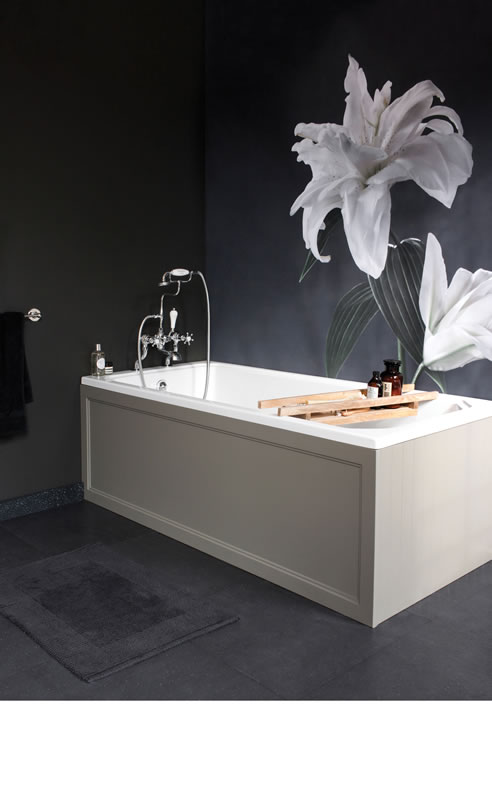

Illustrated
E30 Arundel Cleargreen
Gross Weight Including Packaging
E30 - bath - 25.25kg
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS EN14516:2006; Baths for domestic purpose
Additional Information
Overflow holes are predrilled.
Supplied with bath feets.
The bath requires either bath panels or to be tiled in on site
taps can be mounted on the ledge behind the overflow hole
Tap holes can be drilled on site
Compatible Products
C9 -    Bath Screen
C10 -    Bath Screen with Access Panel
W15 -    Overflow bath filler single bath
W3 -    Burlington bath overflow, plug and chain
Spare parts (below shows available spare parts for this product)
SP231 leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths
Downloads
Instructions - PDF - E30 (English)
Alternate Text Instructions - PDF - E30 (French)
2D CAD-File - DWG - E30
3D DWG - File - DWG  -  E30 Alternate Text
3D DXF - File - DXF  -  E30 Alternate Text
3D IGS - File - IGS  -  E30 Alternate Text

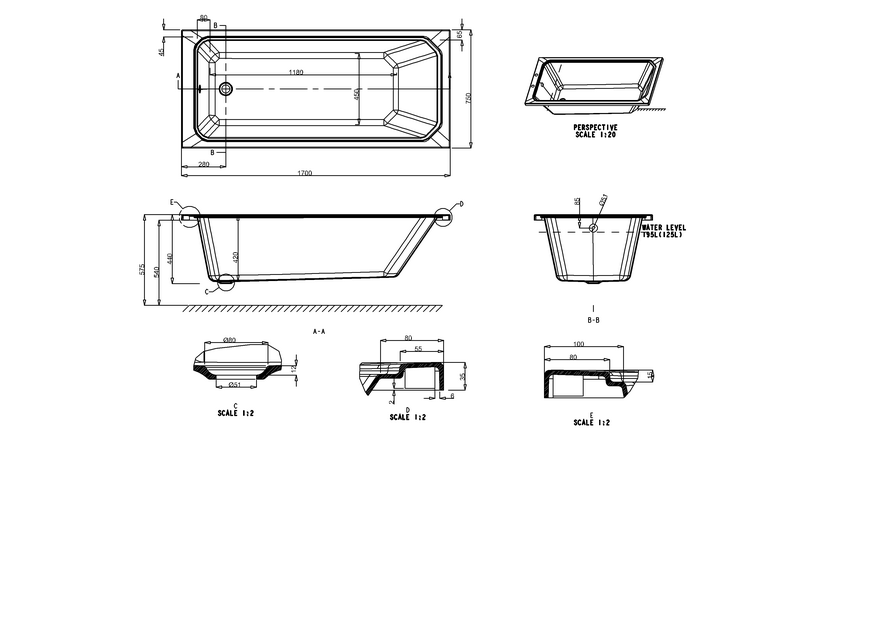

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
