Hampton left handed bath - 150cm with luxury legs
with luxury legs
Luxury arc feet
Alternate Text Alternate Text Alternate Text
White Black Chrome
Luxury classic feet
Alternate Text Alternate Text Alternate Text
White Black Chrome
Luxury claw feet
Alternate Text Alternate Text Alternate Text
Black White Chrome

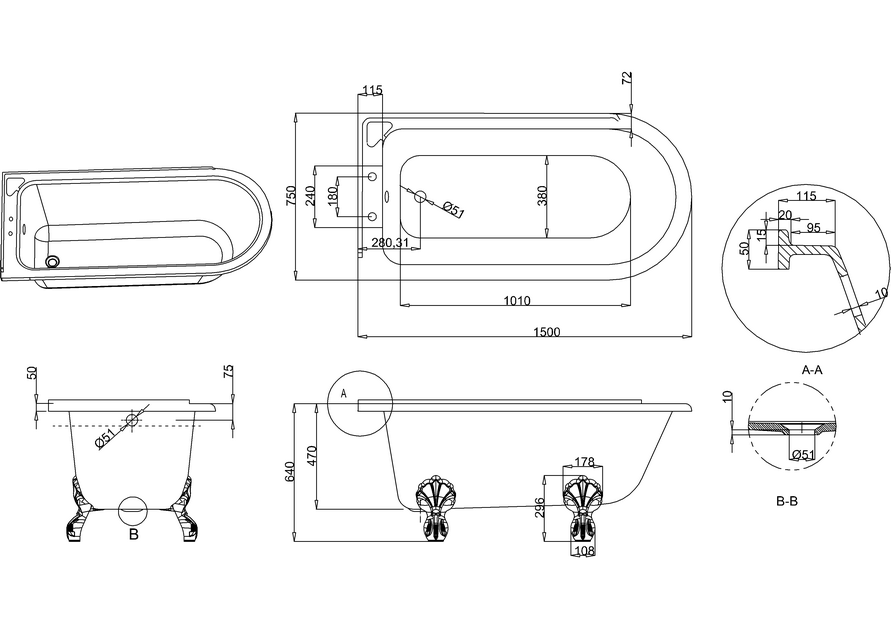

Illustrated
L1C Chrome claw legs
E20 Hampton shower bath (left)
Tap Hole Options
0,1,2
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS EN14516:2006
Additional Information
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required.
Compatible Products
W4 -    Exposed bath overflow, plug & chain
CW3 -    P-trap
W21 -    P-trap connection pipe
CW2 -    Click-clack bath waste unslotted with chrome cover
CW6 -    Exposed bath overflow, click-clack waste
Downloads
Instructions - PDF - L1C (English)
Instructions - PDF - E20 (English)
Alternate Text Instructions - PDF - E20 (French)
Alternate Text Instructions - PDF - L3W (French)
2D CAD-File - DWG - L1C E20
3D DWG - File - DWG  -  L1C E20 Alternate Text
3D DXF - File - DXF  -  L1C E20 Alternate Text
3D IGS - File - IGS  -  L1C E20 Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
