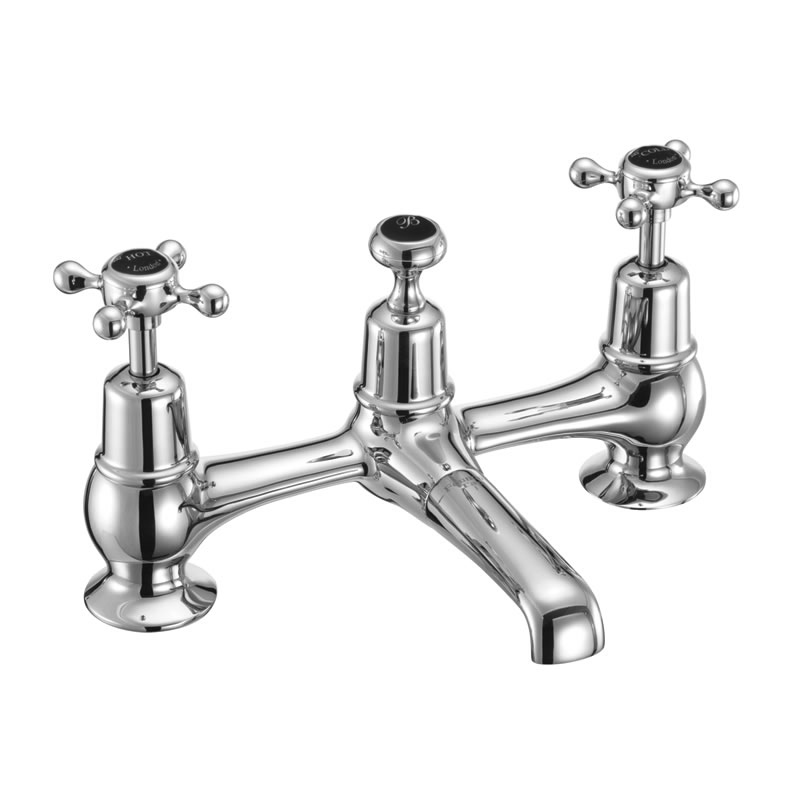

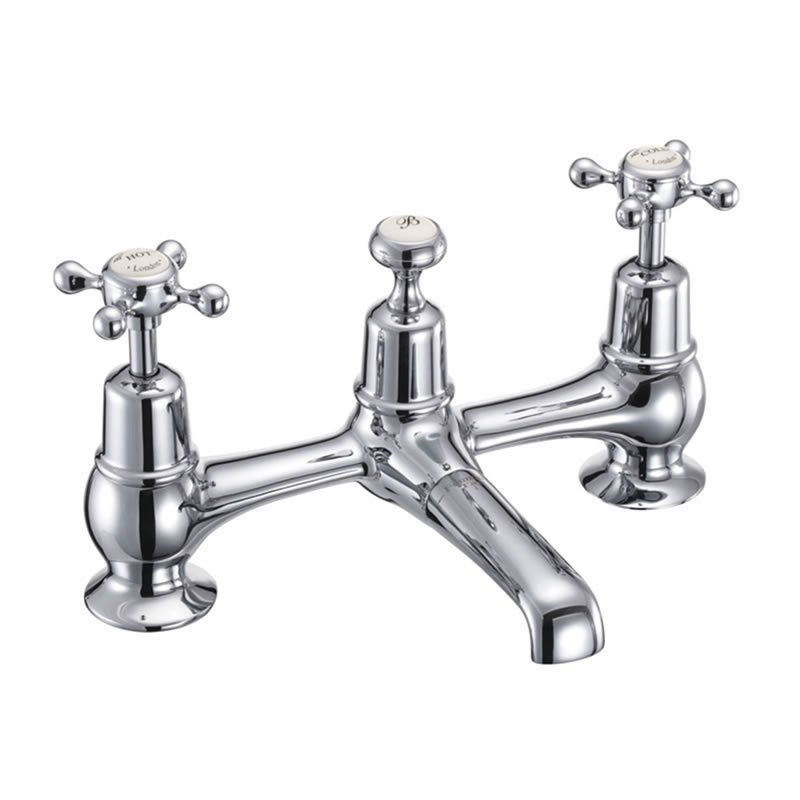

Burlington bridge basin mixer with high central indice & plug and chain waste with swivel spout
Product Options
Tap Head options
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey 2 tap hole bridge basin mixer with plug and chain waste and swivel spout Anglesey Birkenhead 2 tap hole bridge basin mixer with plug and chain waste and swivel spout Birkenhead Kensington 2 tap hole bridge basin mixer with plug and chain waste and swivel spout Kensington
Tap Base options

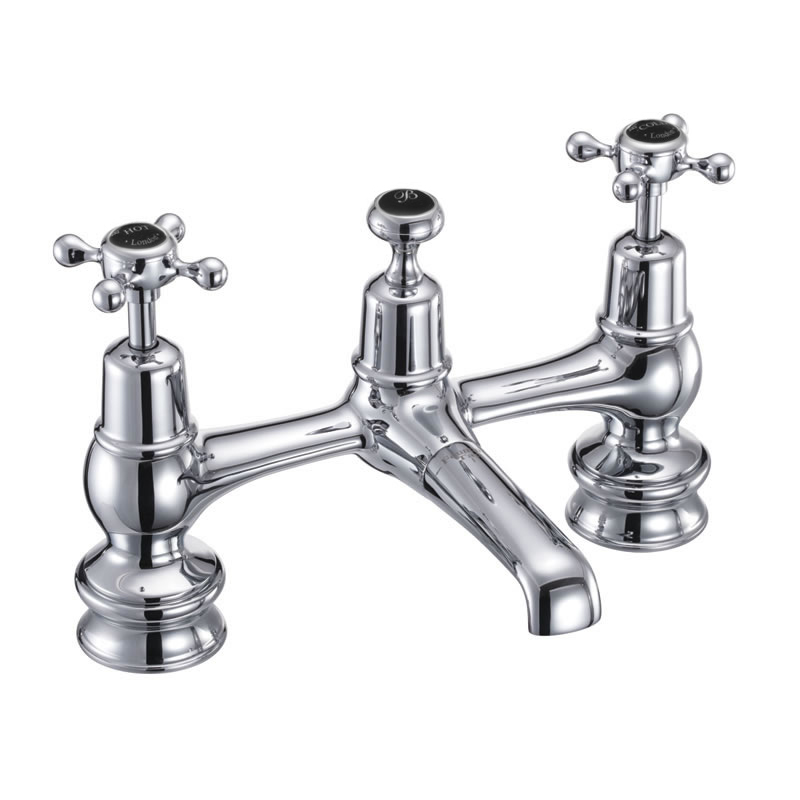

Claremont 2 tap hole bridge basin mixer with swivelling spout with plug and chain waste Standard base Claremont Regent 2 tap hole bridge basin mixer with plug and chain waste and swivel spout Regent base
Alternate Text
Illustrated
T16 Bridge basin mixer with plug & chain waste
T1 Claremont tap handles
CL10  -  Combined product code
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996
BS EN 200:2008
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Supplied with a plug & chain waste. If a flip-top or click-clack waster is preferred then these can be purchased seperately.
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straigthener) 10.1  16.9  18.1  20.5  23.7  n/a  n/a
Spout (aerator) 1.8  2.7  3.6  3.6  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP882 aerator for product T16, T16-QT
SP523 bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP1189 black fixing nut for T13, T13-QT, T16, T16-QT, W11, W22, W18, ARCW18 NKL, W1
SP1235 chain for T13, T13-QT, T16, T16-QT, W1
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP934 decorative head of product T16, T16-QT, T15, T15-QT
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451 key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP884 plug (including the chain, stud and nut) of product W1, T16, T16-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48 T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP28 T5, T6, T7, T16 1, 2 full turn cartridge
SP1103 the grate for the W1, T16, T16-QT, T13, T13-QT
SP1093 thread tube O ring seal for T16, T16-QT, T14, T14-QT, T14 BLA, T14-QT BLA, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Innovative Designs These taps come with the traditional screw down valves as standard. A quarter turn option is available when ordering. Simply add QT to the product code when ordering to specify the quarter turn option. Tap Head Turns Colour Traditional
screw-down
Quarter turn
TAP HEADS All available with any tap base for all applications
Standard Regent
Perfect for everyday use in residential situations. The standard height of this base features an un-complicated design and works beautifully with all basins and baths. Designed so that the spouts are 3cm higher off of the basin or bath and a further 3cm away from the wall for wall-mounted taps. This creates an opulent feel and ensures compliance with some archaic building regulations.
Downloads
Instructions - PDF - T16 (English)
Alternate Text Instructions - PDF - T16 (French)

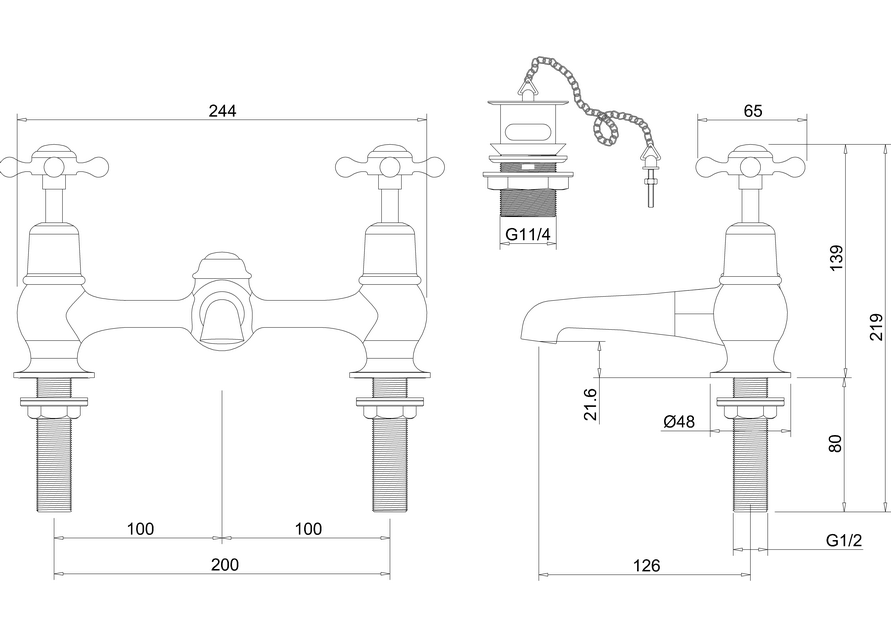

2D CAD-File - DWG - CL10
3D DWG - File - DWG  -  CL10 Alternate Text
3D DXF - File - DXF  -  CL10 Alternate Text
3D IGS - File - IGS  -  CL10 Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
