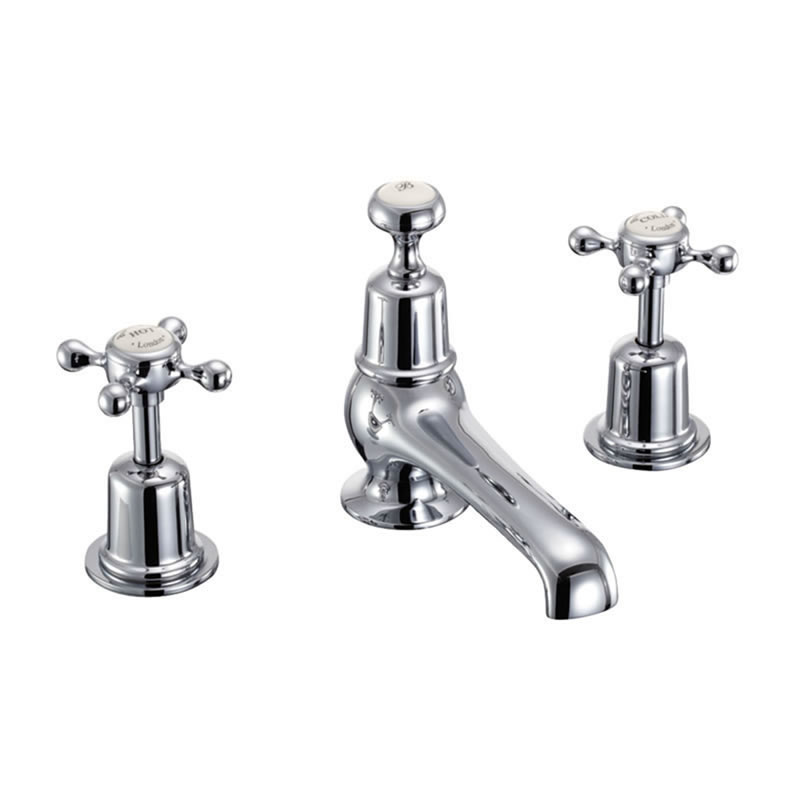

Burlington 3 tap hole thermostatic basin mixer with pop-up waste
Product Options
Tap head options
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey 3 tap hole thermostatic mixer with pop up waste Anglesey Birkenhead 3 tap hole thermostatic mixer with pop up waste Birkenhead
Alternate Text
Illustrated
T1 Claremont tap handles
T26 Thermostatic tap 3TH, with pop up
CL29  -  Combined product code
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996
BS EN 200:2008
TMV 2
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
This tap is not compatible with kensington tap handles
The right hand side is the on/off control and the left hand side is the thermostatic mixer valve
This comforms to TMV 2 standards
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straigthener) 9.5  15.8  17.2  19.3  21.2  n/a  n/a
Spout (aerator) 4.1  7.7  8.9  10.6  11.6  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP523 bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP449 flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP92 G3, 4 fixing nut and washer for products T7, T18
SP315 hent F2 flow control cartridge
SP749 HOT, COLD indice for T26
SP863 metal block of product T26
SP750 ON, OFF indice for T26
SP634 pair of flexible hoses for T14-QT, T14, T26 (360mm)
SP889 pop up basin waste of product T14, T14-QT, T26 (excluding the vertical pop up waste control rod)
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP1093 thread tube O ring seal for T16, T16-QT, T14, T14-QT, T14 BLA, T14-QT BLA, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
SP985 top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
SP314 VQT1 temperature control cartridge
SP1285 washers of pop up rod for T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26
Downloads
Instructions - PDF - T26 (English)
Alternate Text Instructions - PDF - T26 (French)
2D CAD-File - DWG - CL29
3D DWG - File - DWG  -  CL29 pending
3D DXF - File - DXF  -  CL29 pending
3D IGS - File - IGS  -  CL29 pending

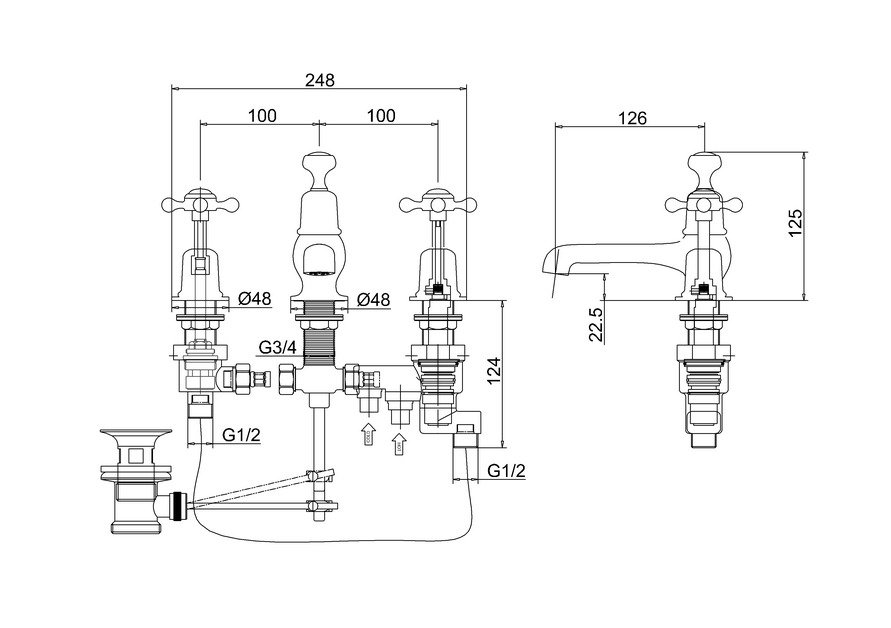

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
