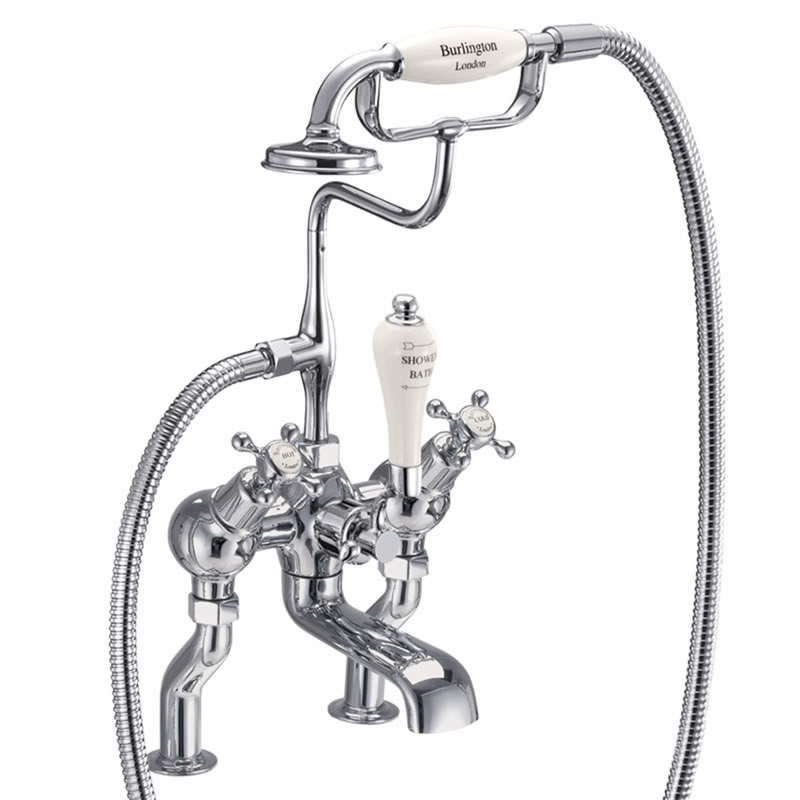

Burlington angled bath shower mixer deck mounted with S adjuster
Product Options
Tap Head options
Ceramic Tap Hand_T1_PAGE63_PAGE65.jpg Claremont Anglesey angled bath shower mixer - deck mounted Anglesey Birkenhead angled bath shower mixer - deck mounted Birkenhead Kensington angled bath shower mixer - deck mounted Kensington
Tap Base options

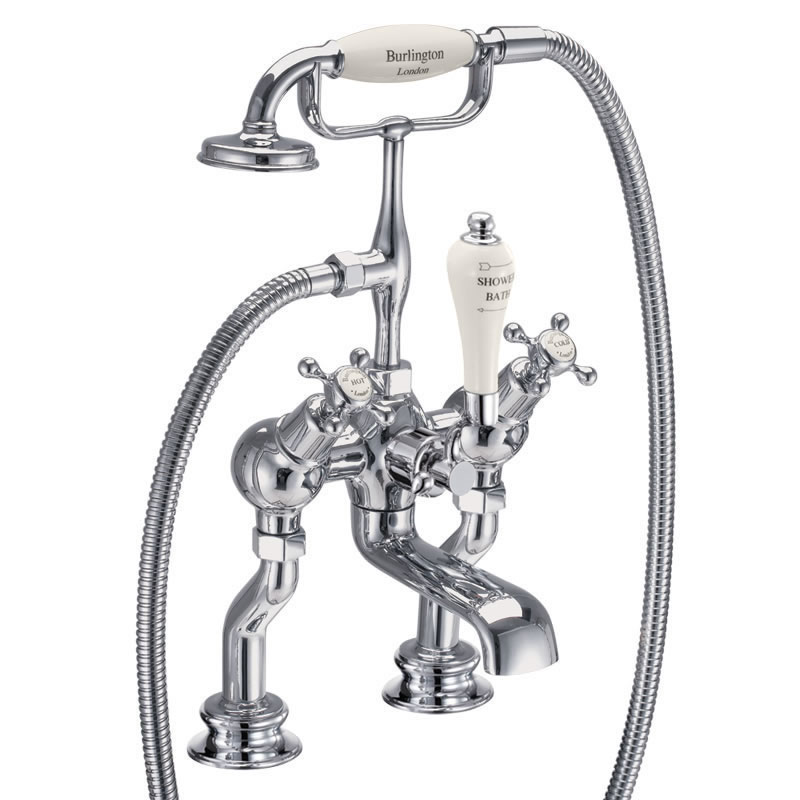

Claremont angled bath shower mixer - deck mounted Standard base Claremont Regent angled bath shower mixer - deck mounted Regent base
Alternate Text
Illustrated
T9 Angled bath shower mixer
T18 Deck mounting unions
T1 Claremont tap handles
CL19  -  Combined product code
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996
BS EN 200:2008
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straigthener) 22  22.6  25.2  27.2  29  n/a  n/a
Spout (aerator) 5.6  10.7  11.6  14.3  15.6  n/a  n/a
Handset 3.56  4.19  7.06  11.36  15.55  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP162 aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44, T2WS, T2DS, T2WB, T2DB
SP523 bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP1209 ceramic handle for Burlington telephone handset
V29 ceramic telephone handset
SP557 cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP191 diverter for T8, T8-QT, T9, T9-QT
SP378 diverter handle for T8, T8-QT, T9, T9-QT
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP92 G3, 4 fixing nut and washer for products T7, T18
SP1006 o rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP200 part B for T8, T9 diverter
SP317 s Adjustor for T8, T8-QT, T9, T9-QT
SP1072 set of parts used to connect the T8 BSM diverter and cross handle
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP40 T9 'Shower, Bath' ceramic indice
SP27 T9, T24, T25 3, 4 full turn cartridge
Innovative Designs These taps come with the traditional screw down valves as standard. A quarter turn option is available when ordering. Simply add QT to the product code when ordering to specify the quarter turn option. Tap Head Turns Colour Traditional
screw-down
Quarter turn
‘ S ’ ADJUSTER Every Bath Shower Mixer comes with our ‘S’ Adjuster. This means you can position the telephone handset over the bath - so when you're done the last few drips fall in the bath. You can install your Bath Shower Mixer with or without the ‘S’ Adjuster. Tap S Adjuster
without S-adjuster with S-adjuster
Downloads
Instructions - PDF - T9 (English)
Alternate Text Instructions - PDF - T9 (French)

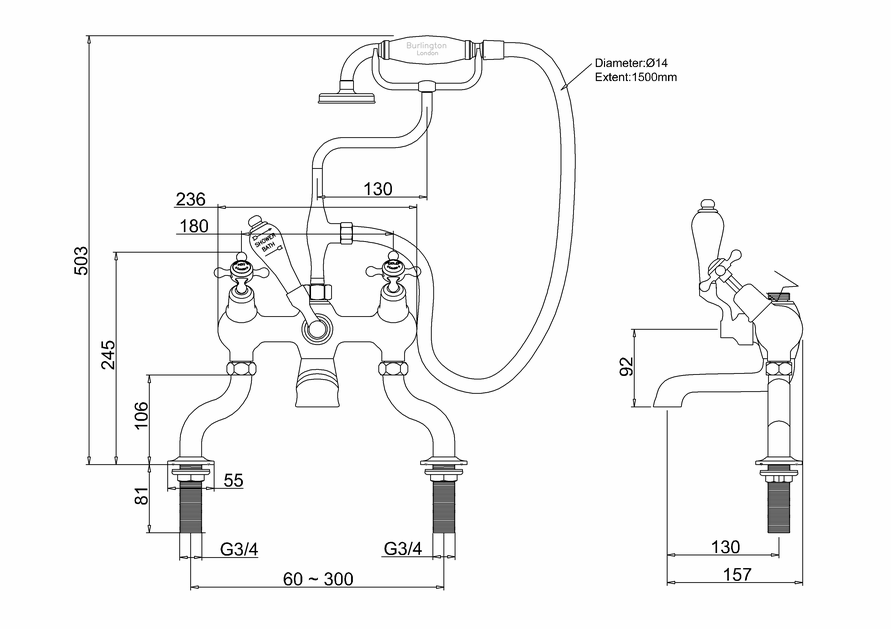

2D CAD-File - DWG - CL19
3D DWG - File - DWG  -  CL19 Alternate Text
3D DXF - File - DXF  -  CL19 Alternate Text
3D IGS - File - IGS  -  CL19 Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
