Chelsea Curved Bidet Mixer with pop-up waste
Product Options
Tap Base options

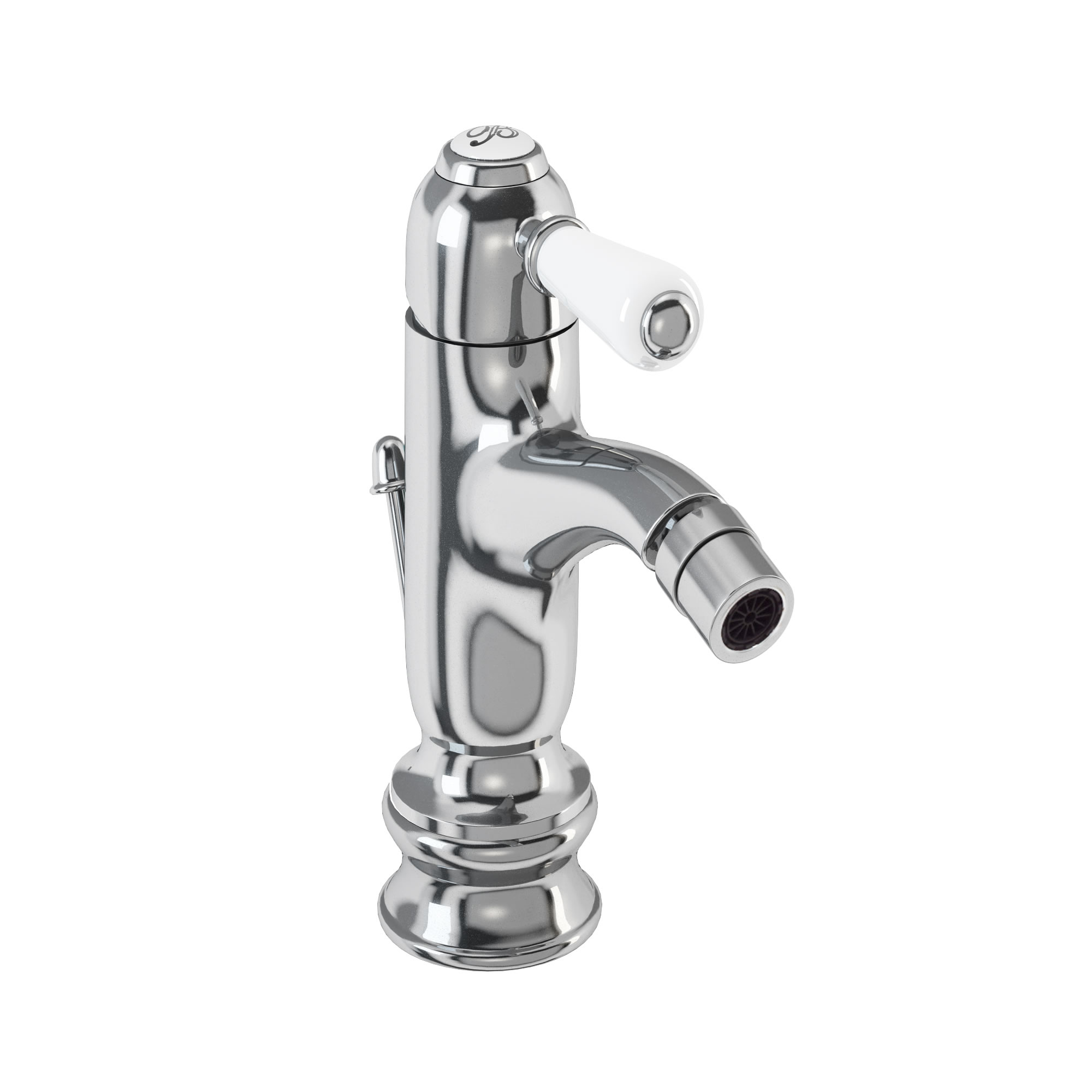

Chelsea curved bidet mixer with pop up waste Standard base Chelsea Regent curved bidet mixer with pop up waste Regent base
Alternate Text
Illustrated

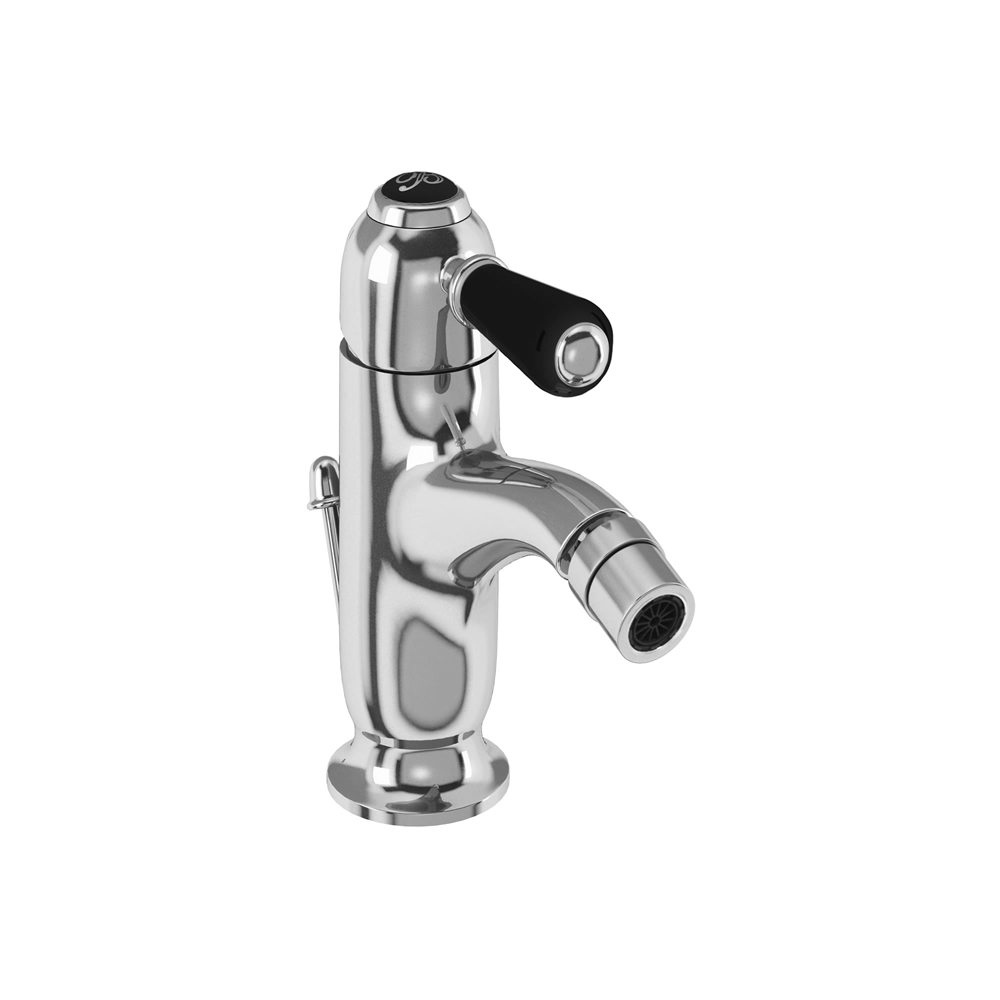

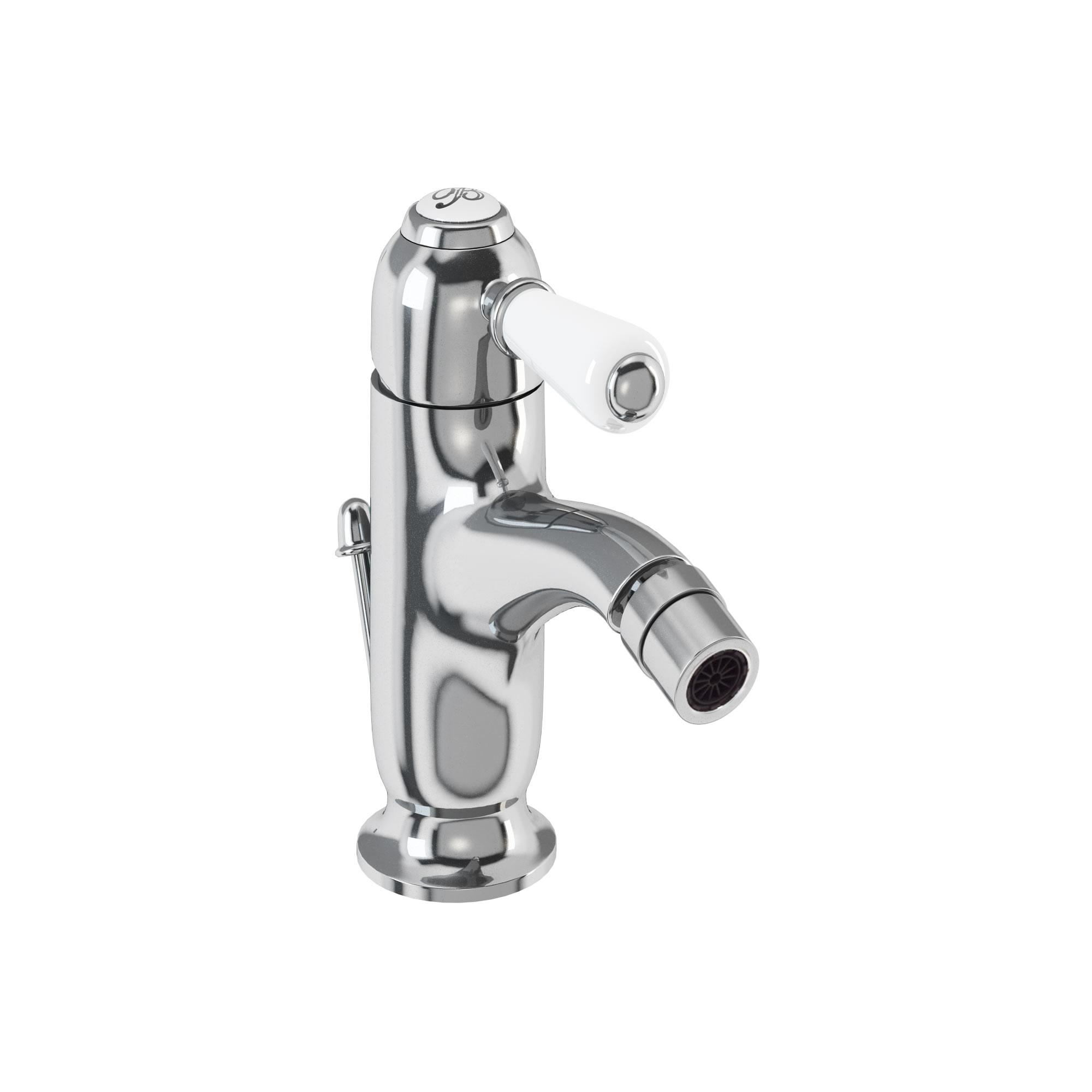

CH23 Chelsea curved bidet mono tap with pop up waste
CH23  -  Combined product code
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996
BS EN 200:2008
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straigthener) 5.24  9.78  11.08  15.02  18.86  n/a  n/a
Spout (aerator) 3.31  4.81  6.32  8.62  11.08  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP450 aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP47 b logo ceramic indice (D=21.4mm) for V12, CH19, R6 CHR, R7 CHR
SP1318 cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23
SP579 cartridge of product CH19, CH20, CH21, CH22, CH23
SP1309 cartridge retaining nut for CH19, CH20, CH21, CH22, CH23
SP1054 chelsea tap lever of CH19, CH20, CH21, CH22, CH23
SP449 flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP655 pair of flexible hose for T12, T13, CH19, CH20, CH21, CH22, CH23
SP974 plug of pop up waste for product T12, T12-QT, CH20, CH22, T15, T15-QT, CH23, T14, T14-QT
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP942 tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1125 the nozzle for T15, T15-QT, CH23
Downloads
Instructions - PDF - CH23 (English)
Alternate Text Instructions - PDF - CH23 (French)

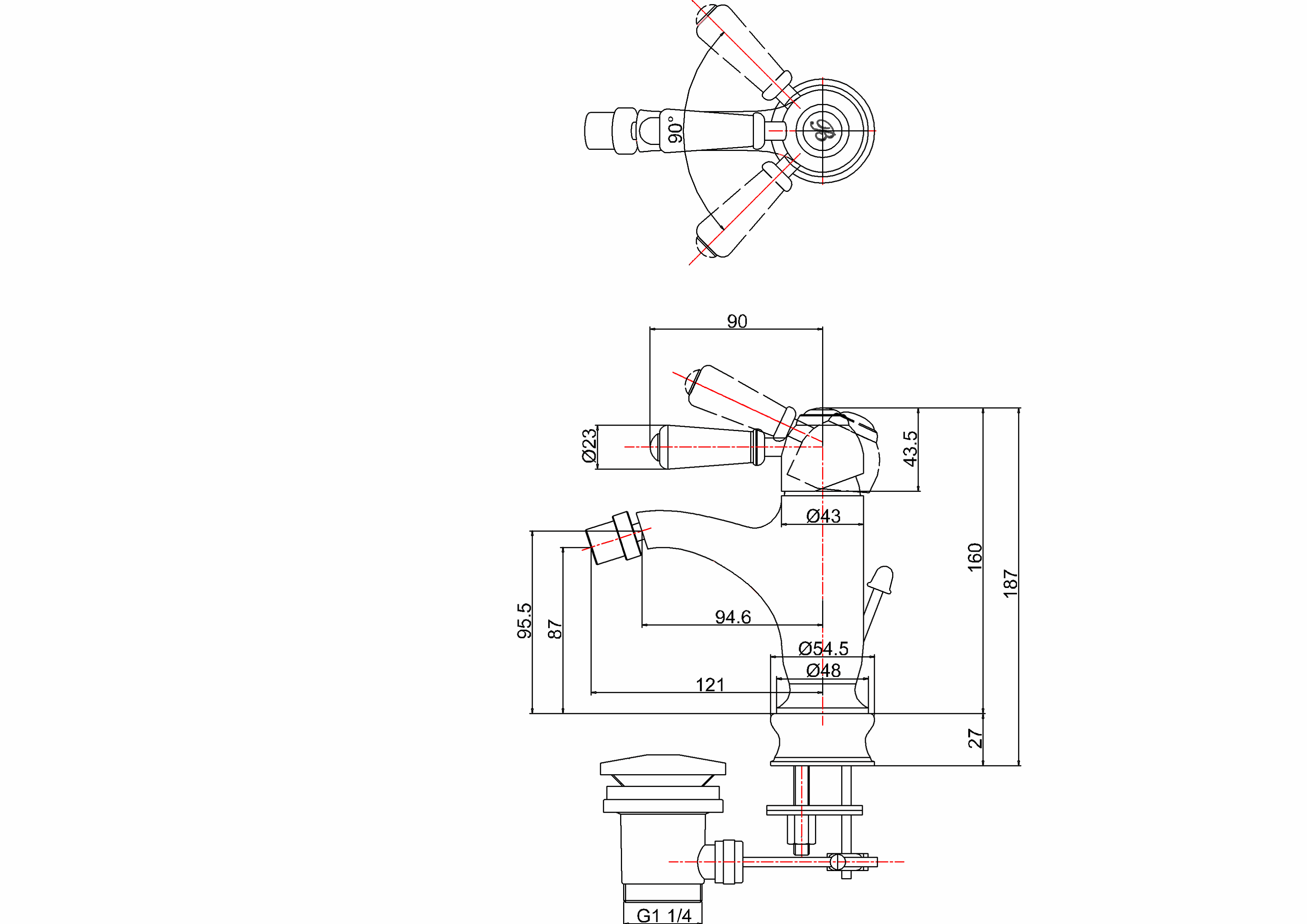

2D CAD-File - DWG - CH23
3D DWG - File - DWG  -  CH23 Alternate Text
3D DXF - File - DXF  -  CH23 Alternate Text
3D IGS - File - IGS  -  CH23 Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
