Decorative Shrouds
Illustrated

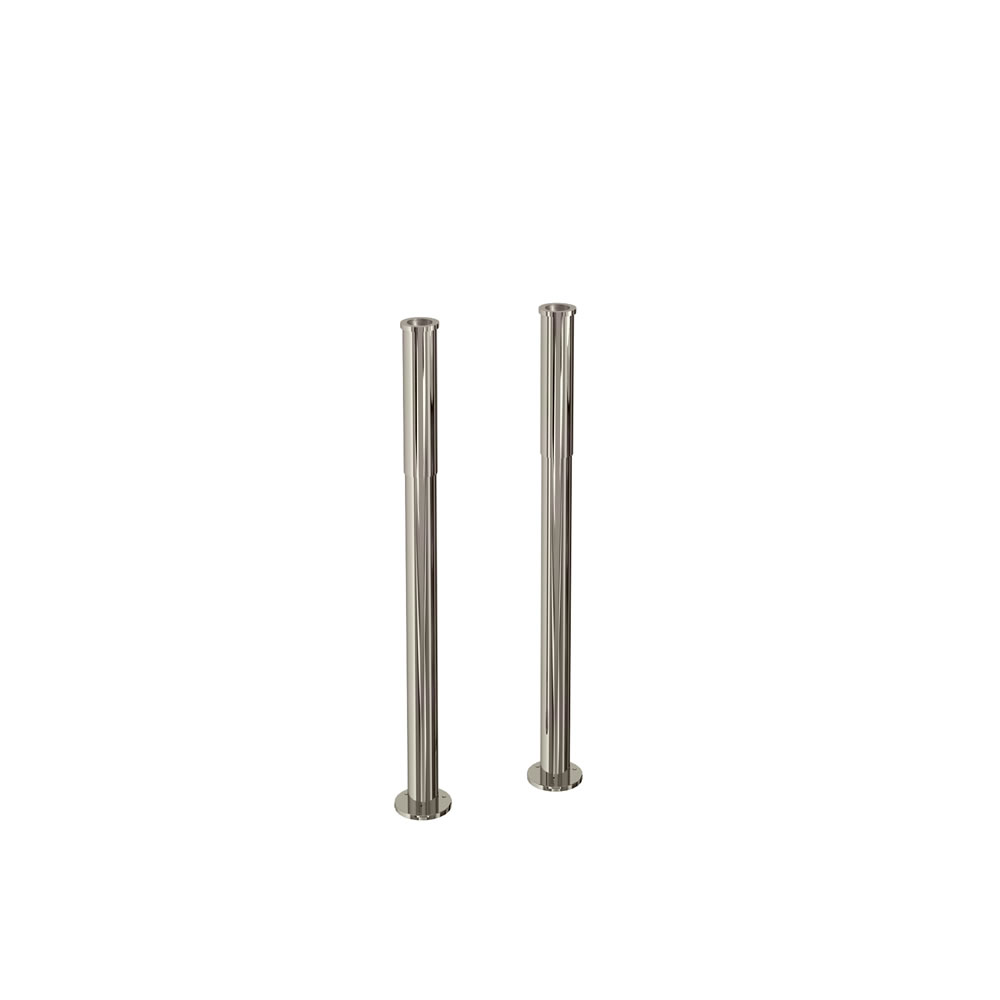

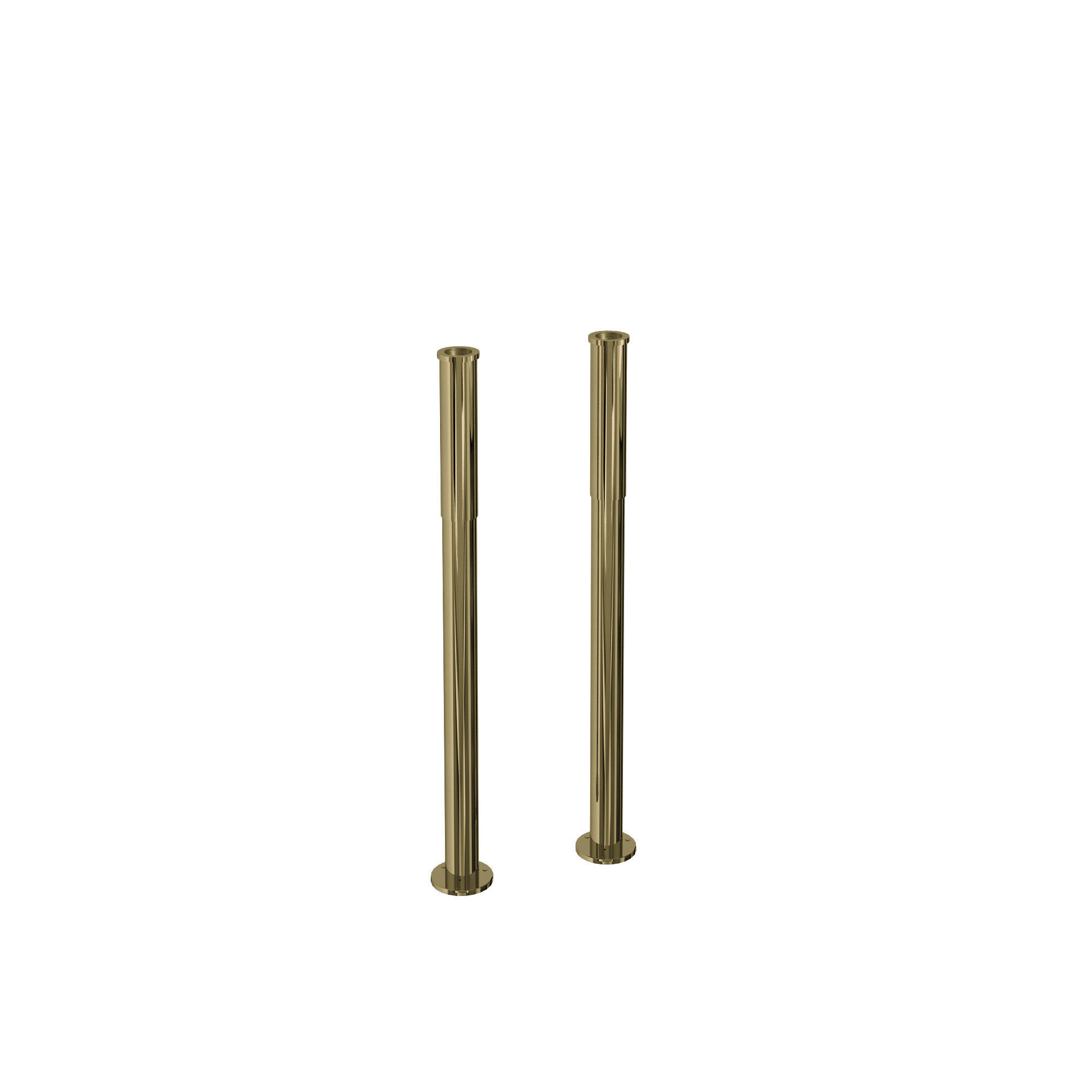

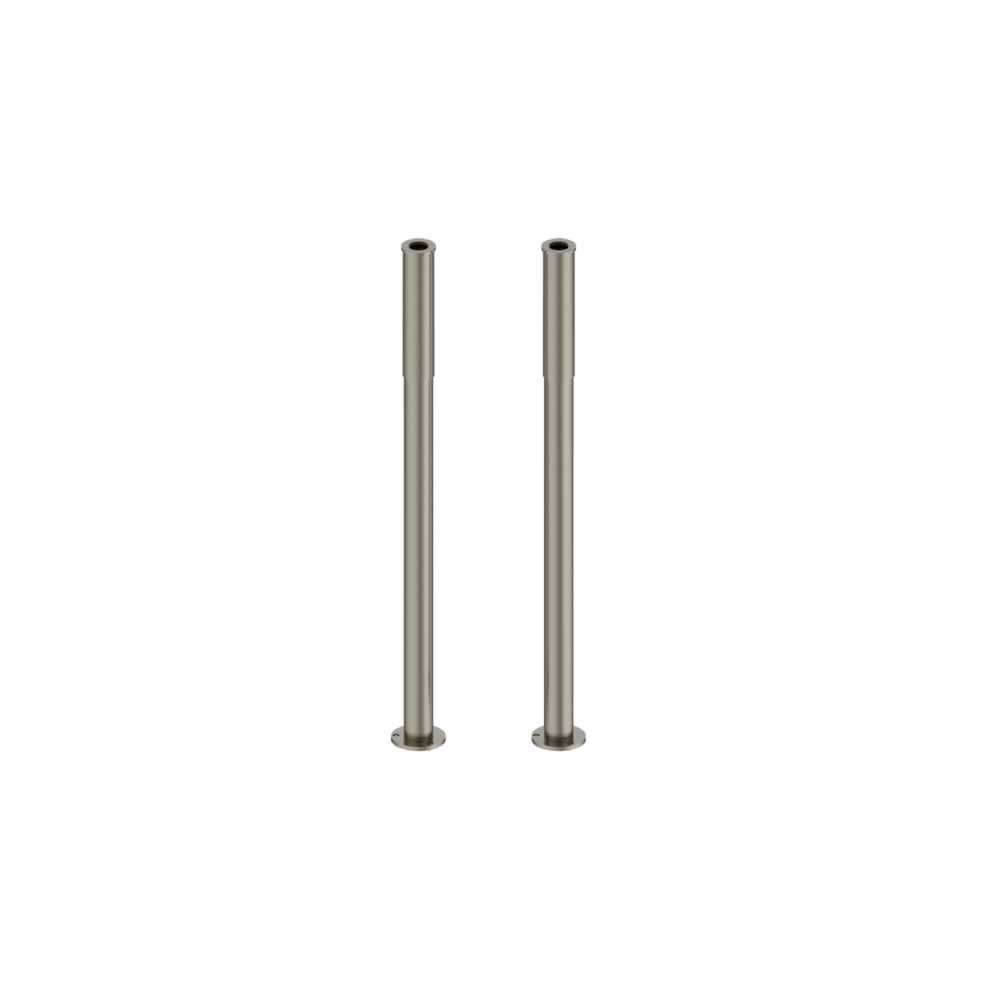

W6 Decorative shrouds
Gross Weight Including Packaging
W6 - shrouds - 2.9kg
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
N/A
Additional Information
These are for use with baths with rim-mounted fittings and can be used with deck-mounted taps.
Water runs through flexible hoses within the pipes
Spare parts (below shows available spare parts for this product)
SP929 wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
Downloads
Instructions - PDF - W6 (English)
Alternate Text Instructions - PDF - W6 (French)
2D CAD-File - DWG - W6
3D DWG - File - DWG  -  W6 Alternate Text
3D DXF - File - DXF  -  W6 Alternate Text
3D IGS - File - IGS  -  W6 Alternate Text

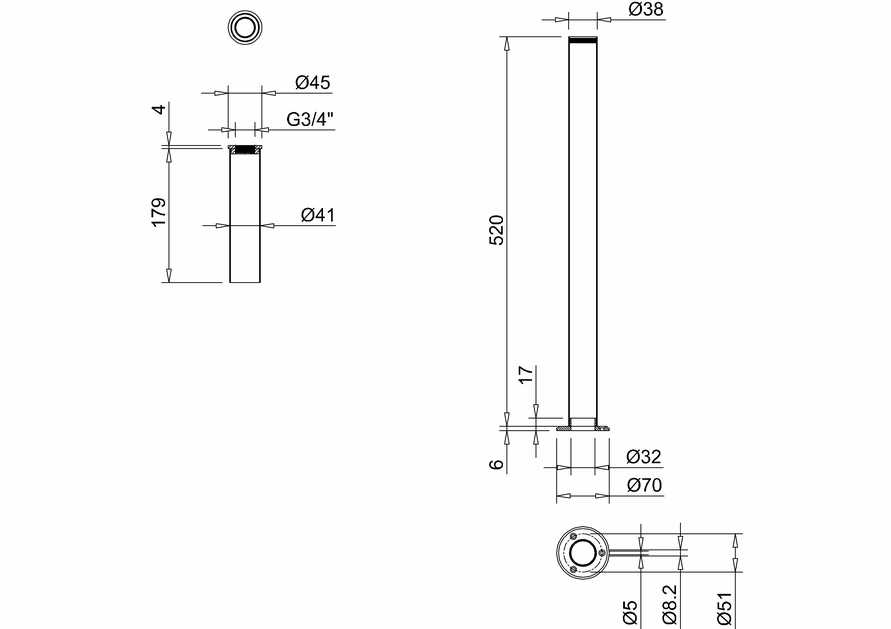

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
