Exposed bath overflow, plug & chain
Illustrated

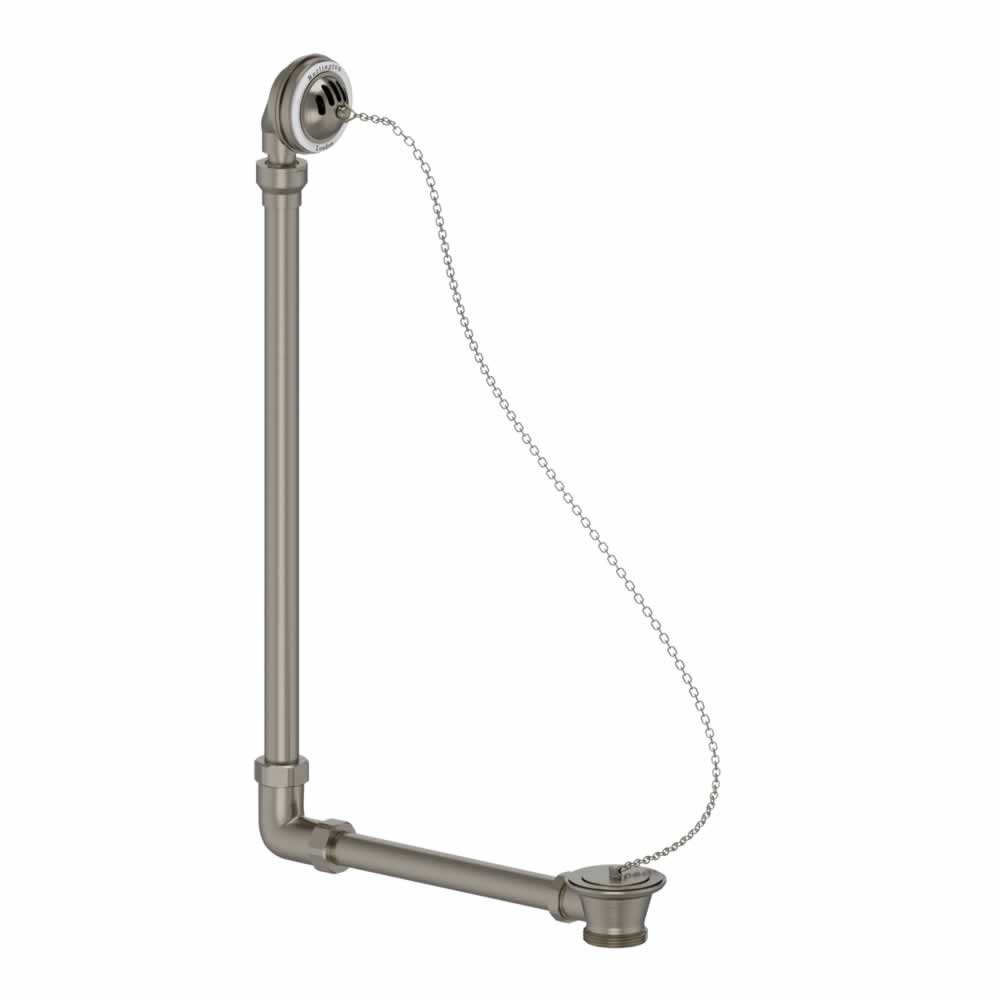

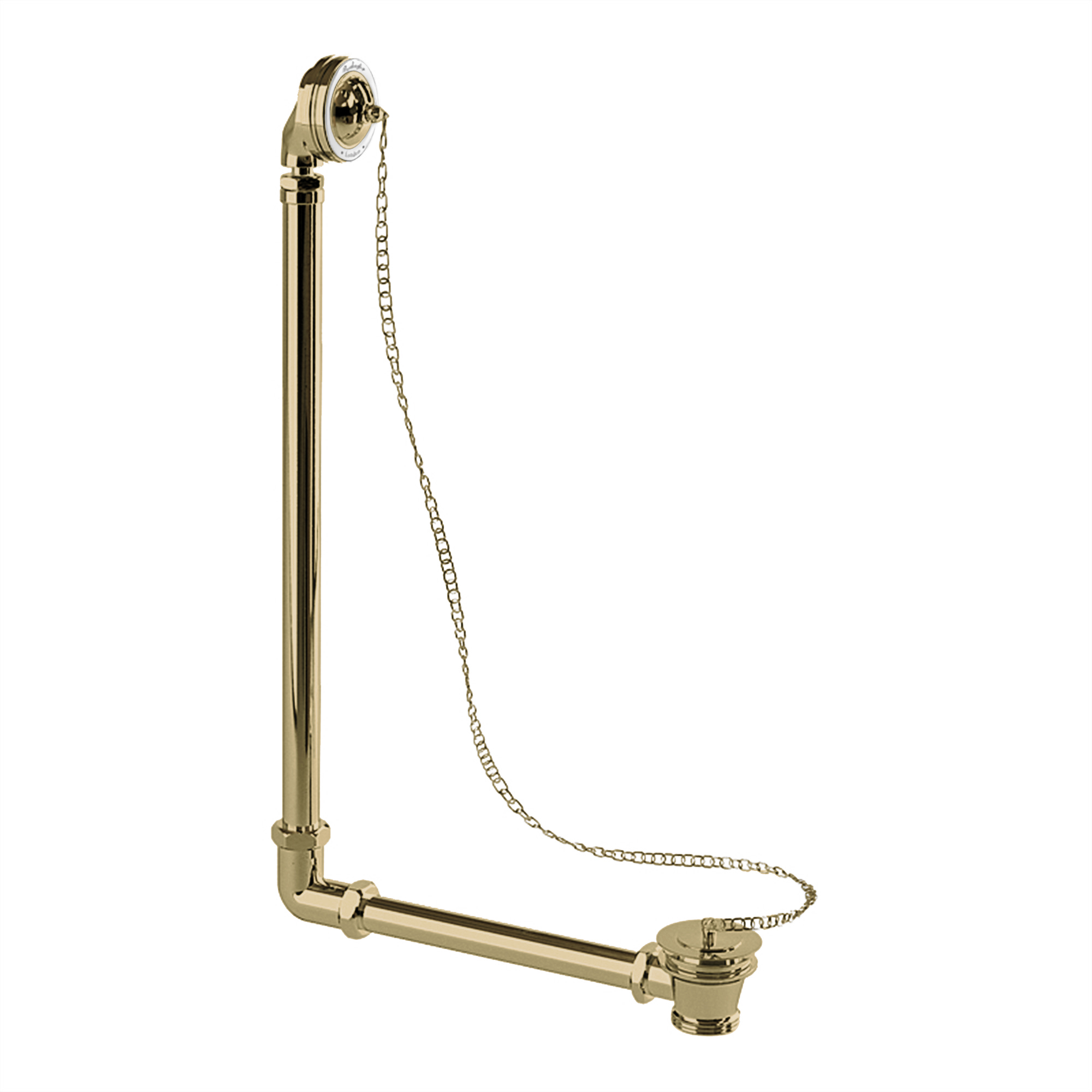

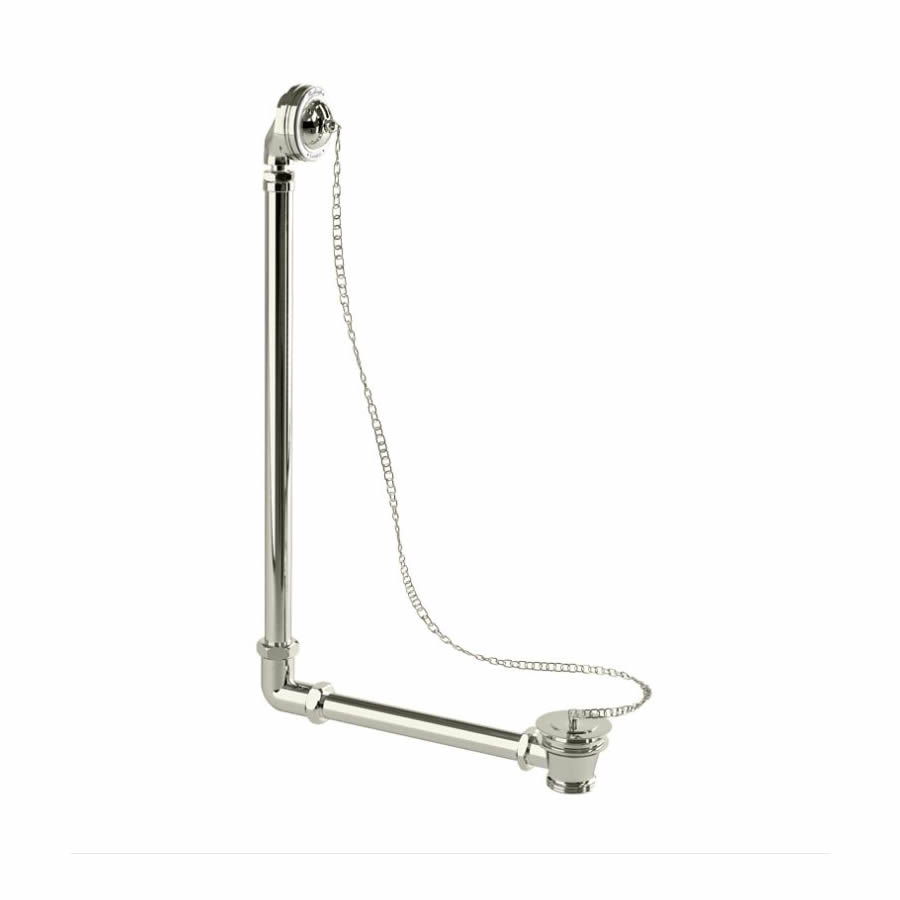

W4 Vertical bath overflow, plug & chain
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
N/A
Additional Information
This should be used with baths where the overflow is exposed.
Commonly used with CW3 p-trap and W21 connection pipe.
Spare parts (below shows available spare parts for this product)
SP316 bath chain for W4, W5, CW4, CW5
SP961 brass ring with Clearwater logo of product CW9, W4
SP108 ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP1002 connecting curved pipe of product W4, CW6, ARCW4 CHR (including the nuts & washers)
SP361 cover for W4, W5, CW4, CW5
SP377 GASKET & RUBBER WASHER FOR W4 WASTE HOUSING
SP1168 nut for W4, CW6, ARCW4 CHR
SP186 o-ring on the plug of product W4, W3, ARCW4 NKL, ARCW3 NKL
SP988 overflow base of W3, W4, ARCW3 CHR, ARCW4 CHR
SP166 overflow screw for product W3, W4, ARCW3 CHR, ARCW4 CHR
SP167 screw for waste of W4, W5
SP1171 vertical tube for W4, CW6, ARCW4 CHR
SP635 waste base for W4
Downloads
Instructions - PDF - W4 (English)
Alternate Text Instructions - PDF - W4 (French)
2D CAD-File - DWG - W4
3D DWG - File - DWG  -  W4 Alternate Text
3D DXF - File - DXF  -  W4 Alternate Text
3D IGS - File - IGS  -  W4 Alternate Text

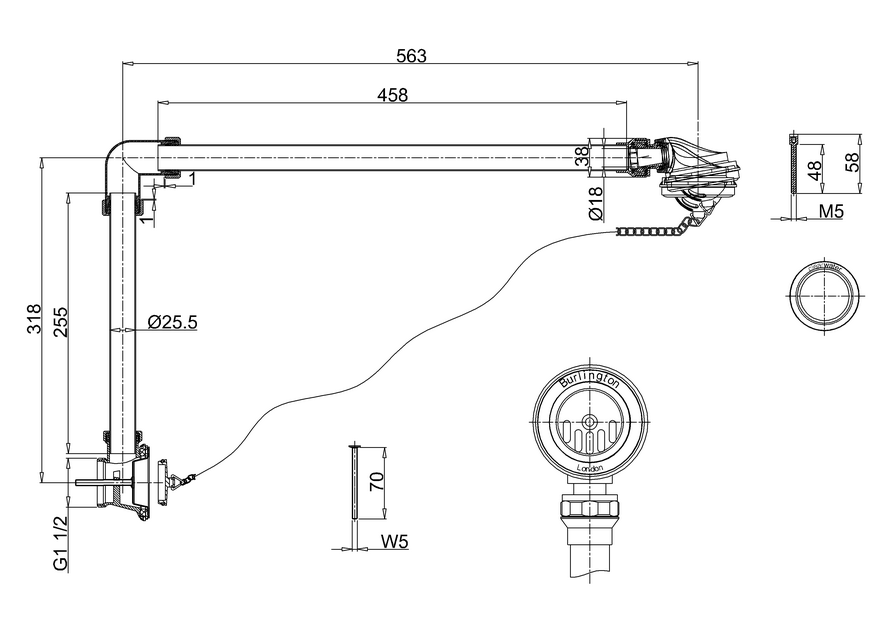

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
