Overflow bath filler
Product Options
Overflow bath filler single bath for single ended baths Overflow filler for double ended bath for double ended baths
Alternate Text
Illustrated

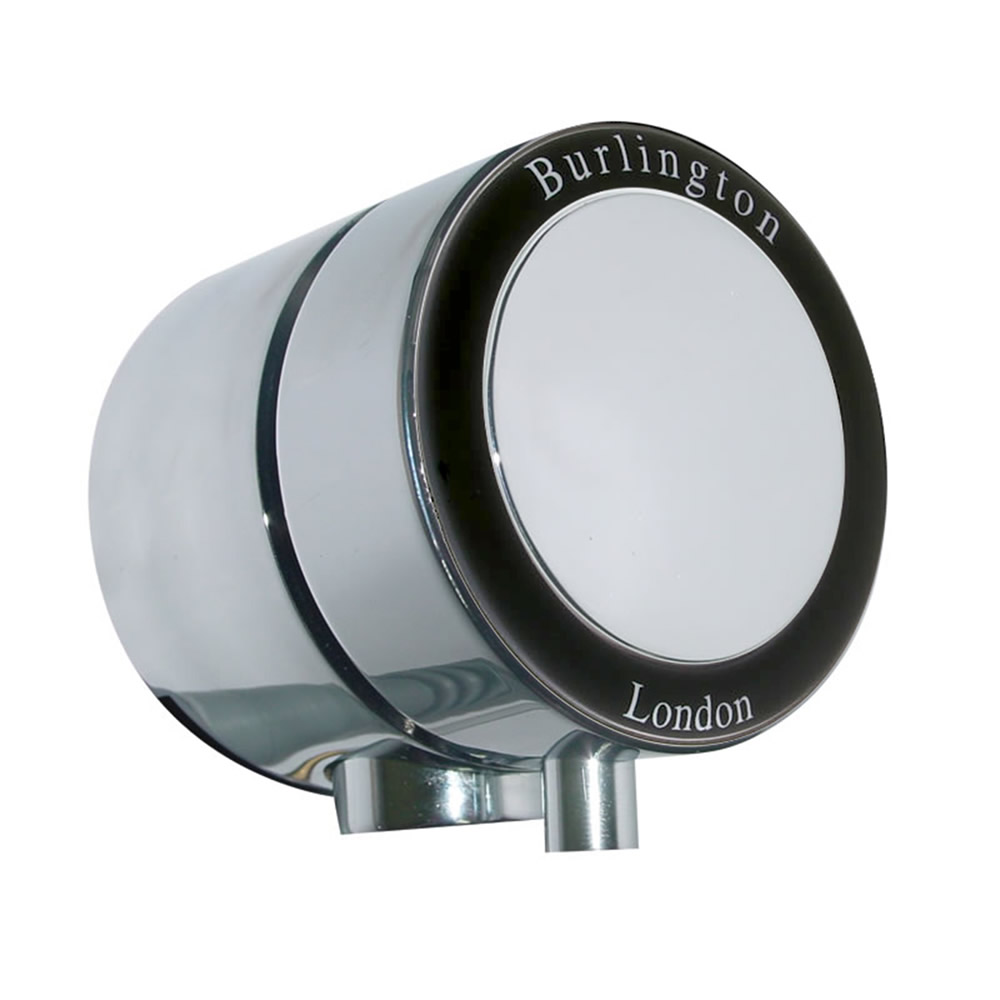

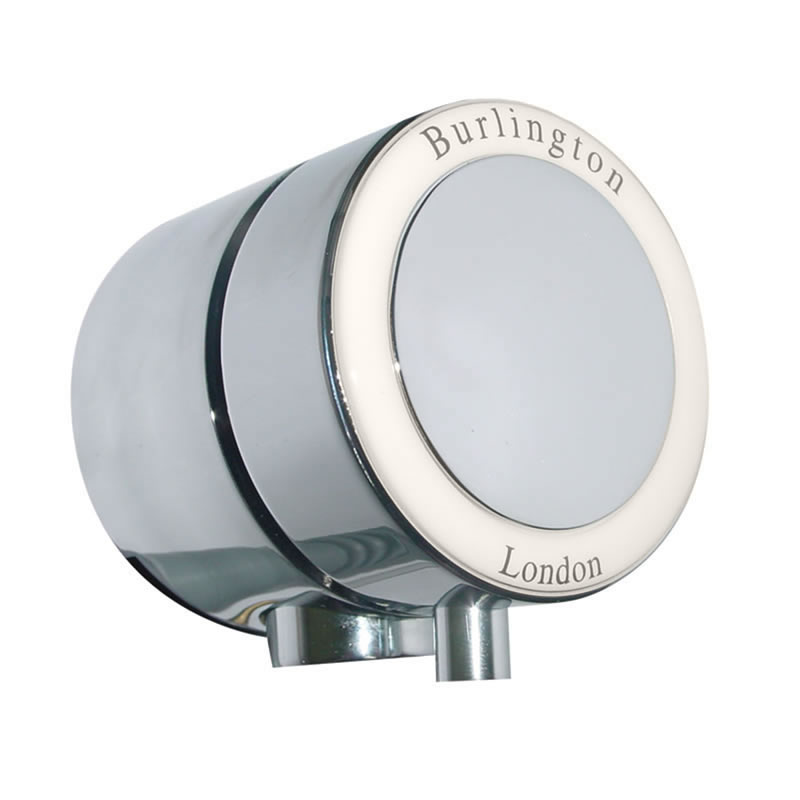

W15 Bath overflow filler for single ended bath
Guarantee*
10 years domestic installations
1 year commercial installations
Standards Information
N/A
Additional Information

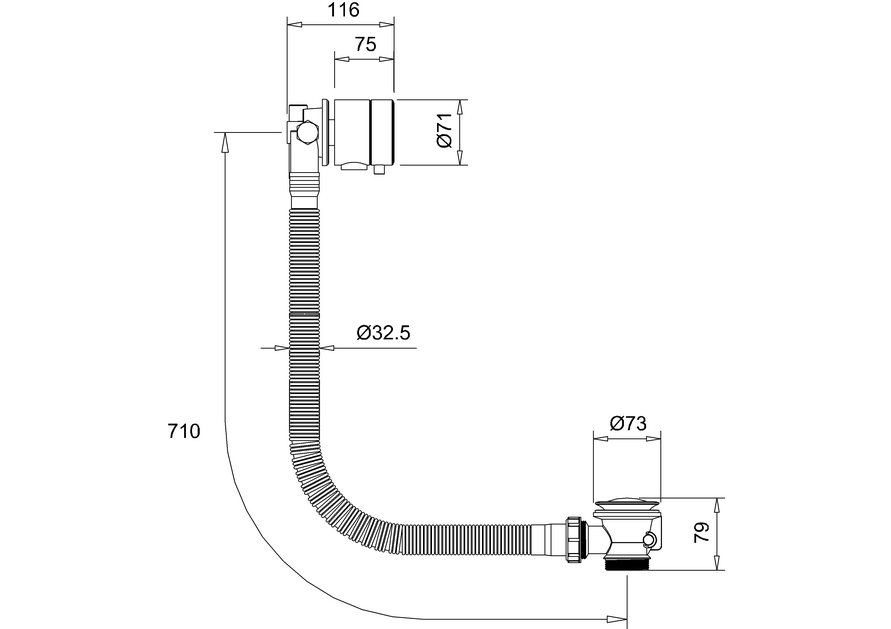

For use with single ended baths where the distance of the centre of the overflow to the centre of the waste is up to 710mm
The horizontal waste pipe can be cut to length on site
The vertical height of the bottle trap is adjustable by 80mm
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (aerator) 11  14.6  19  26.8  32.9  n/a  n/a
Spare parts (below shows available spare parts for this product)
SP417 bolt for CW9, W2, W15
SP108 ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
SP1166 housing for W15, W2
SP915 overflow cover of bath filler W2, W15 (including grub screw & handle)
SP1314 overflow outlet base for W15, W2
SP1266 plug hole of bath waste for CW9, W2, W15
SP808 plug of bath waste for product W15, W2, CW9
SP107 W2 W15-washer
Downloads
Instructions - PDF - W15 (English)
Alternate Text Instructions - PDF - W2 (French)
2D CAD-File - DWG - W15
3D DWG - File - DWG  -  W15 Alternate Text
3D DXF - File - DXF  -  W15 Alternate Text
3D IGS - File - IGS  -  W15 Alternate Text
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
