Tall S48 back to wall pan with soft close seat | BB Whitebook

Welcome to the Bathroom Brands Technical Whitebook

Tall S48 back to wall pan with soft close seat

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

48.1963 Tall back to wall WC

SS.1026 Carbamide soft close seat

Colour

48.1963 - pan - Gloss White

SS.1026 - seat - white

Material

48.1963 - pan - Vitreous China

SS.1026 - seat - carbamide

Size

48.1963 - 520 x 360 x 480mm

SS.1026 - 362 x 435 x 56mm

Nett Weight

48.1963 - pan - 28.9kg

SS.1026 - seat - 2kg

Gross Weight Including Packaging

48.1963 - pan - 31.4kg

SS.1026 - seat - 2.3kg

Packed Dimension

48.1963 - 560 x 400 x 555 = 0.1243 m3

SS.1026 - 435 x 368 x 58 = 0.0093 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2012

Downloads

Instructions - PDF - SS.1026 (English)
Instructions - PDF - SS.1026 (French)

2D CAD-File - DWG - 48.1963 SS.1026 (48.1963 SS.1026_LD.dwg)

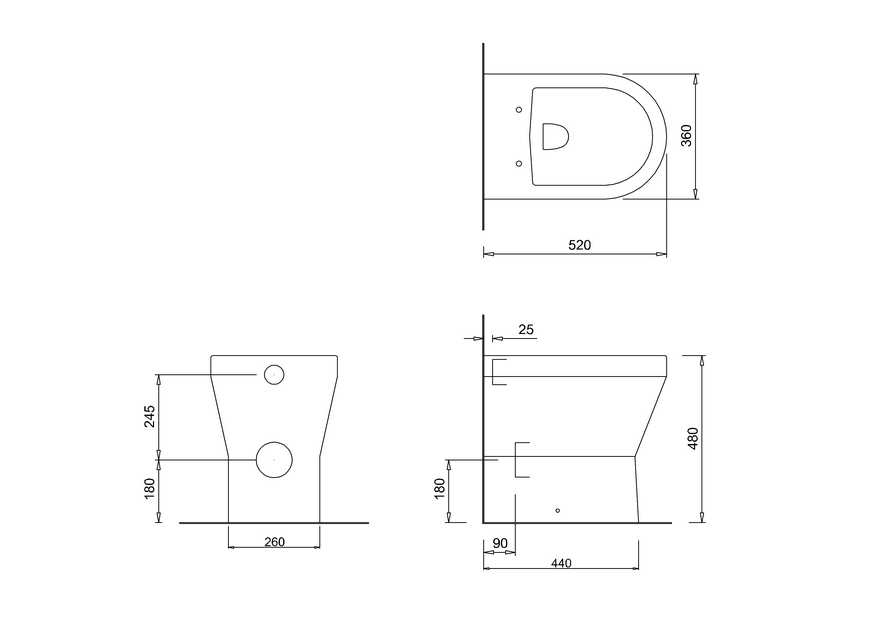

2D Drawing - PDF - 48.1963 SS.1026 (48.1963 SS.1026_LD.pdf) 2D Drawing - PDF - 48.1963 SS.1026

3D DWG - File - DWG - 48.1963 SS.1026 (3545.dwg)
3D DXF - File - DXF - 48.1963 SS.1026 (3545.dxf)
3D IGS - File - IGS - 48.1963 SS.1026 (3545.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
