Basin plug & chain - slotted
Product Options
Finish Options
|
Chrome
|

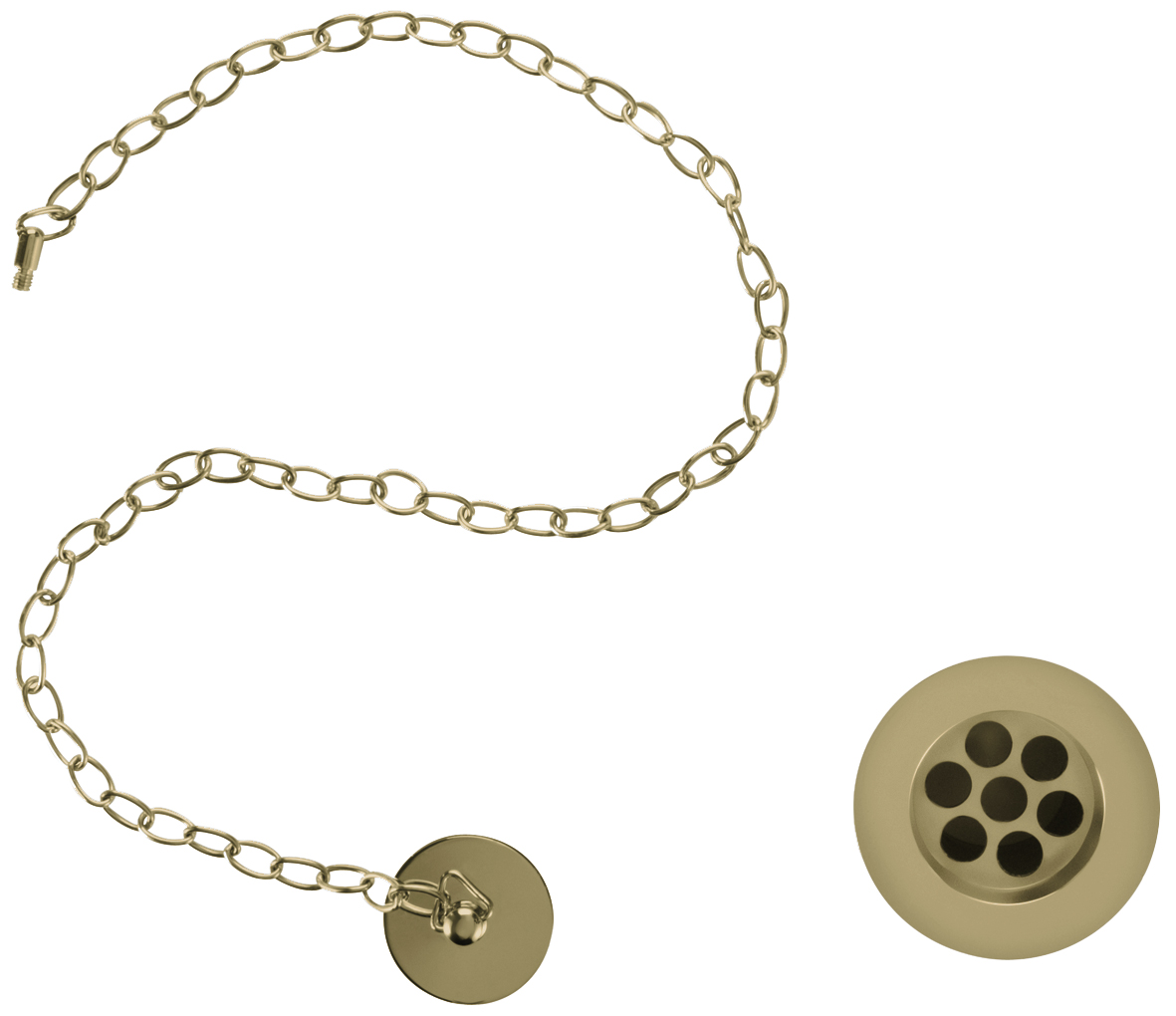

Gold
|

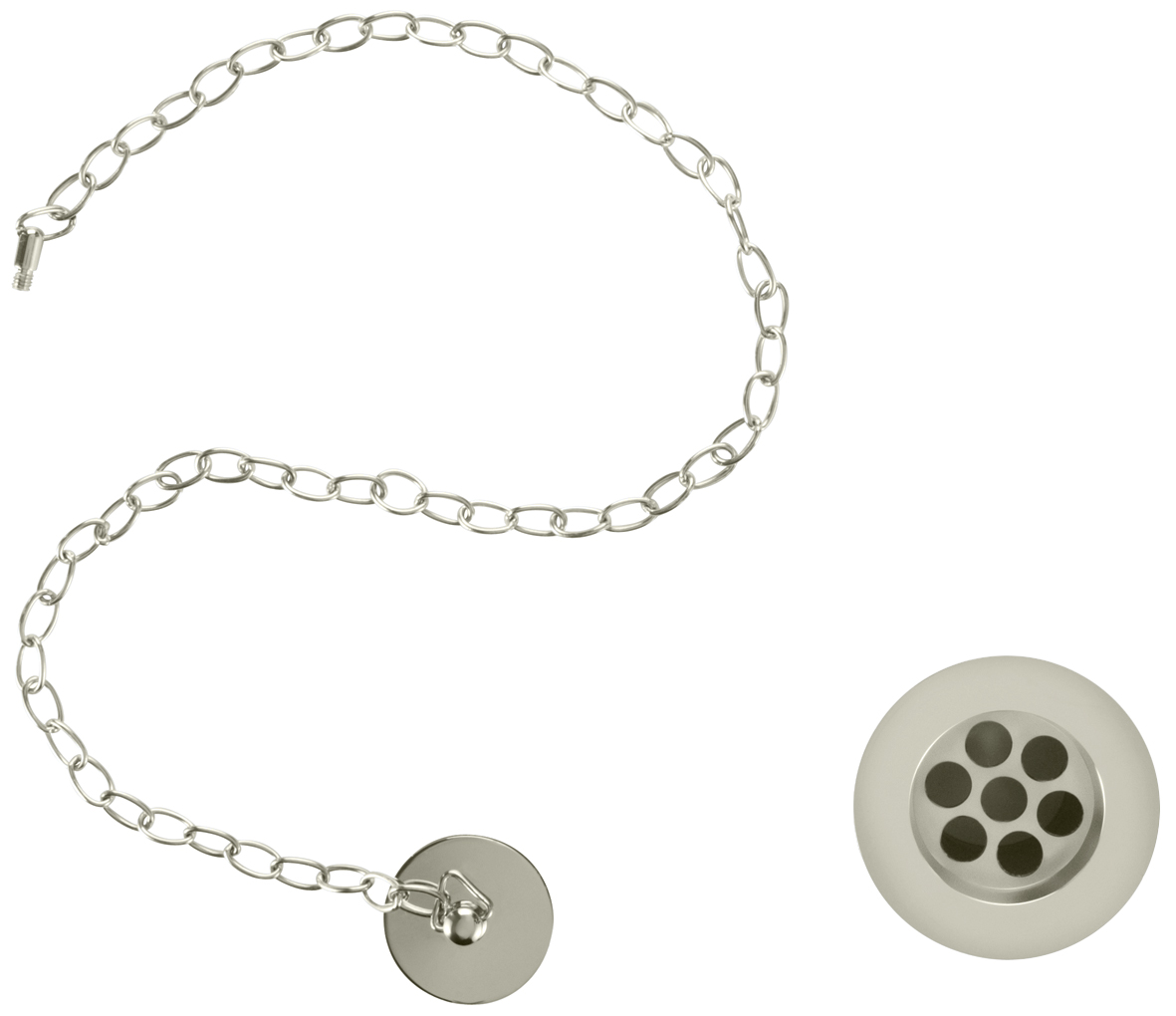

Nickel
|

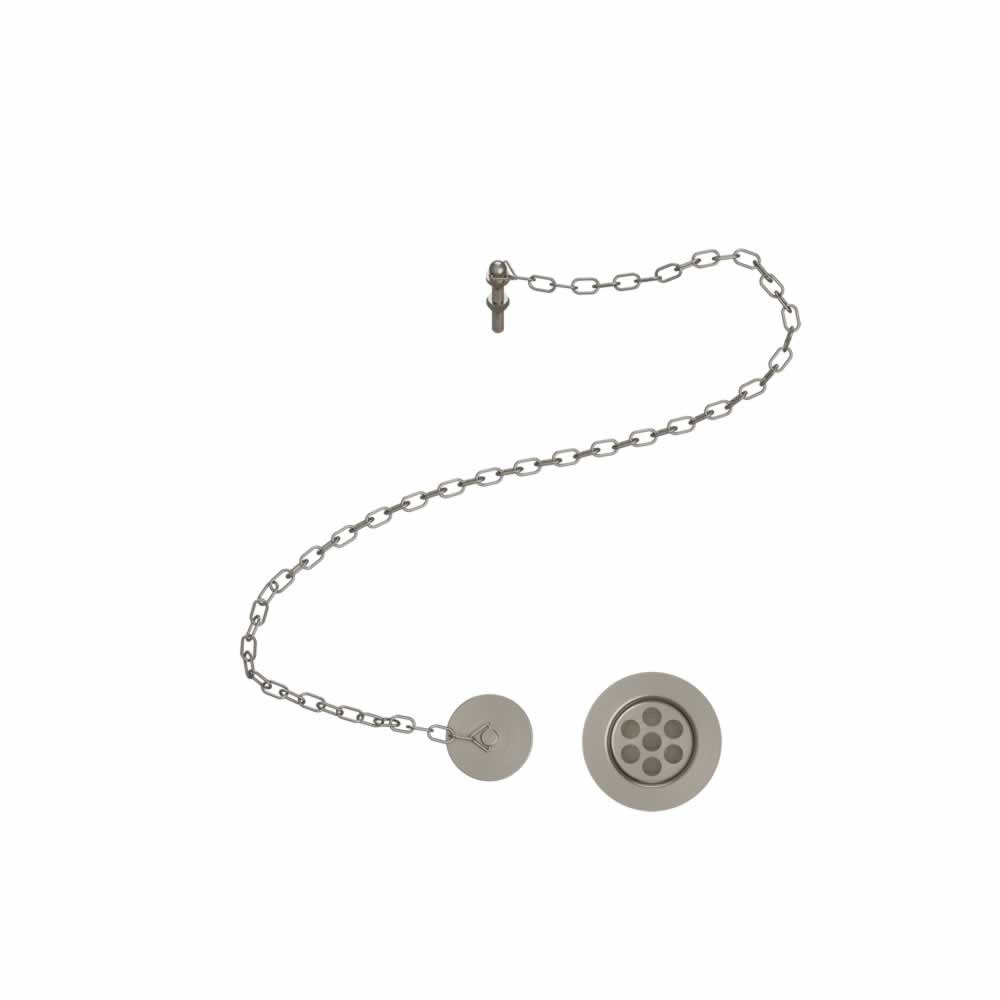

Brushed Nickel
|
As Shown
| W1 Basin plug & chain slotted. |
Colour
| W1 - waste - Polished Chrome |
Material
| W1 - waste - Brass |
Size
| W1 - 60 x 60 x 88mm |
Nett Weight
| W1 - waste - 0.29kg |
Gross Weight Including Packaging
| W1 - waste - 0.33kg |
Packed Dimension
| W1 - 110 x 70 x 70 = 0.0005 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
N/A |
Additional Information
|
For use with basins with an overflow |
|
Chain fits in the chain stay hole in the basin |
| SP1189 | black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1 |
| SP1235 | chain for T13, T13-QT, T16, T16-QT, W1 |
| SP540 | cone washer for all finishes products of W1 |
| SP884 | plug (including the chain, stud and nut) of product W1, T16, T16-QT |
| SP1103 | the grate for the W1, T16, T16-QT, T13, T13-QT |
Downloads
- 2D CAD-File - DWG - W1 (W1_LD.dwg)
-

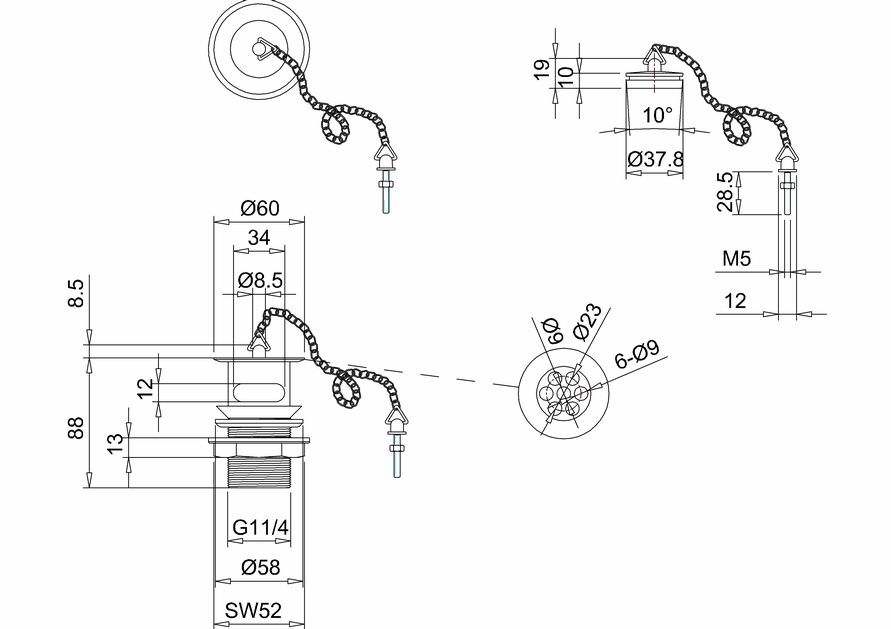

2D Drawing - PDF -
W1
(W1_LD.pdf)
2D Drawing - PDF - W1
-
3D DWG - File - DWG
-
W1
(W1.dwg)
-
3D DXF - File - DXF
-
W1
(W1.dxf)
-
3D IGS - File - IGS
-
W1
(W1.igs)
-
3D RFA BIMM Objects - File - RFA
-
W1
(W1.rfa)
