600mm Quattrocast basin
As Shown
| AQ6030 − |
Tap Hole Options
| 1 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
modern material adapted for use in the bathroom |
|
finsihed with a coat of polyester resin, giving a durable layer impervious to bacteria |
|
the base layer is a mixture of ground stone and bauxite formed into a fibre reinforced composite |
|
integrated overflow with AQUA overflow ring |
|
integrated basin that seemlessley covers the entire width of your furniture - so no joins to look at or clean |
|
Crystal or Sapphire basin tap |
Downloads
-
2D CAD-File - DWG -
AQ6030
(AQ6030_LD.dwg)
-

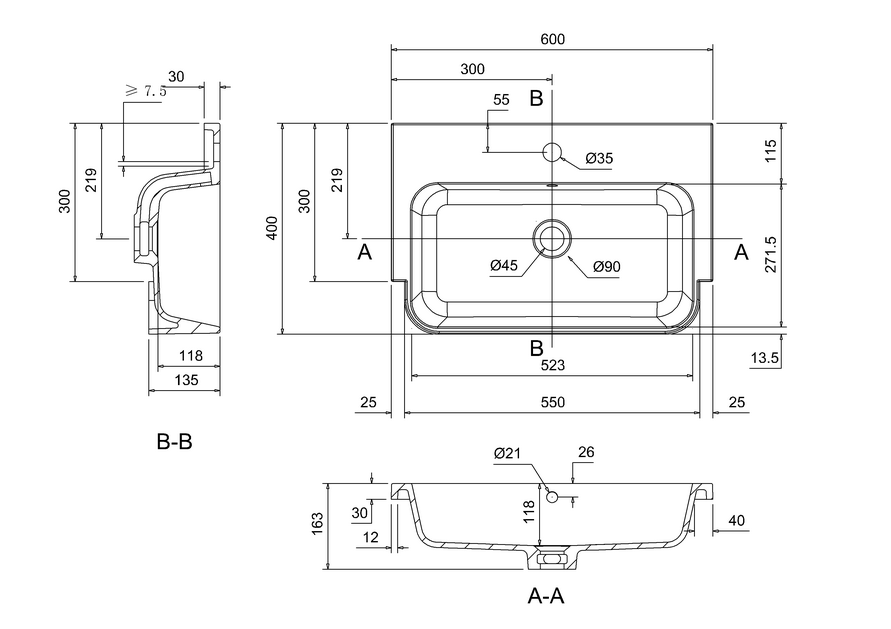

2D Drawing - PDF -
AQ6030
(AQ6030_LD.pdf)
2D Drawing - PDF - AQ6030
-
3D IGS - File - IGS
-
AQ6030
(600-400-Q6030_1.igs)
-
3D DWG - File - DWG
-
AQ6030
(600-400-Q6030_1.dwg)
-
3D DXF - File - DXF
-
AQ6030
(600-400-Q6030_1.dxf)
-
3D RFA BIMM Objects - File - RFA
-
AQ6030
(600-400-Q6030_1.rfa)
