Classic 65cm basin and Classic pedestal JET
Product Options
tap hole options
|
2 tap holes
|
As Shown
| B15 2TH JET Classic Rectangular Basin 65cm 2TH Jet |
| P6 JET Classic Pedestal (to suit B15 & B19 only) Jet |
| B15 2TH JET P6 - Combined product code |
Gross Weight Including Packaging
| B15 2TH JET - basin - 23kg |
| P6 JET - pedestal - 14.15kg |
Tap Hole Options
| 1,2 or 3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Downloads
-
2D CAD-File - DWG -
B15 2TH JET P6
(P6 B15 2TH_LD.dwg)
-

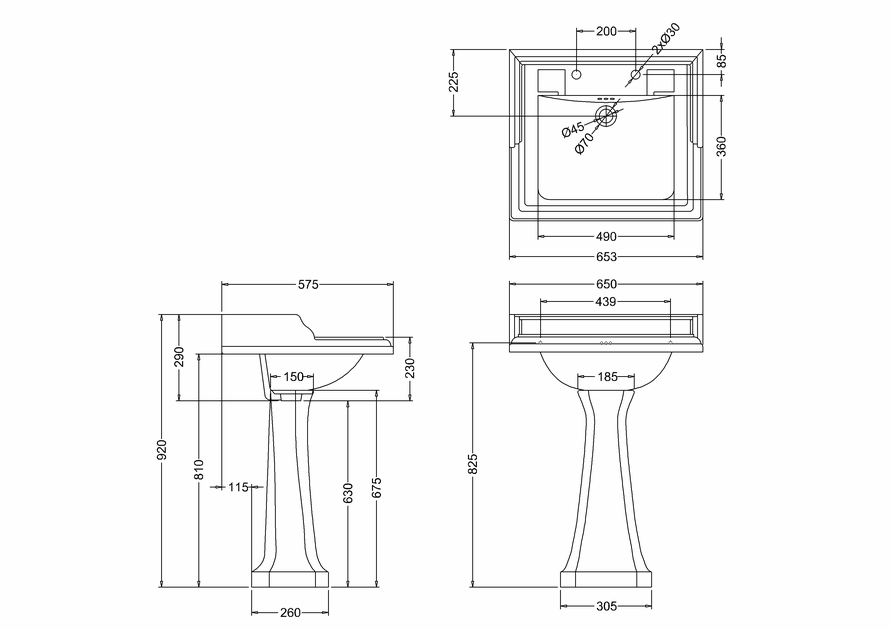

2D Drawing - PDF -
B15 2TH JET P6
(P6 B15 2TH_LD.pdf)
2D Drawing - PDF - B15 2TH JET P6
