Aqua dual flush plate

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

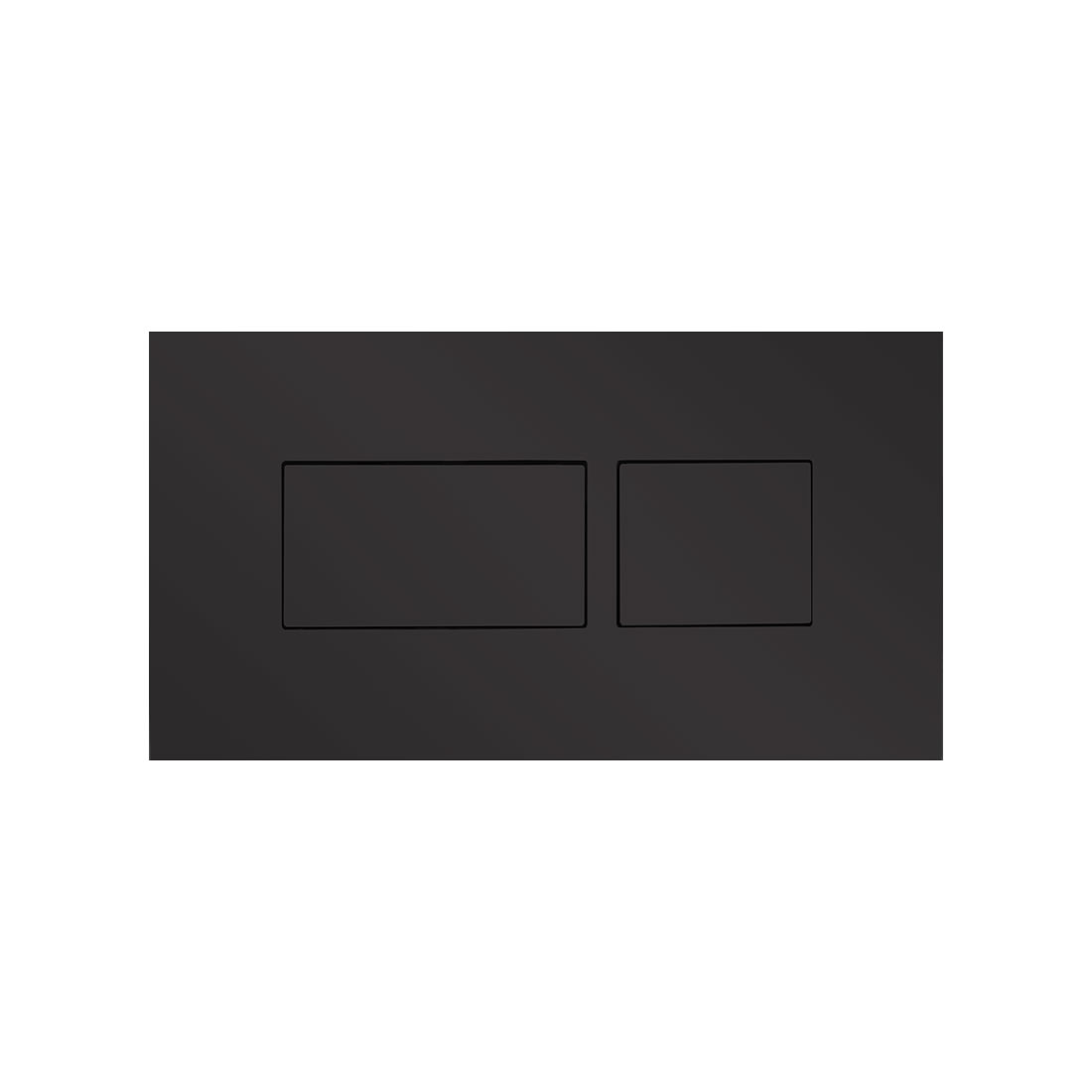

Dual flush plate Matt Black

Matt Black

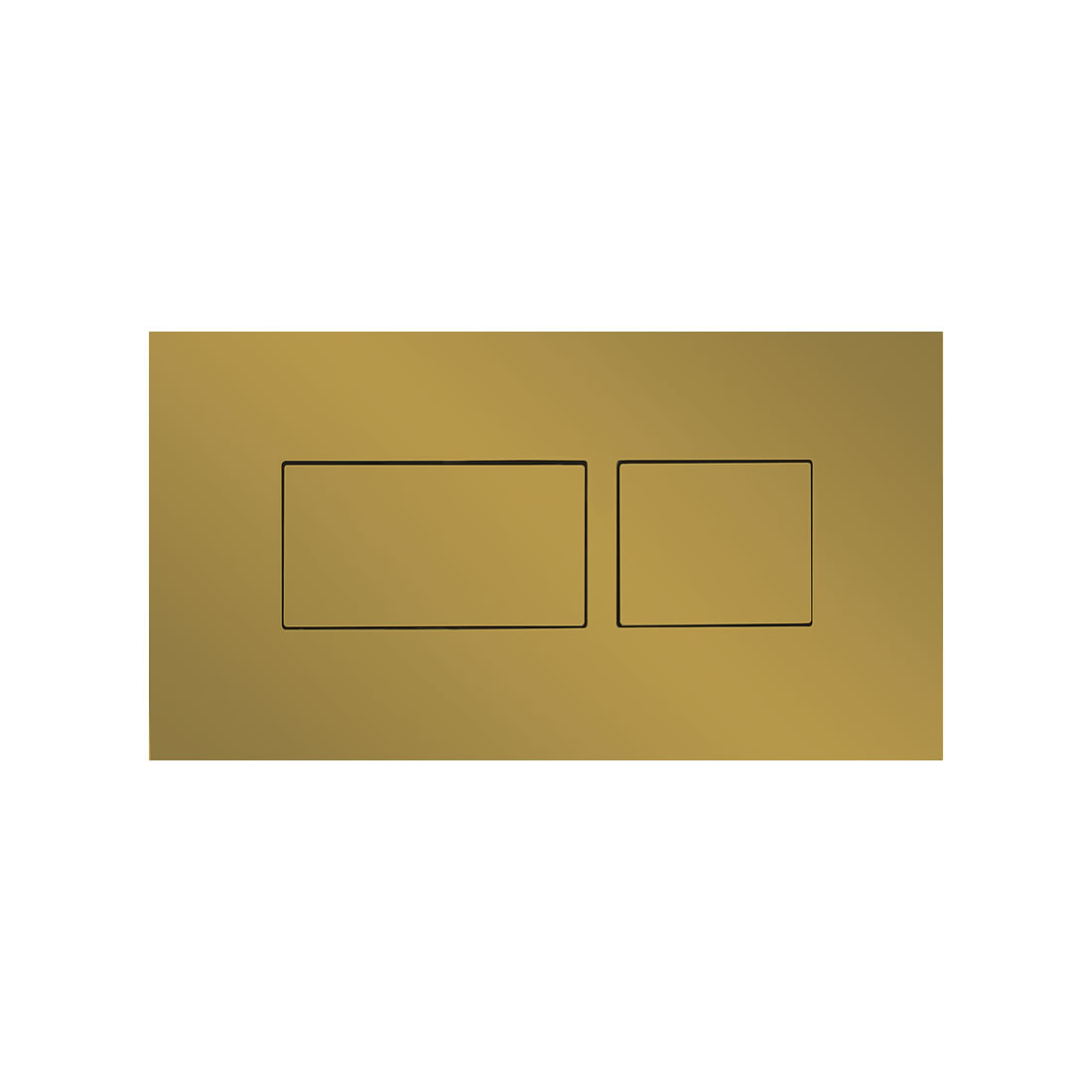

Dual flush plate Brushed Brass

Brushed brass

Alternate Text

As Shown

HOX.030MB Aqua dual flush plate Matt Black

Colour

HOX.030MB - flush plate - Matt Black

Material

HOX.030MB - flush plate - ABS

Size

HOX.030MB - 200 x 90 x 58.8mm

Nett Weight

HOX.030MB - flush plate - 0.16kg

Gross Weight Including Packaging

HOX.030MB - flush plate - 0.21kg

Packed Dimension

HOX.030MB - 210 x 70 x 100 = 0.0015 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - HOX.030MB (English)

2D CAD-File - DWG - HOX.030MB (HOX.030BBHOX.030MB.dwg)

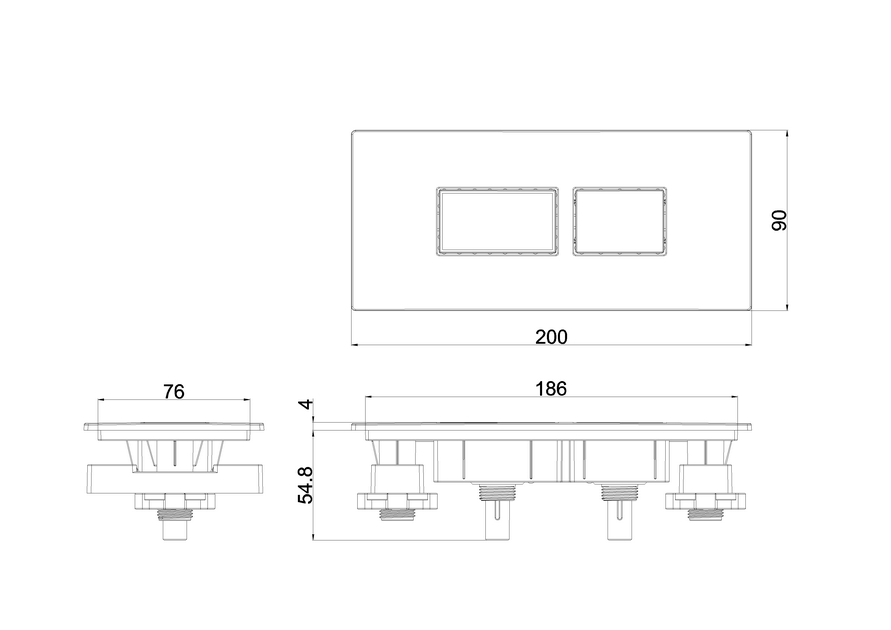

2D Drawing - PDF - HOX.030MB (HOX.030BBHOX.030MB.pdf) 2D Drawing - PDF - HOX.030MB

3D IGS - File - IGS - HOX.030MB (HOX.020.igs)
3D RFA BIMM Objects - File - RFA - HOX.030MB (HOX.020.rfa)

Lifestyle image 1 - tiff

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
