Fusion Basin Monobloc

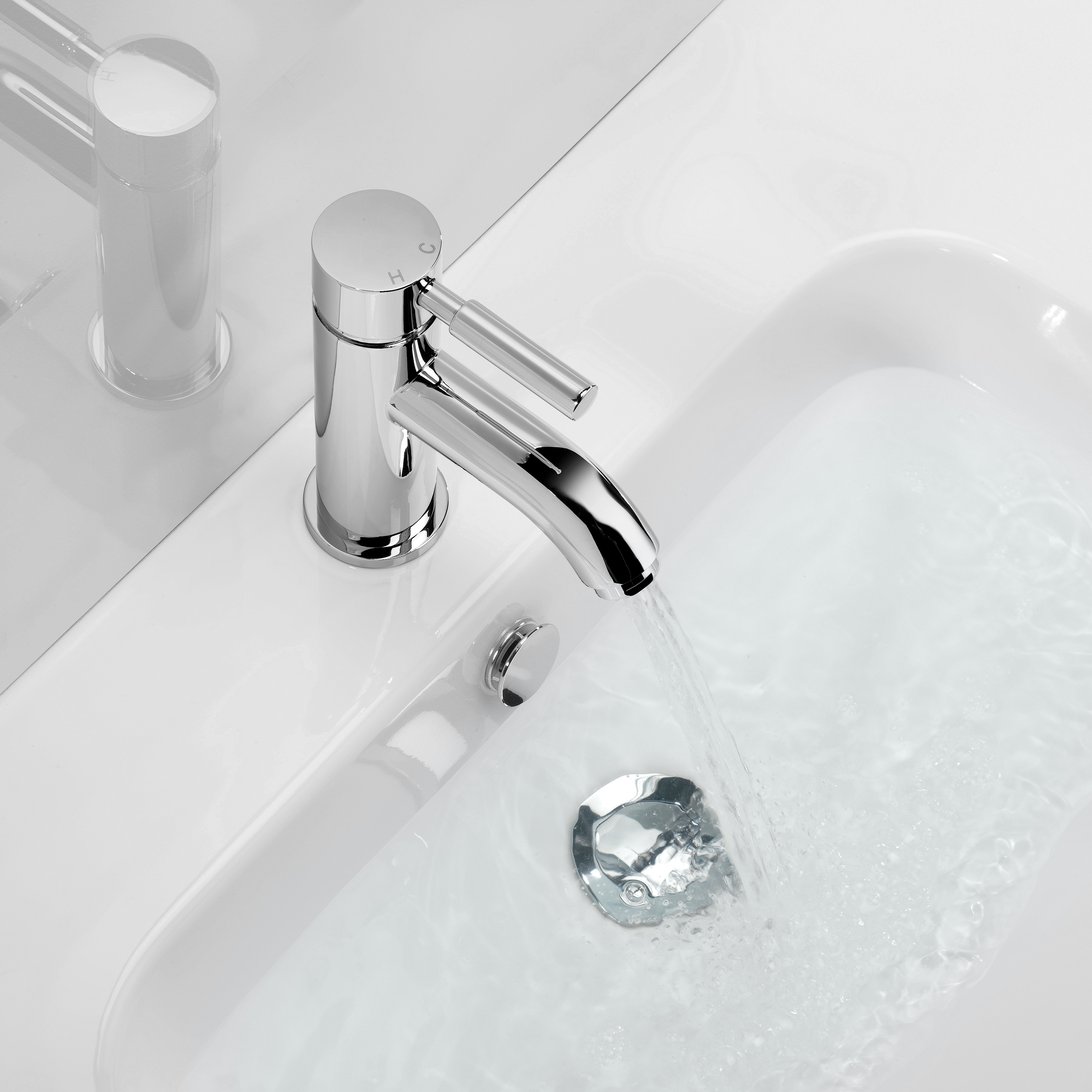

As Shown
| MBFU110P_V2 BASIN MONOBLOC WITH CLICK CLACK WASTE |
Material
| MBFU110P_V2 - tap - Brass |
Nett Weight
| MBFU110P_V2 - tap - 1.19kg |
Gross Weight Including Packaging
| MBFU110P_V2 - tap - 1.41kg |
Packed Dimension
| MBFU110P_V2 - 75 x 165 x 380 = 0.0047 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Projection: 114mm |
|
Style: Modern |
|
Mount Type: Deck Mounted |
|
Range: Fusion |
|
Water Pressure: LP |
|
Waste Type: With click clack waste |
| MB1031 | adora Single Flow Basin Cartridge |
| MB1055 | fusion(optional Sky) Basin Base Ring |
Downloads
- Specifications - PDF - MBFU110P+
-
2D CAD-File - DWG -
MBFU110P+
(mbfu110p-cad.dwg)
-

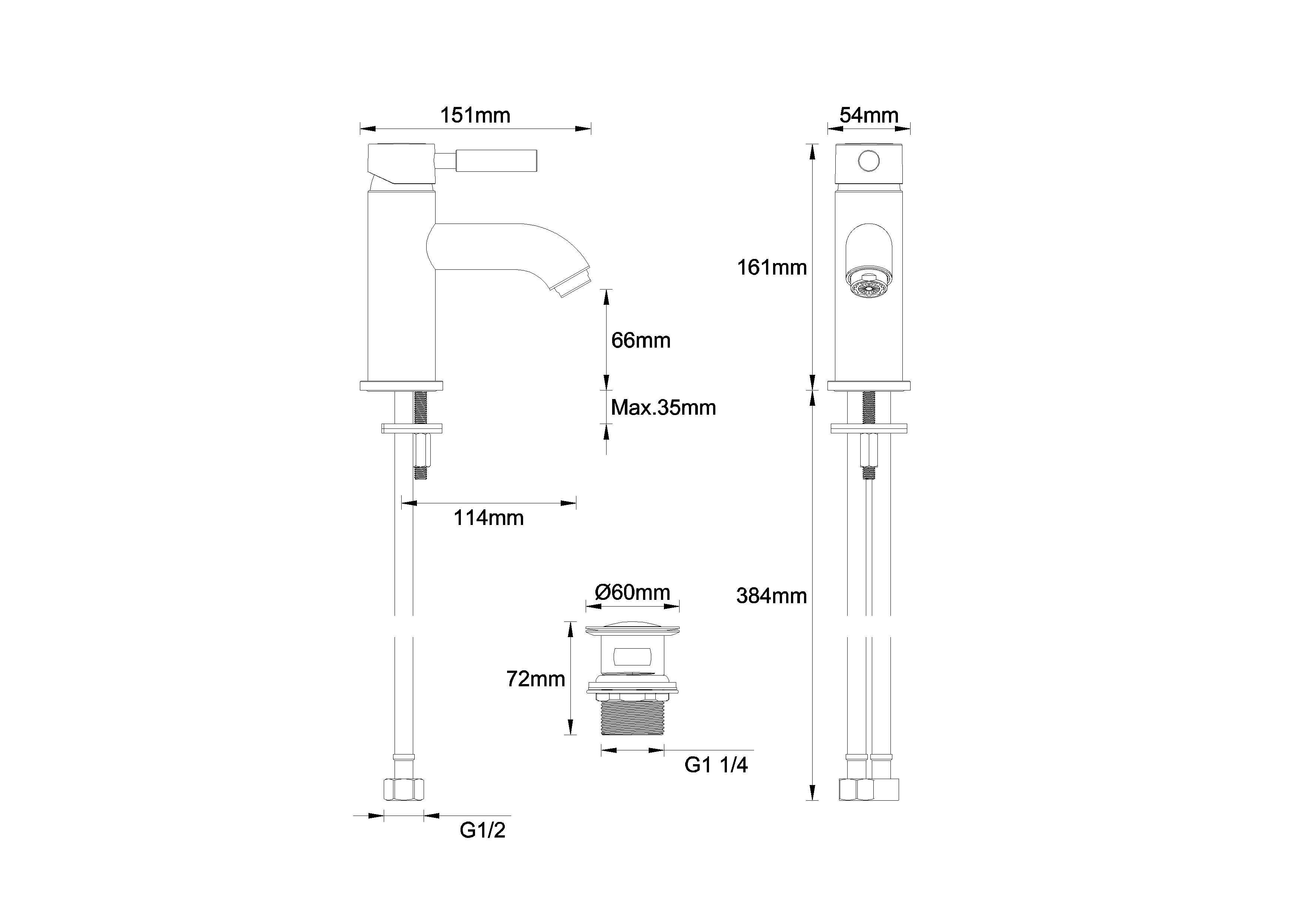

2D Drawing - PDF -
MBFU110P+
(mbfu110p-cad.pdf)
2D Drawing - PDF - MBFU110P+
