Burlington Seat Handle

asaq2.Model.Web_product_new?.web_name

Product Options

Finish options

Burlington Seat Handle Gold

Gold

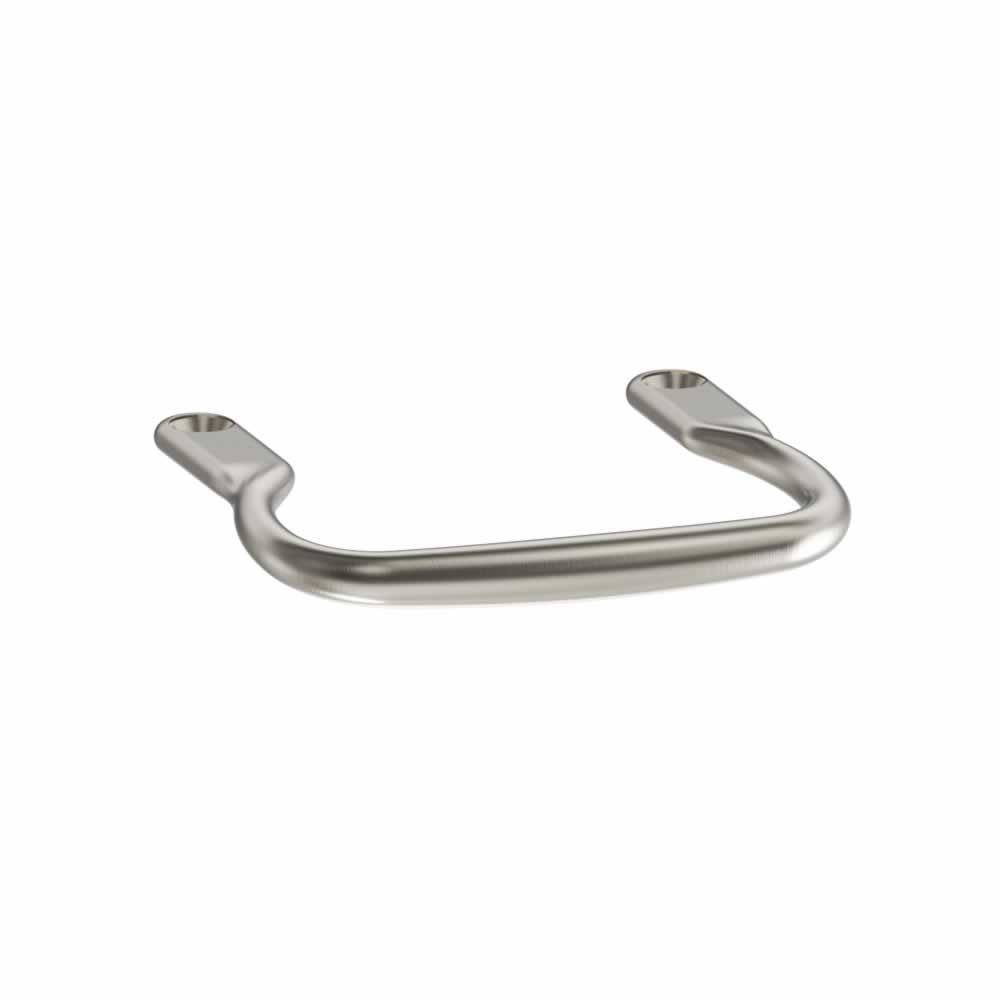

Burlington Seat Handle Brushed Nickel

Brushed Nickel

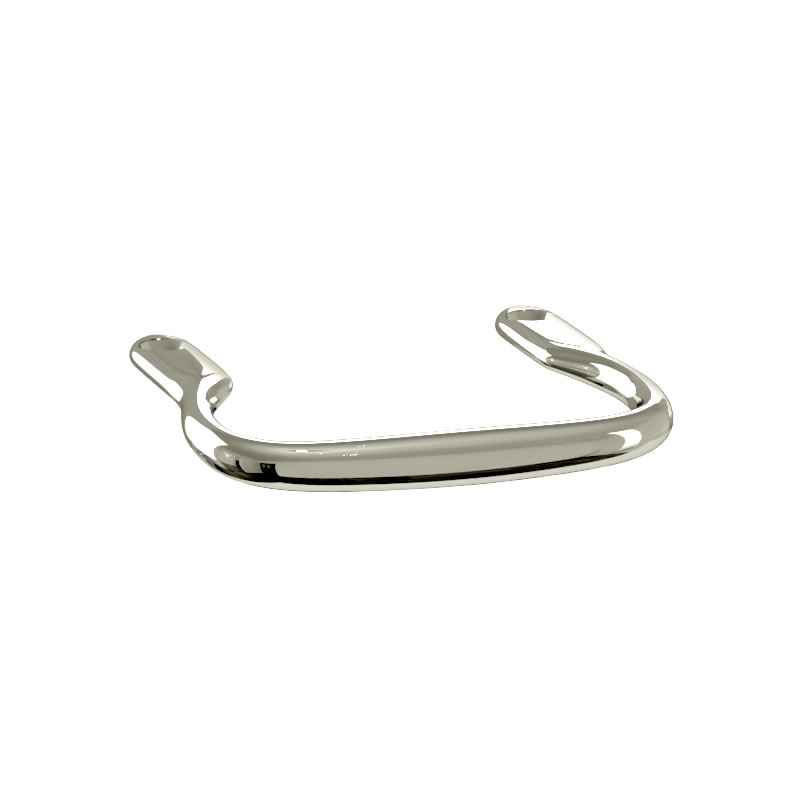

Burlington Seat Handle Nickel

Nickel

Alternate Text

As Shown

A51GOLD Burlington seat handle GOLD

Colour

A51GOLD - accessories - Polished Gold

Material

A51GOLD - accessories - Zinc Alloy

Size

A51GOLD - 50 x 56 x 8mm

Nett Weight

A51GOLD - accessories - 0.04kg

Gross Weight Including Packaging

A51GOLD - accessories - 0.07kg

Packed Dimension

A51GOLD - 60 x 60 x 100 = 0.0004 m3

Guarantee

Standards Information

BS EN248:2002

Downloads

Instructions - PDF - A51GOLD (English)
Instructions - PDF - A51GOLD (French)

2D CAD-File - DWG - A51 GOLD (A51 2D.dwg)

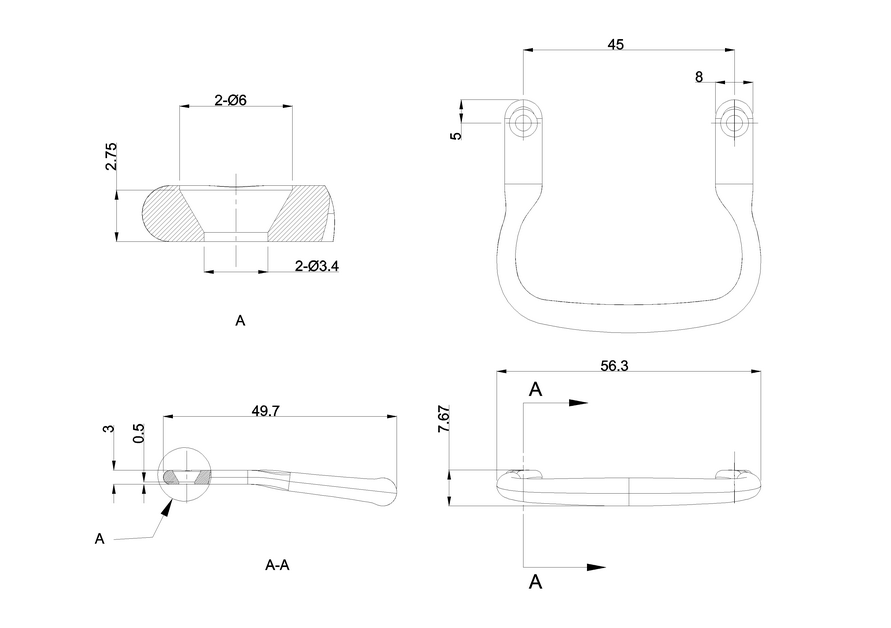

2D Drawing - PDF - A51 GOLD (A51 2D.pdf) 2D Drawing - PDF - A51 GOLD

3D DWG - File - DWG - A51 GOLD (A51-3D.dwg)
3D RFA BIMM Objects - File - RFA - A51 GOLD (A51.rfa)
3D STP - File - STP - A51 GOLD (A51.stp)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
