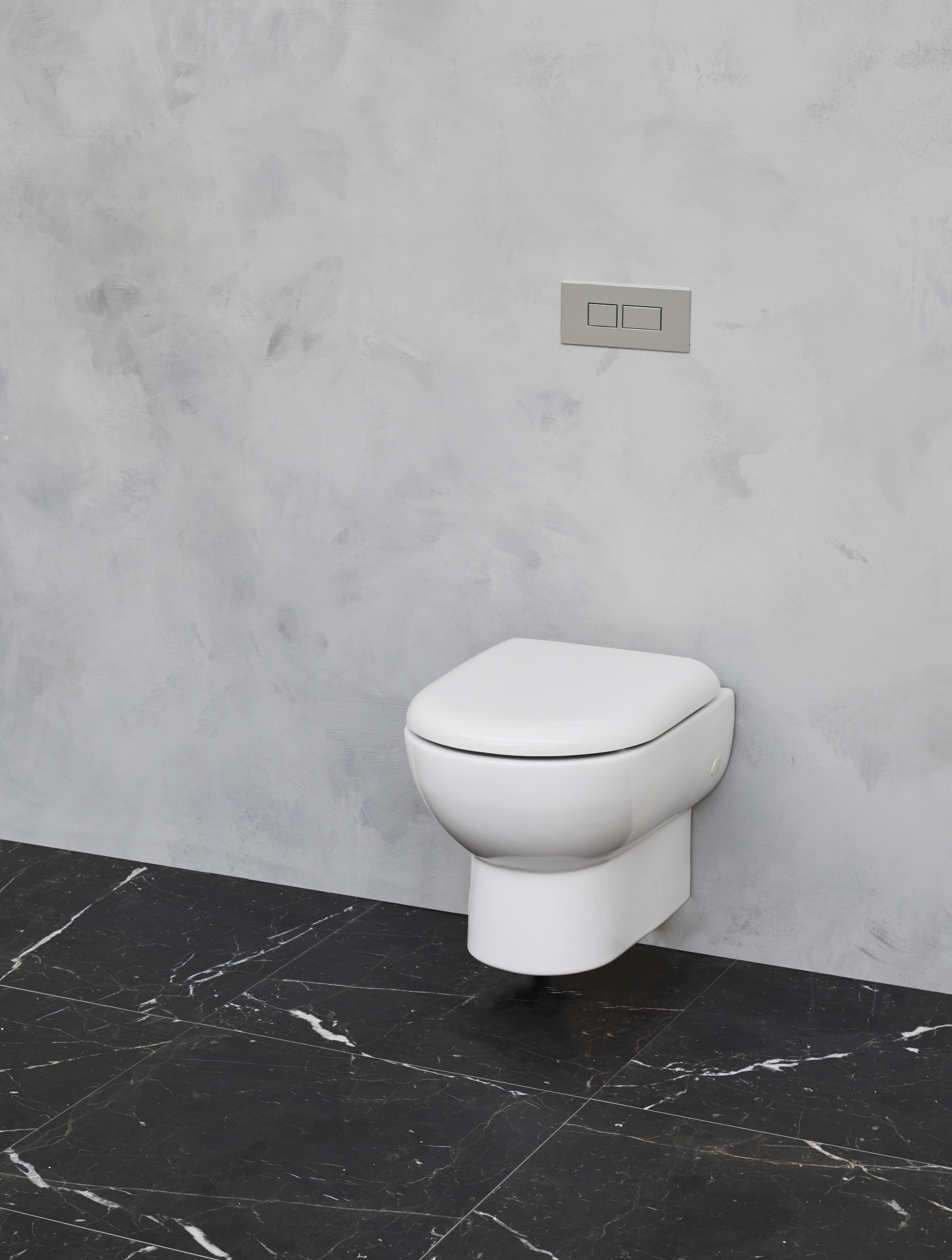

Compact wall hung pan with soft close seat
As Shown
| CM.0005 Compact wall hung WC |
| SS.1028 Compact carbamide soft close seat |
Nett Weight
| CM.0005 - pan - 20.54kg |
| SS.1028 - seat - 2.19kg |
Gross Weight Including Packaging
| CM.0005 - pan - 22.59kg |
| SS.1028 - seat - 2.35kg |
Packed Dimension
| CM.0005 - 525 x 395 x 455 = 0.0944 m3 |
| SS.1028 - 430 x 373 x 56 = 0.009 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
| SP1150 | the fitting kit for 15.B.35306, 15.B.35303, CM.0005 |
Downloads
- Instructions - PDF - CM.0005 (English)
- Instructions - PDF - SS.1028 (English)
- Instructions - PDF - SS.1028 (French)
- Instructions - PDF - CM.0005 (French)
-
2D CAD-File - DWG -
SS.1028 CM.0005
(SS.1028 CM.0005_LD.dwg)
-

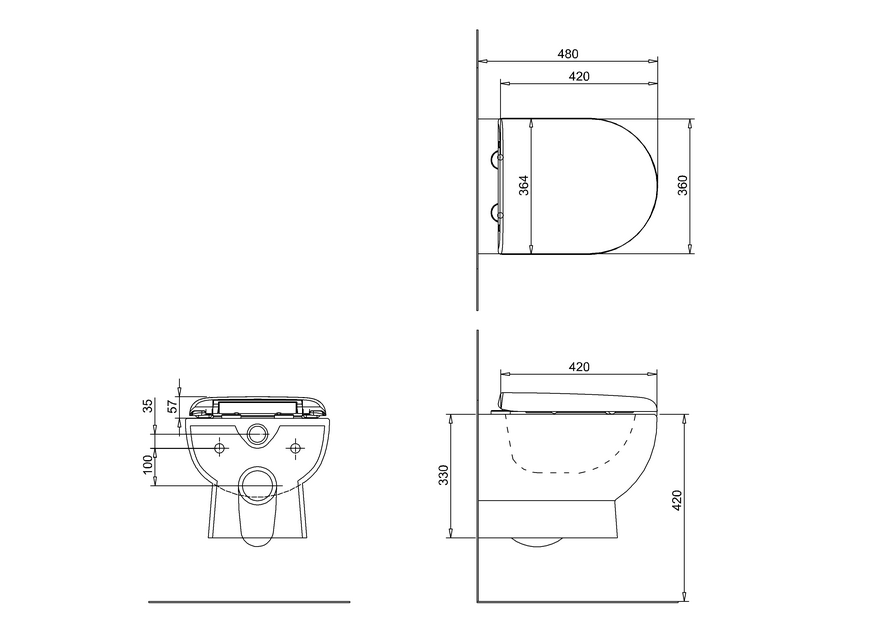

2D Drawing - PDF -
SS.1028 CM.0005
(SS.1028 CM.0005_LD.pdf)
2D Drawing - PDF - SS.1028 CM.0005
-
3D DWG - File - DWG
-
SS.1028 CM.0005
(7844.dwg)
-
3D DXF - File - DXF
-
SS.1028 CM.0005
(7844.dxf)
-
3D IGS - File - IGS
-
SS.1028 CM.0005
(7844.igs)
