Arcade back-to-wall bidet with overflow & one tap hole

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ARC7 −

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14528:2015

ARCSP9

arcade floor fixings for pan and bidet - nickel

Downloads

2D CAD-File - DWG - ARC7 (ARC7_LD.dwg)

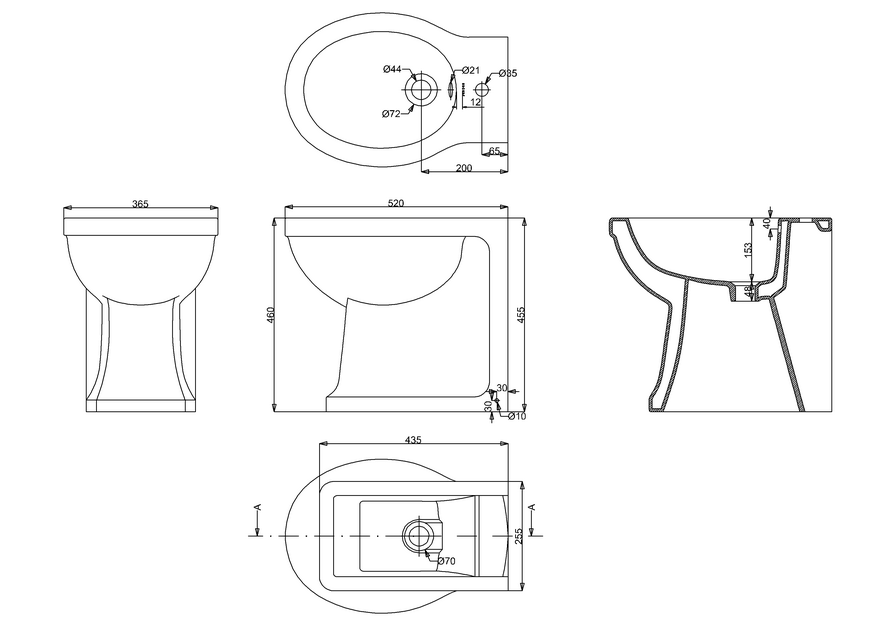

2D Drawing - PDF - ARC7 (ARC7_LD.pdf) 2D Drawing - PDF - ARC7

3D DWG - File - DWG - ARC7 (ARC7 bidet.dwg)
3D DXF - File - DXF - ARC7 (ARC7 bidet.dxf)
3D IGS - File - IGS - ARC7 (ARC7 bidet.igs)
3D RFA BIMM Objects - File - RFA - ARC7 (ARC7 bidet.rfa)

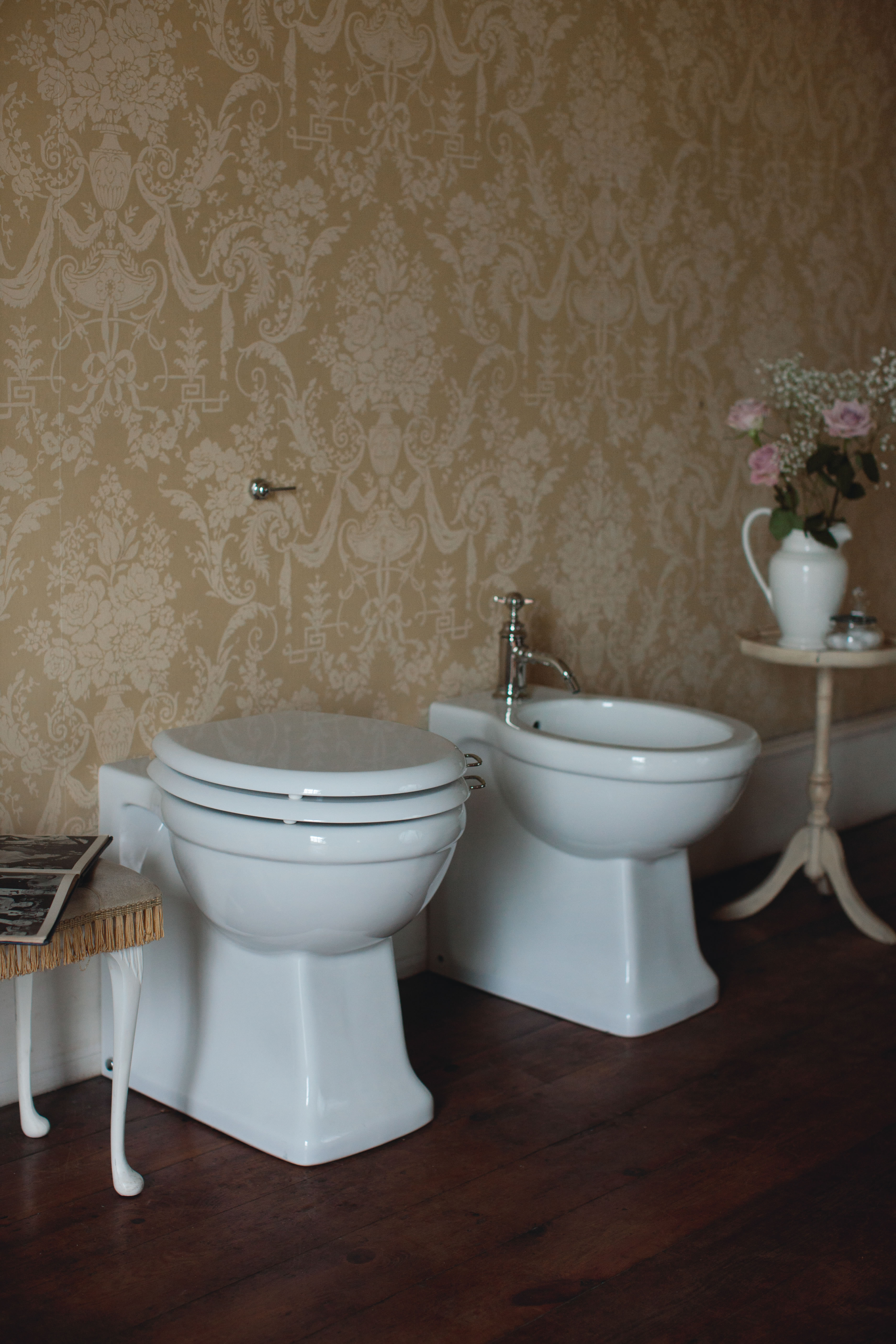

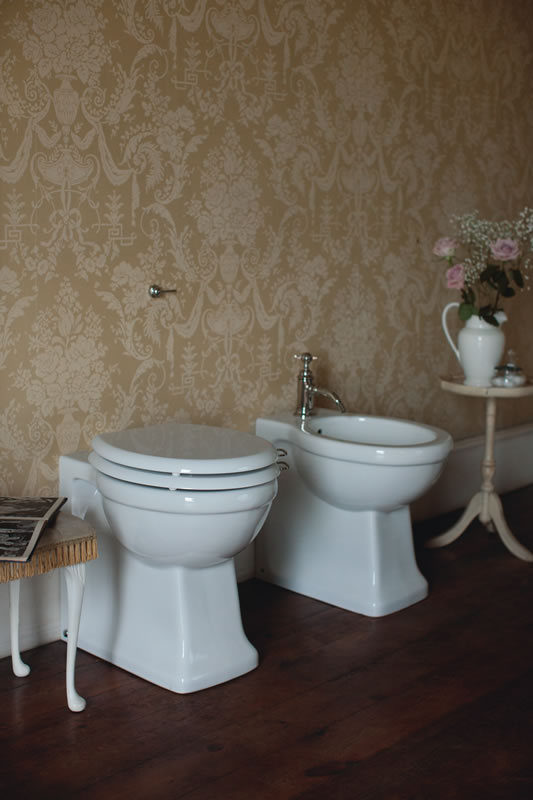

Lifestyle image 1 - tiff

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
