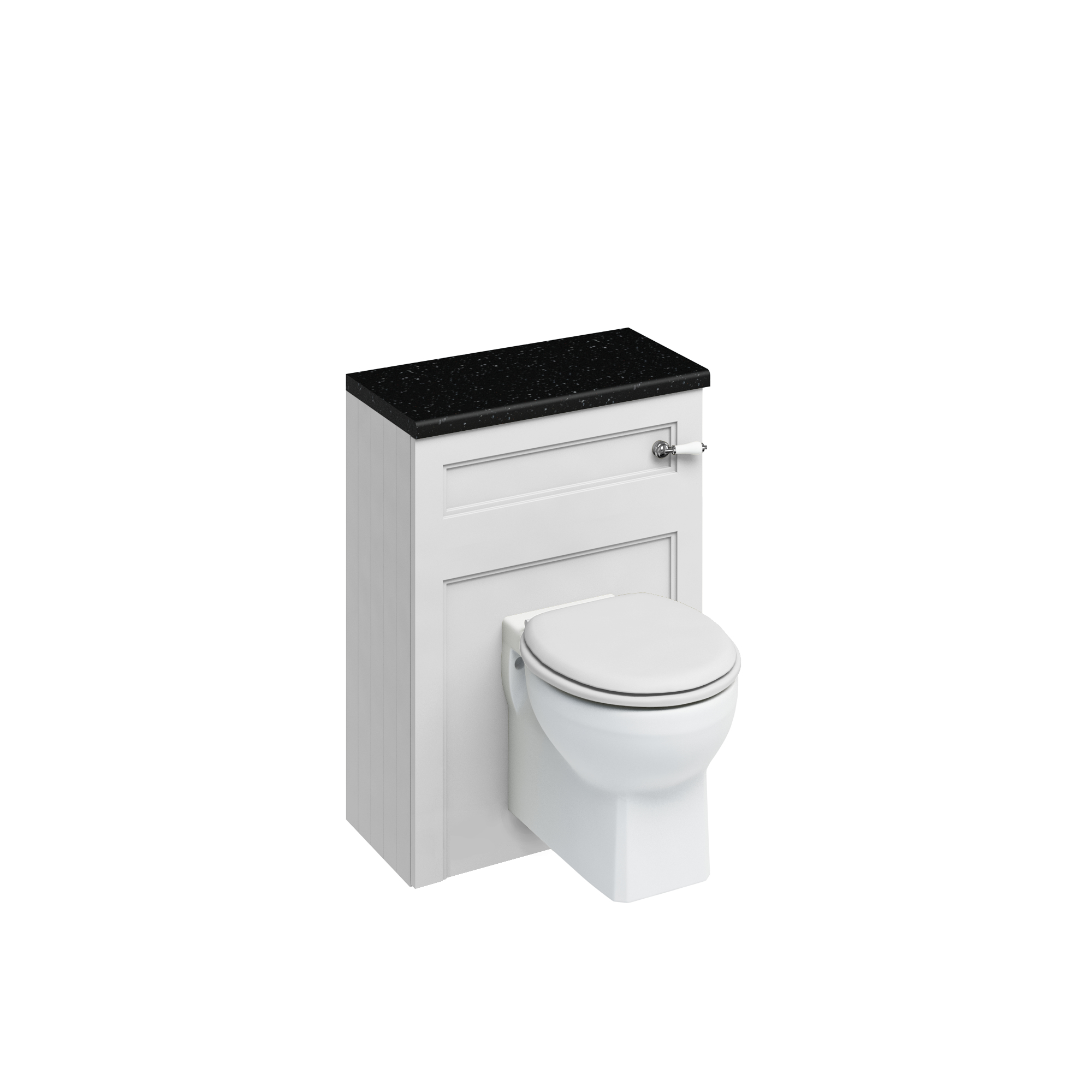

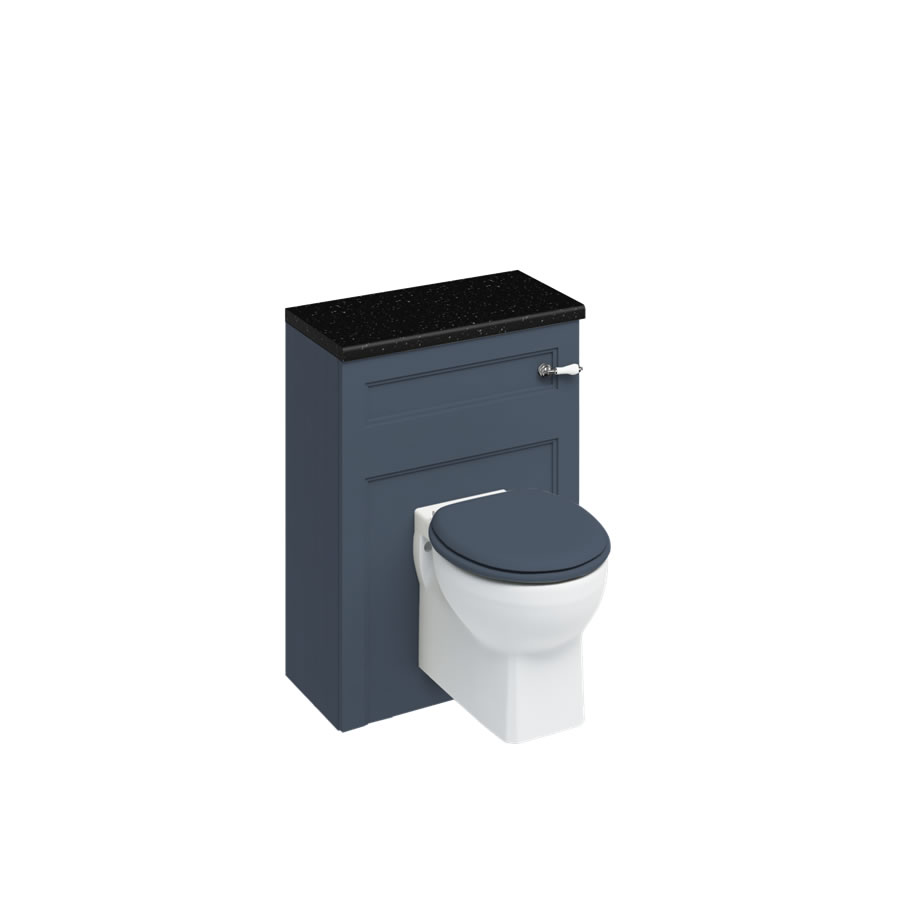

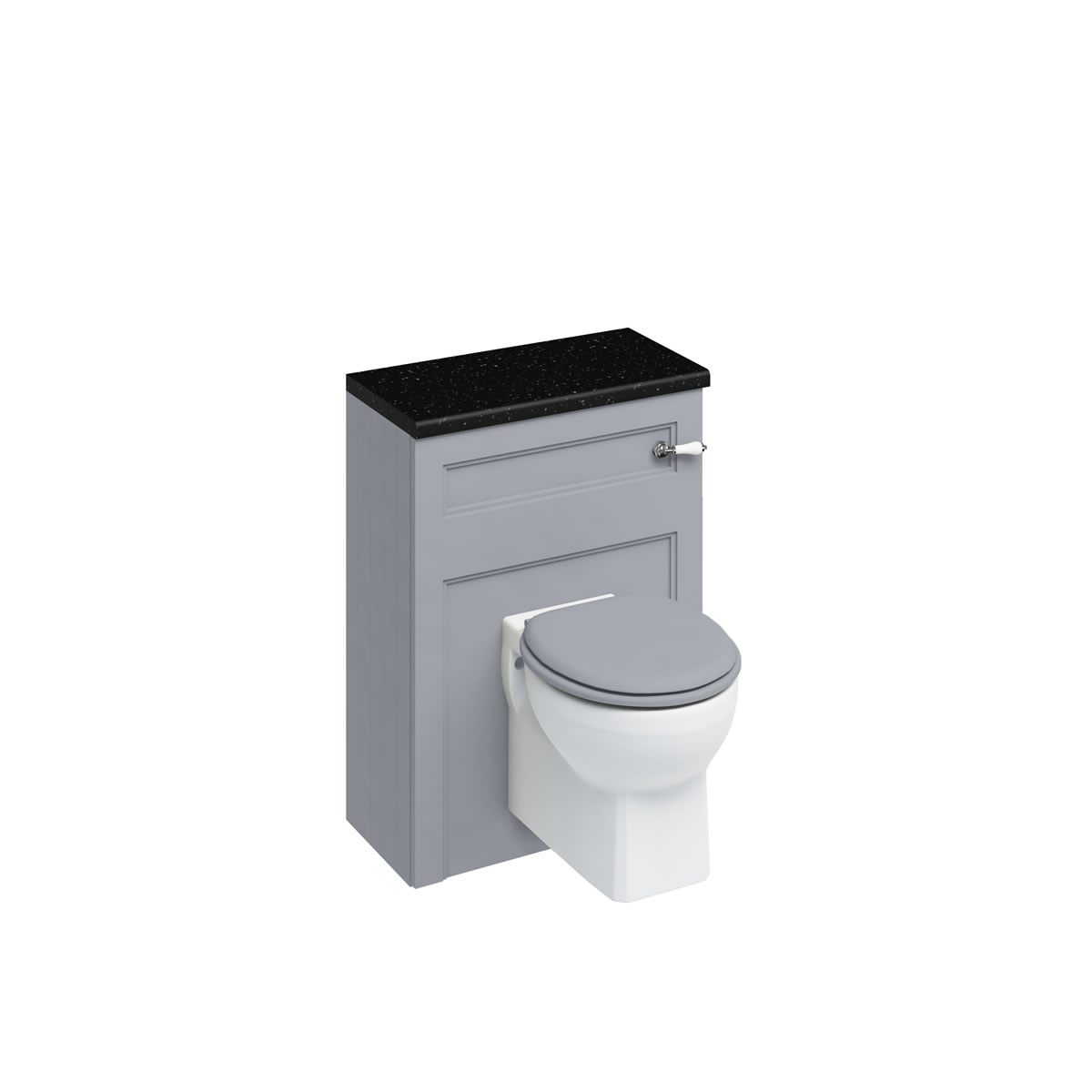

60 Wall hung WC Unit (including the cistern tank - lever flush )
Product Options
Finish Options
|
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
|
As Shown
| P10 Wall hung pan |
| W33A Steel frame for WC unit |
| W60O 600 Back to Wall WC Unit |
Nett Weight
| P10 - pan - 20.1kg |
| W33A - - 7.2kg |
| W60O - wc unit - 18.5kg |
Gross Weight Including Packaging
| P10 - pan - 21.65kg |
| W33A - - 9.34kg |
| W60O - wc unit - 20kg |
Packed Dimension
| P10 - 510 x 367 x 367 = 0.0687 m3 |
| W33A - 515 x 425 x 225 = 0.0492 m3 |
| W60O - 665 x 365 x 885 = 0.2148 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
Cabinet to EN14749:2016; WC to BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Full and half dual flush system |
|
Removable front access panel |
|
Steel wall hung WC frame |
|
Rigid solid carcass - not flat pack |
|
Work top required |
|
Please ensure that the chosen WC pan is tall enough to cover the cut out |
| SP966 | adjustable feet for Burlington fitted furniture – one pair |
| SP645 | flush valve with control cable for F6CC (excluding lever and inlet valve) |
| SP1498 | magnets for W60 (pair) |
| SP967 | one set of fixing screws & plugs of Burlington furniture F3TW, F3TO, F3TS, F60W, F60O, F60S, F6BW, F6BO, F6BS, W60W, W60O, W60S, F6WW, F6WO, F6WS, F6MW, F6MO, F6MS |
Downloads
- Instructions - PDF - W60O (English)
- Instructions - PDF - W60O (French)
- Instructions - PDF - W33A (French)
-
2D CAD-File - DWG -
W60O_W33A_P10
(W60.dwg)
-
2D Drawing - PDF -
W60O_W33A_P10
(W60.pdf)
2D Drawing - PDF - W60O_W33A_P10
-
3D DWG - File - DWG
-
W60O_W33A_P10
(W60O_W33A_P10.dwg)
-
3D RFA BIMM Objects - File - RFA
-
W60O_W33A_P10
(W60O_W33A_P10.rfa)
