Surface mounted soap dispenser

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

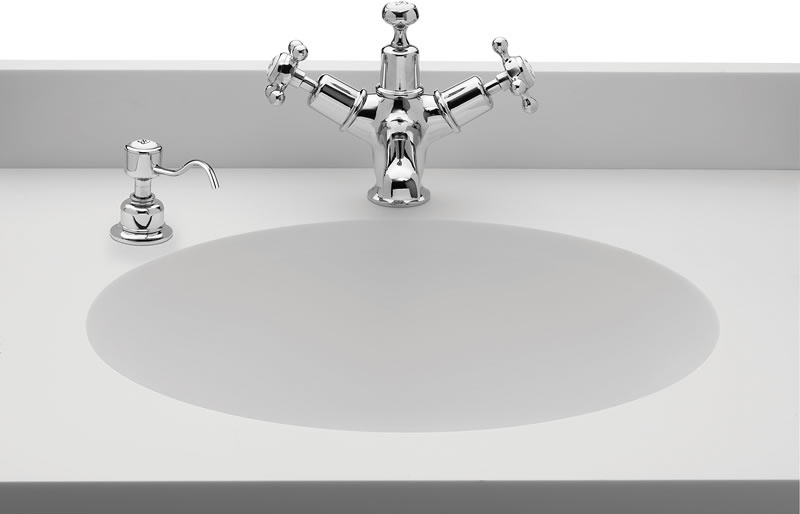

A48 CHR Burlington basin soap dispenser - chrome plated brass

Colour

A48 CHR - accessories - Polished Chrome

Material

A48 CHR - accessories - Brass

Size

A48 CHR - 108 x 67 x 278mm

Nett Weight

A48 CHR - accessories - 0.59kg

Gross Weight Including Packaging

A48 CHR - accessories - 0.75kg

Packed Dimension

A48 CHR - 104 x 104 x 287 = 0.0031 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN248:2002

Downloads

Instructions - PDF - A48 CHR (English)
Instructions - PDF - A48 CHR (French)

2D CAD-File - DWG - A48 CHR (A48 CHR_LD.dwg)

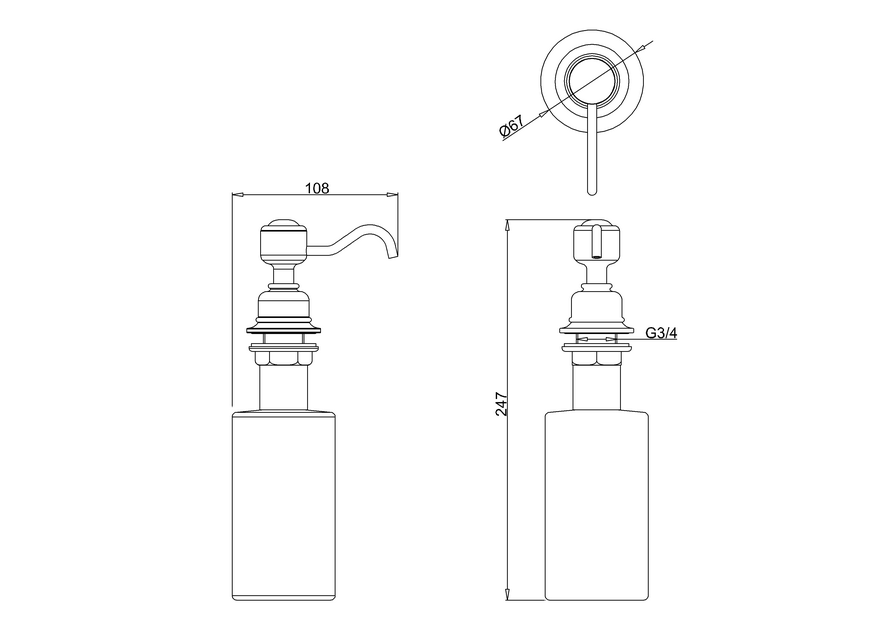

2D Drawing - PDF - A48 CHR (A48 CHR_LD.pdf) 2D Drawing - PDF - A48 CHR

3D DWG - File - DWG - A48 CHR (A48 CHR.dwg)
3D DXF - File - DXF - A48 CHR (A48 CHR.dxf)
3D IGS - File - IGS - A48 CHR (A48 CHR.igs)
3D RFA BIMM Objects - File - RFA - A48 CHR (A48 CHR.rfa)

Product image 1 - jpg
Product image 2 - jpg
Product image 3 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
