Angled rail with soap basket - left hand

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

A52 CHR Angled rail with soap basket - left hand

Colour

A52 CHR - rail - chrome

Material

A52 CHR - rail - brass

Size

A52 CHR - 435 x 201 x 124mm

Nett Weight

A52 CHR - rail - 0.8kg

Gross Weight Including Packaging

A52 CHR - rail - 1.34kg

Packed Dimension

A52 CHR - 210 x 130 x 450 = 0.0123 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN248:2002

Additional Information

Supplied with an extra chrome plated domed screw.

Downloads

Instructions - PDF - A52 CHR (English)
Instructions - PDF - A52 CHR (French)

2D CAD-File - DWG - A52 CHR (A52 CHR_LD.dwg)

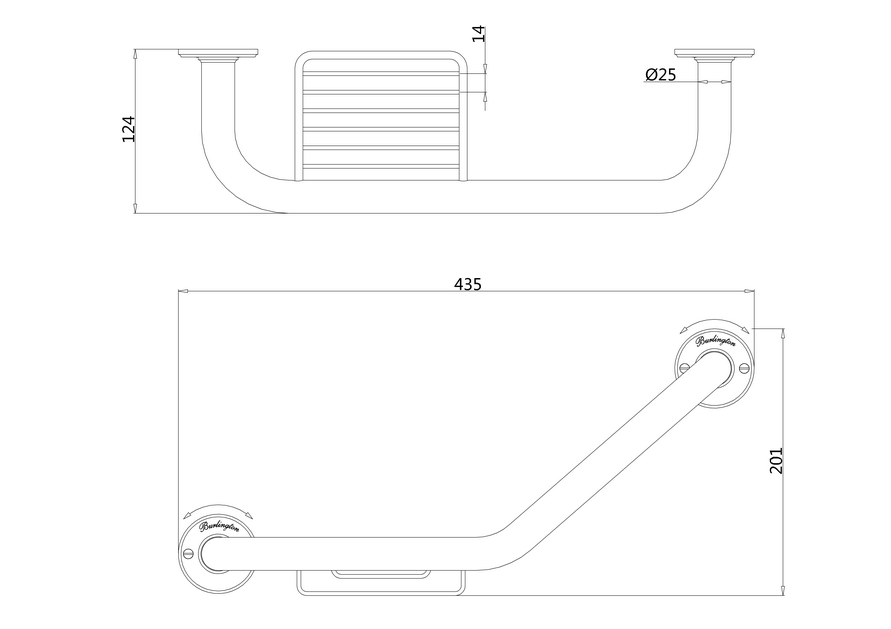

2D Drawing - PDF - A52 CHR (A52 CHR_LD.pdf) 2D Drawing - PDF - A52 CHR

3D DWG - File - DWG - A52 CHR (A52 CHR-5032004.dwg)
3D DXF - File - DXF - A52 CHR (A52 CHR-5032004.dxf)
3D IGS - File - IGS - A52 CHR (A52 CHR-5032004.igs)
3D RFA BIMM Objects - File - RFA - A52 CHR (A52 CHR-5032004.rfa)

Product image 1 - jpg
Product image 2 - pending.

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
