Vincent radiator

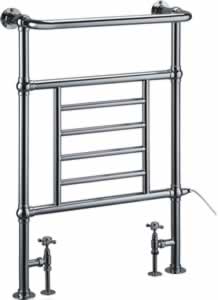

As Shown
| R5 CHR Vincent radiator |
shown with the summer heating kit
Material
| R5 CHR - radiator - Steel |
Nett Weight
| R5 CHR - radiator - 6.4kg |
Gross Weight Including Packaging
| R5 CHR - radiator - 7.85kg |
Packed Dimension
| R5 CHR - 980 x 670 x 170 = 0.1116 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
Distance from wall to the rail is 110mm. |
|
for technical information on the summer heating kit please refer to the summer heating kit section |
|
Fill the radiator approximately 90% (2.6L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
|
Includes all brackets and fixings. |
|
High quality chrome plated finish. |
|
Output:955 BTUs/219 watts (△T=50℃) |
|
Valves are required. These are not included. |
|
Diameter of tubes is 32mm. |
|
Designed to be plumbed into your central heating system. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
|
420mm plumbing pipe centers |
Compatible Products
| R6 CHR - Angled radiator valves chrome |
| BUR9 - 200W Summer electric heating kit for Bloomsbury |
| SP801 | air valve for Burlington radiators |
| SP803 | the packaging for R5 CHR |
Downloads
-
2D CAD-File - DWG -
R5 CHR
(R5_Vincent_20210802.dwg)
-

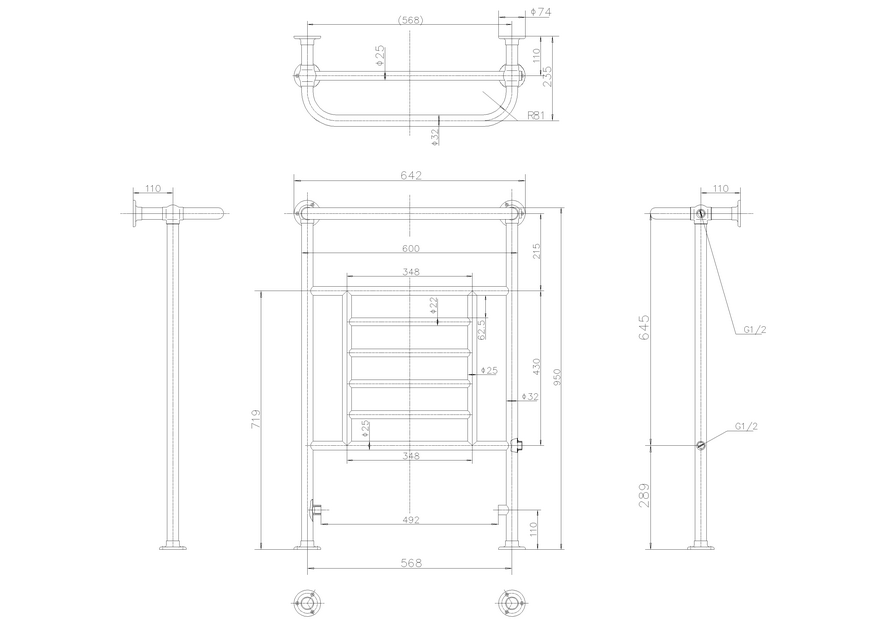

2D Drawing - PDF -
R5 CHR
(R5_Vincent_20210802.pdf)
2D Drawing - PDF - R5 CHR
-
3D DWG - File - DWG
-
R5 CHR
(R5.dwg)
-
3D DXF - File - DXF
-
R5 CHR
(R5.dxf)
-
3D IGS - File - IGS
-
R5 CHR
(R5.igs)
-
3D RFA BIMM Objects - File - RFA
-
R5 CHR
(R5.rfa)
