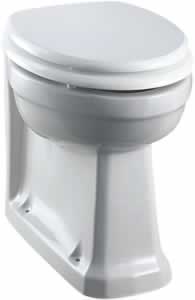

Standard Back to Wall Pan P14
Product Options
Finish options:
|
White
|
As Shown
| P14 Back to wall pan |
| S18 Gloss white soft close hinge seat |
Nett Weight
| P14 - pan - 22.45kg |
| S18 - seat - 2.53kg |
Gross Weight Including Packaging
| P14 - pan - 24.3kg |
| S18 - seat - 2.76kg |
Packed Dimension
| P14 - 502 x 387 x 453 = 0.088 m3 |
| S18 - 462 x 376 x 72 = 0.0125 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Recommended lever flush concealed cistern is: F6CC - Front / Top Access Concealed Cistern With Lever Flush |
|
Back to wall pans stand on the floor - it is important that the pan is safely secured into the floor |
|
Recommended button flush concealed cisterns are : W31A - top and front access with flush button; W32A - front access dual flush plate. |
|
Back to wall pans must be used with standard Burlington toilet seats |
|
Supplied with floor fixings. |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP17 | screw fixing pack for pan and bidet |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
-
2D CAD-File - DWG -
P14
(P14_LD.dwg)
-
2D Drawing - PDF -
P14
(P14_LD.pdf)
2D Drawing - PDF - P14
-
3D DWG - File - DWG
-
P14
(CY244NP P14 2016 08 08.dwg)
-
3D DXF - File - DXF
-
P14
(CY244NP P14 2016 08 08.dxf)
-
3D IGS - File - IGS
-
P14
(CY244NP P14 2016 08 08.igs)
-
3D RFA BIMM Objects - File - RFA
-
P14
(CY244NP P14 2016 08 08.rfa)
- 3D IGS - File - IGS - S18 (S18.igs)
