Regal Back to Wall Pan P15

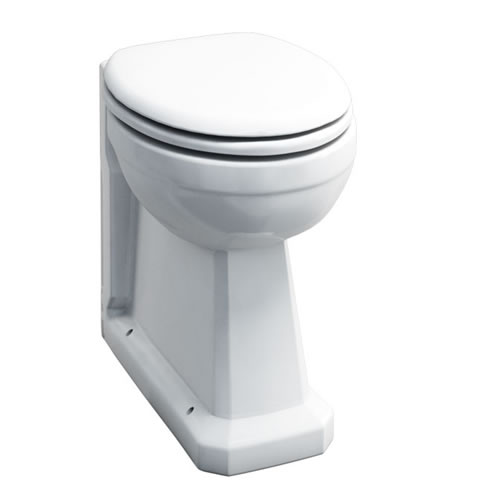

As Shown
| P15 Regal back to wall pan |
| S18 Gloss white soft close hinge seat |
Nett Weight
| P15 - pan - 23.6kg |
| S18 - seat - 2.53kg |
Gross Weight Including Packaging
| P15 - pan - 25.32kg |
| S18 - seat - 2.76kg |
Packed Dimension
| P15 - 525 x 415 x 525 = 0.1144 m3 |
| S18 - 462 x 376 x 72 = 0.0125 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings. |
|
Back to wall pans stand on the floor - it is important that the pan is safely secured into the floor |
|
Recommended lever flush concealed cistern is : F6CC Plastic cistern with dual lever flush. |
|
Recommended button flush concealed cisterns are : W31A - top and front access with flush button; W32A - front access dual flush plate. |
|
Back to wall pans must be used with standard Burlington toilet seats. |
|
Regal Height Pan P15(floor to pan rim height 48cm) is 6cm taller than a standard pan P14. |
| SP17 | screw fixing pack for pan and bidet |
Downloads
-
2D CAD-File - DWG -
P15
(P15_LD.dwg)
-

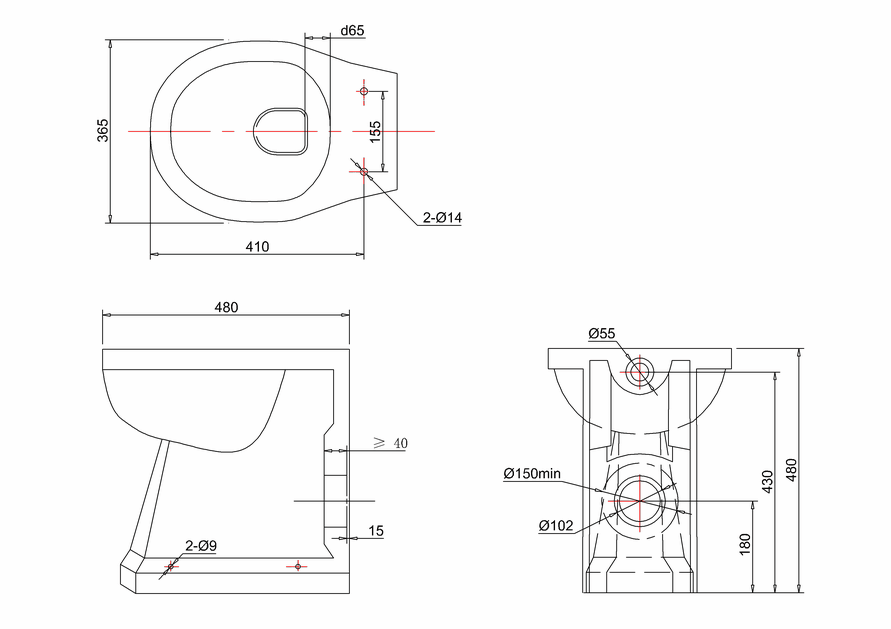

2D Drawing - PDF -
P15
(P15_LD.pdf)
2D Drawing - PDF - P15
-
3D DWG - File - DWG
-
P15
(B21H.dwg)
-
3D DXF - File - DXF
-
P15
(B21H.dxf)
-
3D IGS - File - IGS
-
P15
(B21H.igs)
-
3D RFA BIMM Objects - File - RFA
-
P15
(B21H.rfa)
- 3D IGS - File - IGS - S18 (S18.igs)
