1500mm Quattrocast Basin - Left
As Shown
| AQ1530L 1500mm Quattrocast Basin Left |
Material
| AQ1530L - basin - Clearstone |
Nett Weight
| AQ1530L - basin - 15.93kg |
Gross Weight Including Packaging
| AQ1530L - basin - 18.93kg |
Packed Dimension
| AQ1530L - 1615 x 530 x 260 = 0.2225 m3 |
Tap Hole Options
| 1 LF |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
modern material adapted for use in the bathroom |
|
finsihed with a coat of polyester resin, giving a durable layer impervious to bacteria |
|
the base layer is a mixture of ground stone and bauxite formed into a fibre reinforced composite |
|
integrated overflow with AQUA overflow ring |
|
integrated basin that seemlessley covers the entire width of your furniture - so no joins to look at or clean |
|
Crystal or Sapphire basin tap |
Downloads
-
2D CAD-File - DWG -
AQ1530L
(AQ1530L_LD.dwg)
-

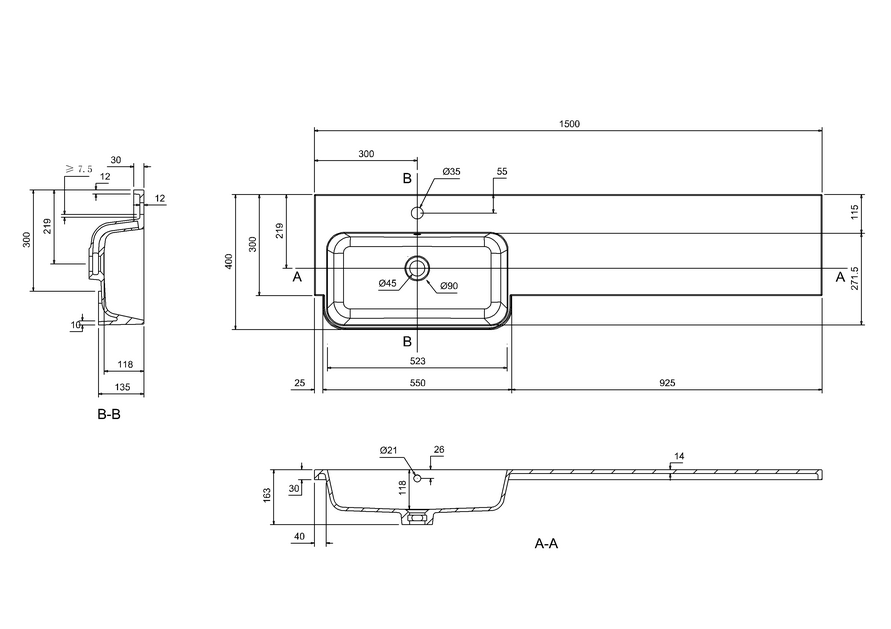

2D Drawing - PDF -
AQ1530L
(AQ1530L_LD.pdf)
2D Drawing - PDF - AQ1530L
-
3D DWG - File - DWG
-
AQ1530L
(AQ1530L_1.dwg)
-
3D DXF - File - DXF
-
AQ1530L
(AQ1530L_1.dxf)
-
3D IGS - File - IGS
-
AQ1530L
(AQ1530L_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
AQ1530L
(AQ1530L_1.rfa)
