Romano Grande
Product Options
leg options
|
chrome claw legs
|

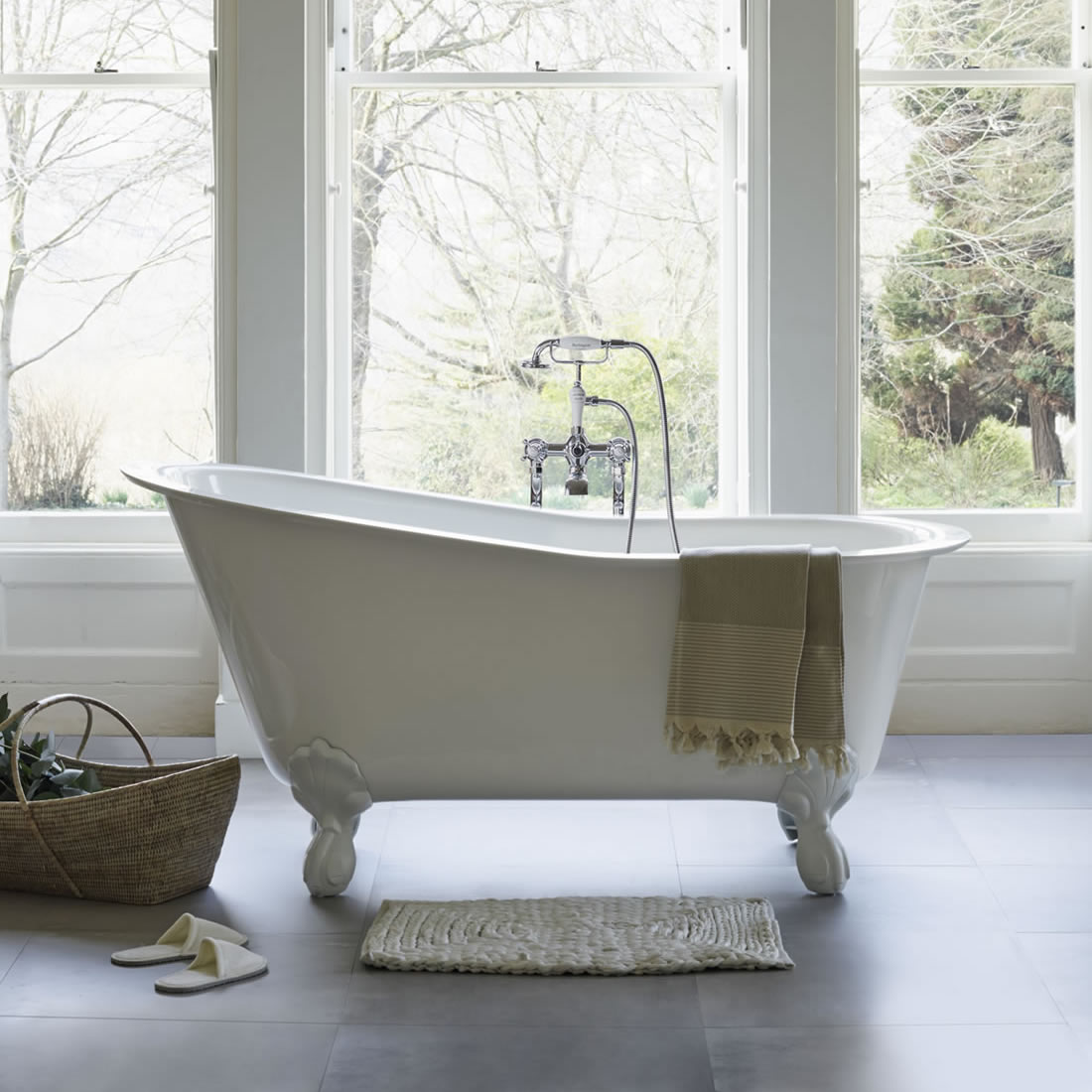

white claw legs
|

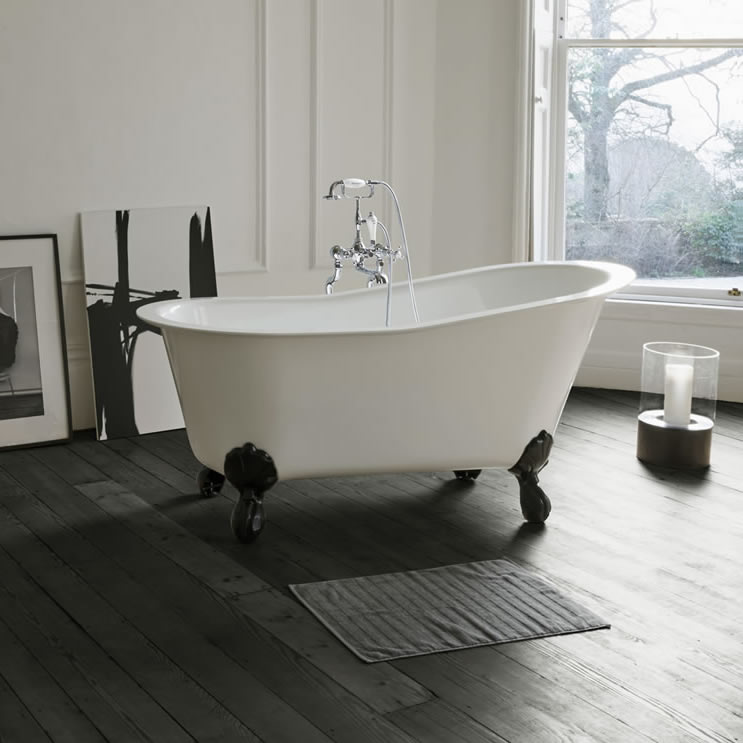

black claw legs
|
As Shown
| N11BCS Romano Grande |
| L1C Chrome claw legs |
Nett Weight
| N11BCS - bath - 74.7kg |
| L1C - bath legs - 4.7kg |
Gross Weight Including Packaging
| N11BCS - bath - 89.7kg |
| L1C - bath legs - 5.6kg |
Packed Dimension
| N11BCS - 1800 x 885 x 800 = 1.2744 m3 |
| L1C - 350 x 175 x 140 = 0.0086 m3 |
Bath water capacity
| 167 litres displaced water capacity |
Tap Hole Options
| 0 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow un-drilled |
|
No overflow |
|
Supplied with a template to define the overflow hole on the bath. |
|
When using underfloor heating please take care not to put the heating pipes/matt underneath the bath area. The bath should not sit on a heated floor. |
|
Not suitable for rim-mounted taps |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| W21 - P-trap connection pipe |
| CW11 - Special bath waste for baths without a pre-drilled overflow hole (with un-slotted click-clack waste) |
| CW2NCS - Click Clack bath waste (unslotted) with white ClearStone cover - for use without internal overflow bath |
| SP1294 | grey bag for Clearstone baths |
Downloads
- Instructions - PDF - N11BCS (English)
- Instructions - PDF - L1C (English)
- Instructions - PDF - L1C (French)
- Instructions - PDF - N11BCS (French)
-
2D CAD-File - DWG -
N11BCS - L1C
(N11BCS - L1C L1W L1B.dwg)
-

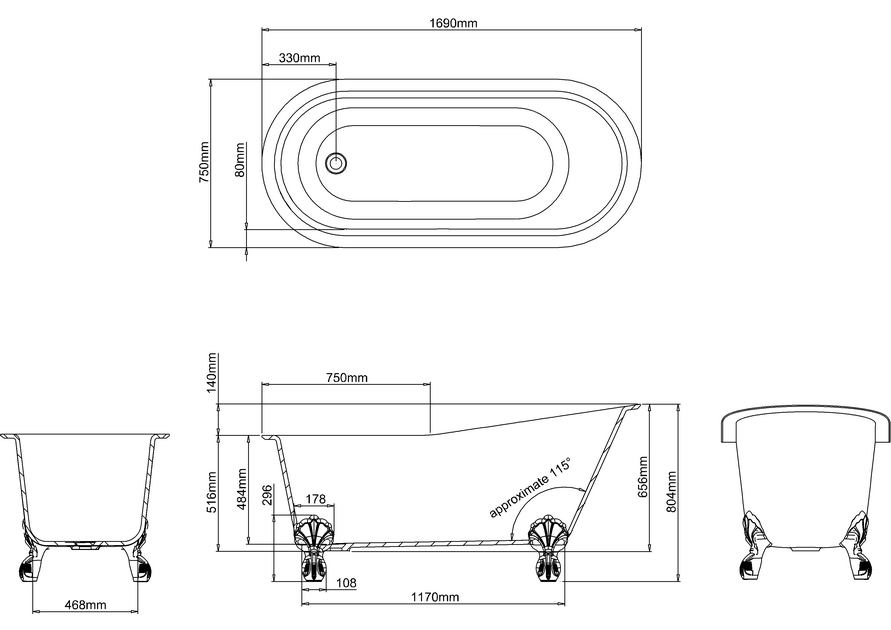

2D Drawing - PDF -
N11BCS - L1C
(N11BCS - L1C L1W L1B.pdf)
2D Drawing - PDF - N11BCS - L1C
-
3D DWG - File - DWG
-
N11BCS - L1C
(N11BCSROM-1690.dwg)
-
3D DXF - File - DXF
-
N11BCS - L1C
(N11BCSROM-1690.dxf)
-
3D IGS - File - IGS
-
N11BCS - L1C
(N11BCSROM-1690.igs)
-
3D RFA BIMM Objects - File - RFA
-
N11BCS - L1C
