Single towel rail

asaq2.Model.Web_product_new?.web_name

Product Options

Backplate options

Single towel rail

Chrome backplate

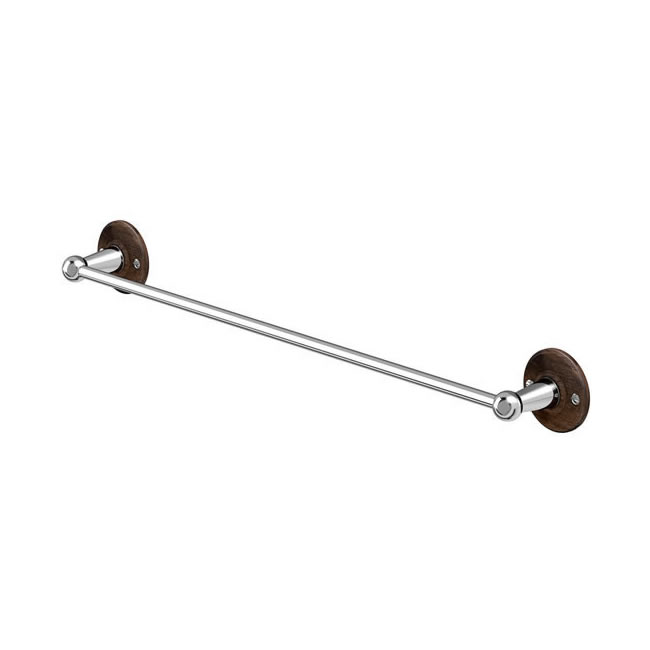

Single Towel Rail with Walnut Backplate

Walnut backplate

Alternate Text

As Shown

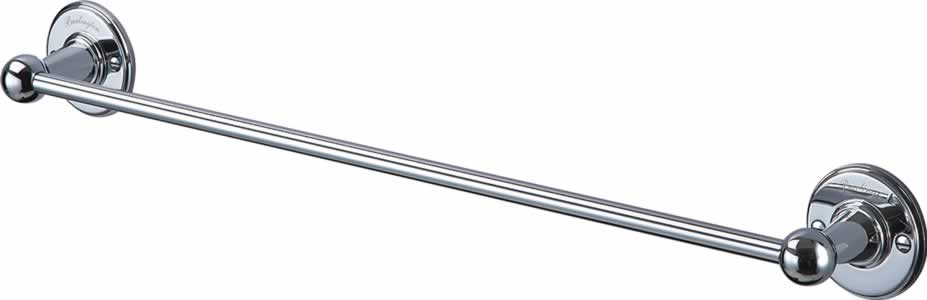

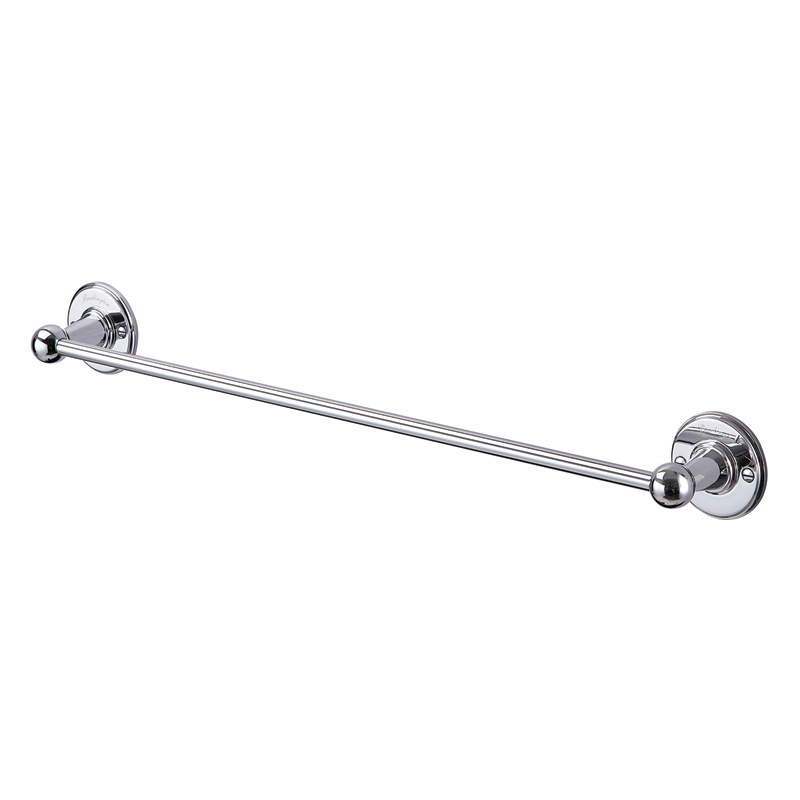

A7CHR Single towel rail 55cm chrome

Colour

A7CHR - towel rail - Polished Chrome

Material

A7CHR - towel rail - Brass

Size

A7CHR - 59 x 550 x 60mm

Nett Weight

A7CHR - towel rail - 0.43kg

Gross Weight Including Packaging

A7CHR - towel rail - 0.58kg

Packed Dimension

A7CHR - 580 x 95 x 60 = 0.0033 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN248:2002

Additional Information

Supplied with an extra chrome plated domed screw.

Downloads

Instructions - PDF - A7CHR (English)
Instructions - PDF - A7CHR (French)

2D CAD-File - DWG - A7 CHR (A7 CHR_LD.dwg)

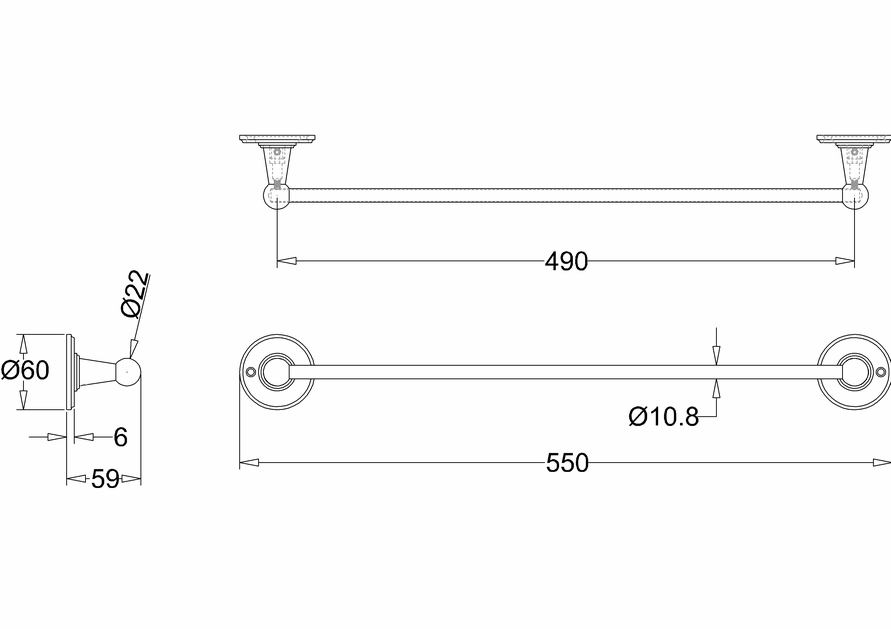

2D Drawing - PDF - A7 CHR (A7 CHR_LD.pdf) 2D Drawing - PDF - A7 CHR

3D DWG - File - DWG - A7 CHR (A7.dwg)
3D DXF - File - DXF - A7 CHR (A7.dxf)
3D IGS - File - IGS - A7 CHR (A7.igs)
3D RFA BIMM Objects - File - RFA - A7 CHR (A7.rfa)

Product image 1 - jpg
Product image 2 - jpg
Product image 3 - tiff jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
