Rimless Close Coupled Pan with cistern

Product Options

flush options

Rimless close coupled WC with 440 lever cistern

ceramic lever

Rimless close coupled WC with 440 front push button cistern

front button

cistern size options

Rimless close coupled WC with 520 front push button cistern

Standard Cistern

Slimline Cistern

As Shown

P20 Burlington Rimless Close Coupled Pan

C4 Close coupled/low level front button cistern

A51CHR Burlington seat handle Chrome

S12 Mahogany Seat - Chrome Bar Hinge

Colour

P20 - pan - Gloss White

C4 - cistern - Gloss White

A51CHR - accessories - Polished Chrome

S12 - seat - mahogany

Material

P20 - pan - Vitreous China

C4 - cistern - Vitreous China

A51CHR - accessories - Zinc Alloy

S12 - seat - compress wood particle with a solid wood veneer

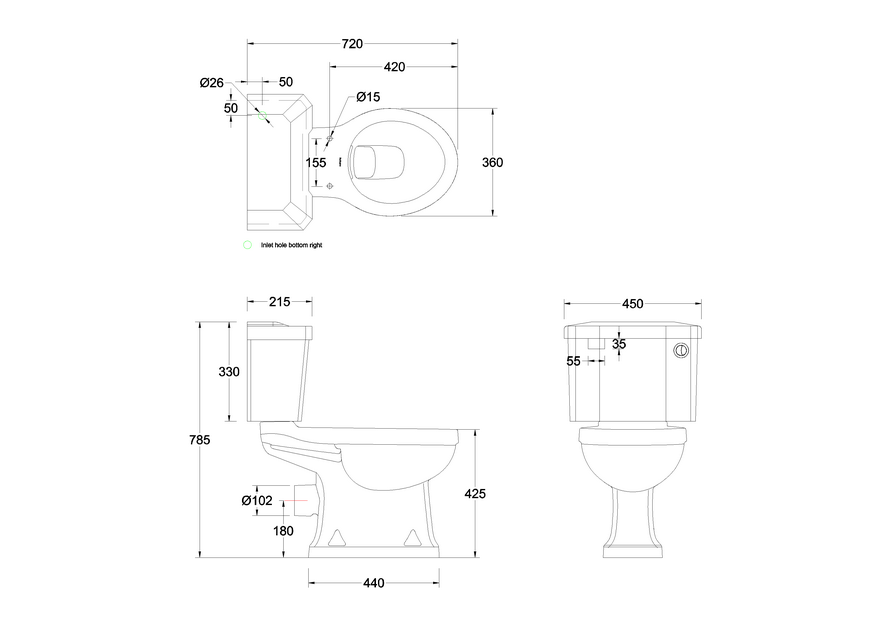

Size

P20 - 660 x 360 x 450mm

C4 - 215 x 450 x 330mm

A51CHR - 50 x 56 x 8mm

S12 - 410 x 370 x 60mm

Nett Weight

P20 - pan - 24.15kg

C4 - cistern - 12.4kg

A51CHR - accessories - 0.04kg

S12 - seat - 2.5kg

Gross Weight Including Packaging

P20 - pan - 26.5kg

C4 - cistern - 14.6kg

A51CHR - accessories - 0.07kg

S12 - seat - 3kg

Packed Dimension

P20 - 672 x 377 x 475 = 0.1203 m3

C4 - 537 x 227 x 360 = 0.0439 m3

A51CHR - 60 x 60 x 100 = 0.0004 m3

S12 - 420 x 380 x 62 = 0.0099 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

P trap standard height pan - height from floor to pan rim is 42cm

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Regal Height pan ( floor to pan rim height 48cm ) available : P12.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Metal connection bracket.

Close coupled wc must be used with standard Burlington toilet seats

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25.

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP6	button Dual Flush Bottom Entry cistern fitting
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP85	cistern flush valve with control cable SP6 (excluding button and inlet valve)
SP9	cistern Push Button
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP17	screw fixing pack for pan and bidet
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
