Edwardian 120cm basin
Product Options
pedestal options
Colour options
|
classic pedestal
|
regal round pedestal
|
wash stand
|
with brushed nickel wash stand
|
|
White
|
As Shown
| P6 Classic pedestal |
| B191TH Edwardian 120cm basin 1TH |
Nett Weight
| P6 - pedestal - 12.25kg |
| B191TH - basin - 38.5kg |
Gross Weight Including Packaging
| P6 - pedestal - 14.15kg |
| B191TH - basin - 44.3kg |
Packed Dimension
| P6 - 687 x 325 x 275 = 0.0614 m3 |
| B191TH - 1227 x 302 x 530 = 0.1964 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
P6 B19 1TH
(P6 B19 1TH_LD.dwg)
-

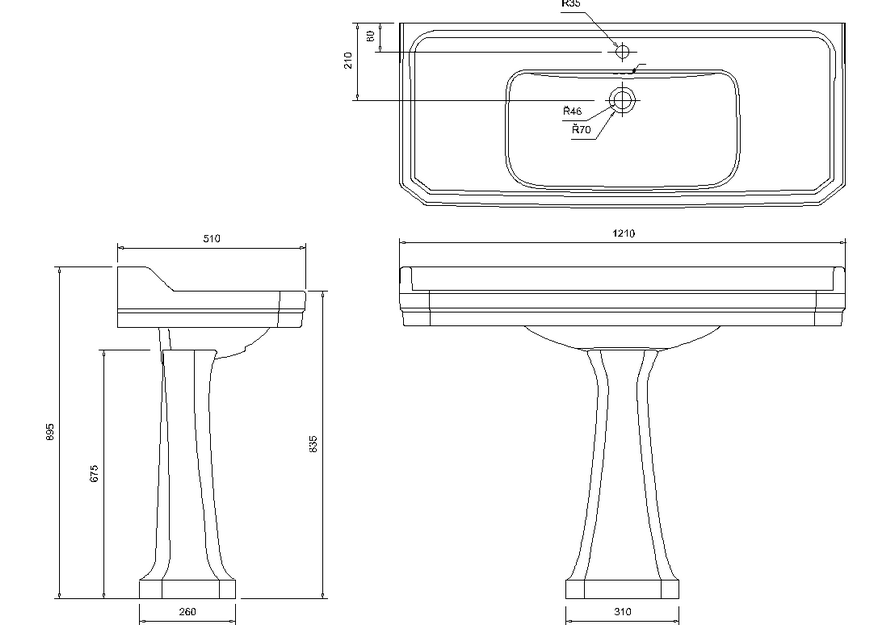

2D Drawing - PDF -
P6 B19 1TH
(P6 B19 1TH_LD.pdf)
2D Drawing - PDF - P6 B19 1TH
-
3D DWG - File - DWG
-
P6 B19 1TH
(100023.dwg)
-
3D DXF - File - DXF
-
P6 B19 1TH
(100023.dxf)
-
3D IGS - File - IGS
-
P6 B19 1TH
(100023.igs)
-
3D RFA BIMM Objects - File - RFA
-
P6 B19 1TH
(100023.rfa)
