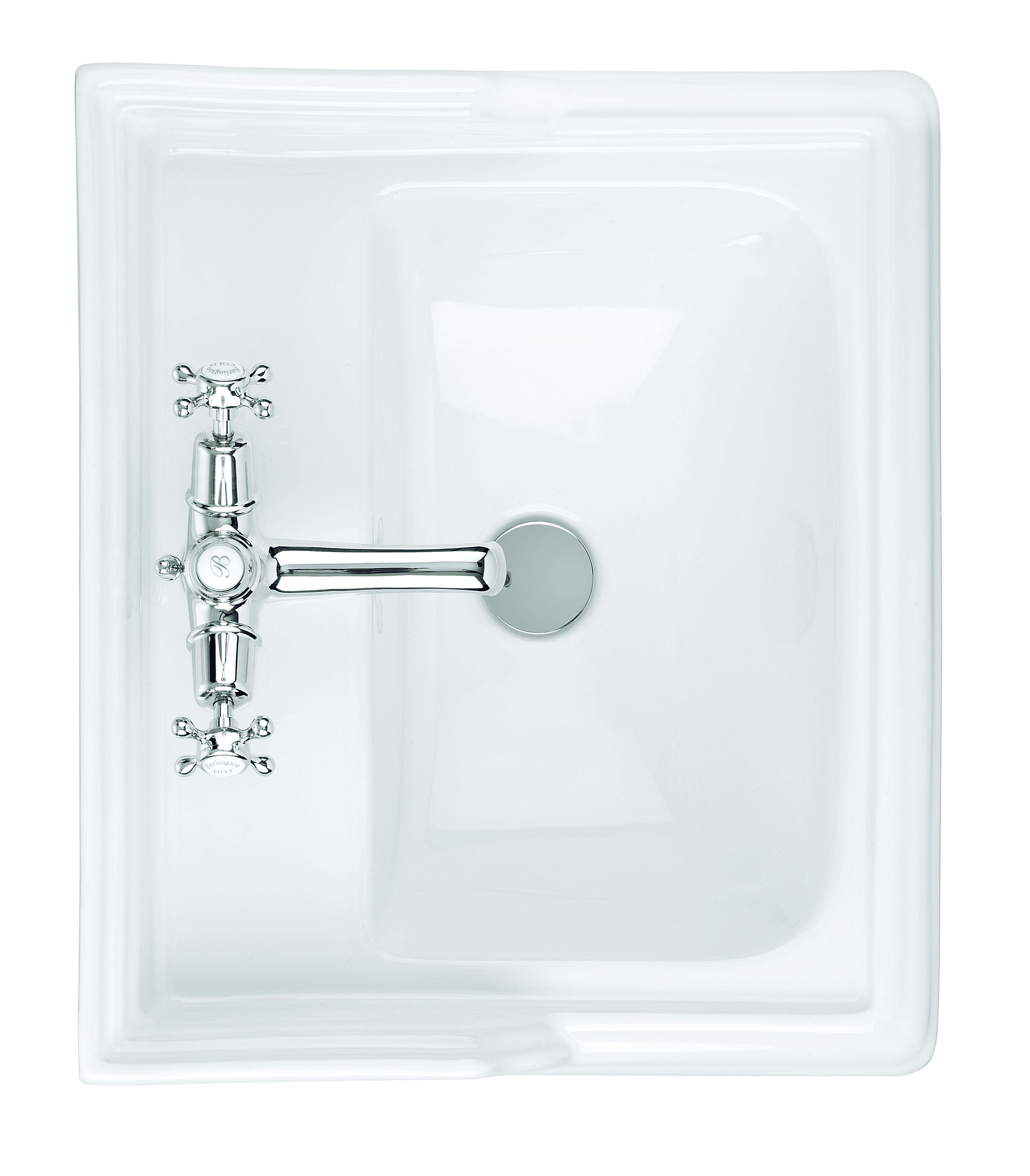

Classic basin 50cm
Product Options
wash stand options
|
Chrome
|

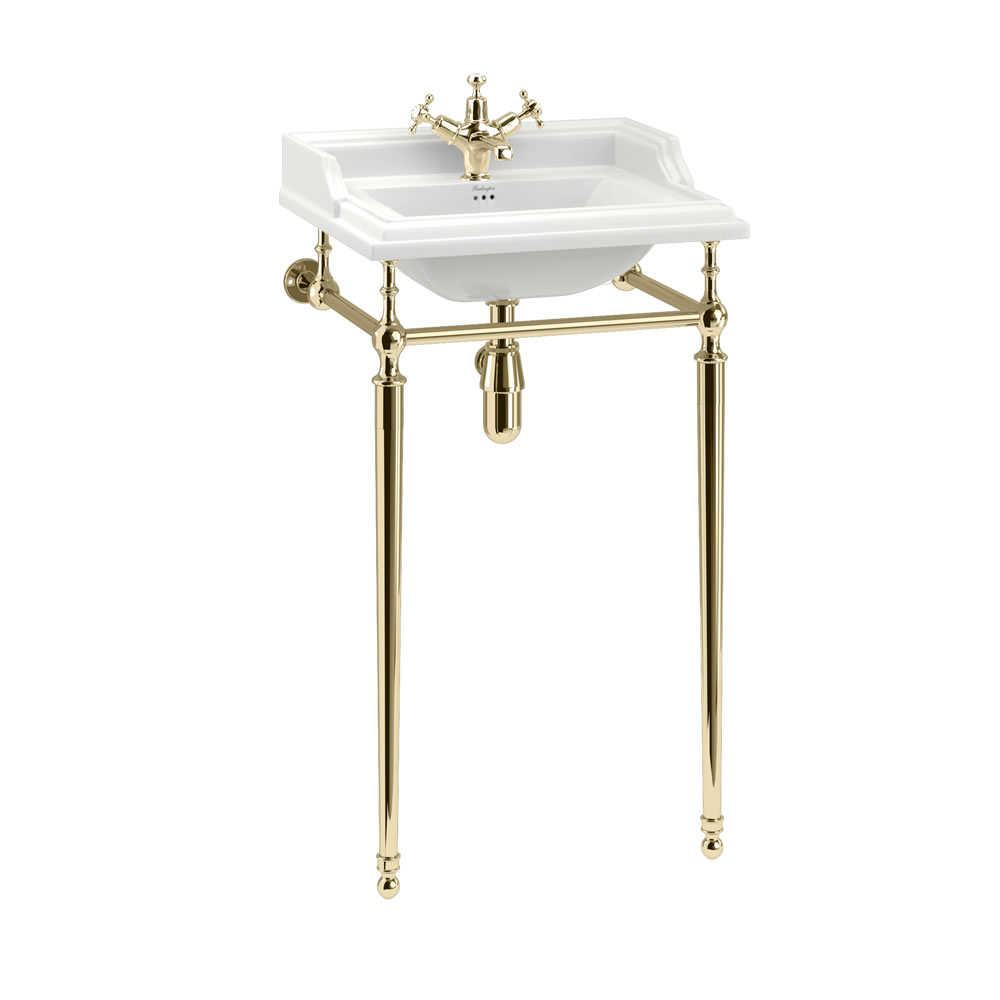

Gold
|

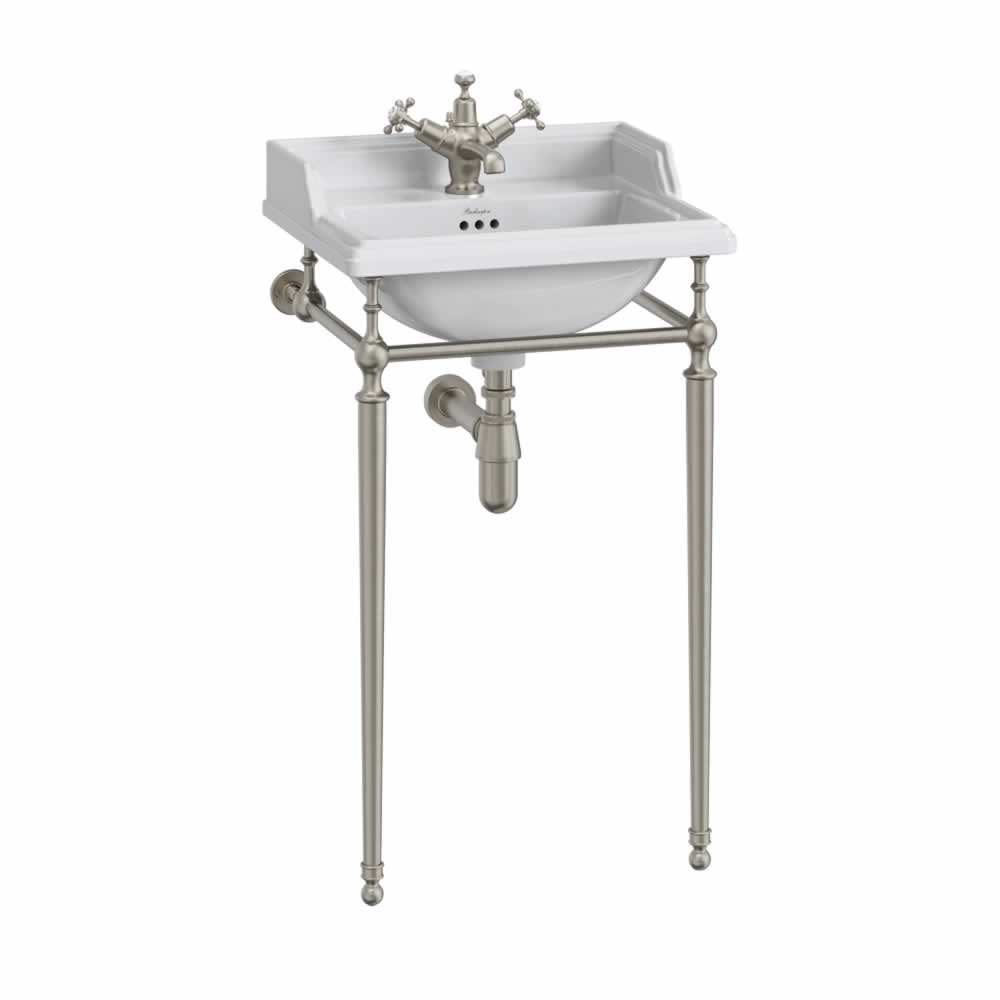

Brushed nickel
|
As Shown
| B201TH Classic basin 50cm 1TH |
| T52CHR 50cm basin wash stand chrome plated brass fittings |
Nett Weight
| B201TH - basin - 11.35kg |
| T52CHR - wash stand - 3.2kg |
Gross Weight Including Packaging
| B201TH - basin - 13.05kg |
| T52CHR - wash stand - 3.9kg |
Packed Dimension
| B201TH - 542 x 457 x 285 = 0.0706 m3 |
| T52CHR - 710 x 300 x 125 = 0.0266 m3 |
Tap Hole Options
| Available with one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH or 2TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1709 | leg for Burlington basin stand T49A CHR, T52 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B20 1TH T52 CHR
(B20 1TH T52 CHR_LD.dwg)
-

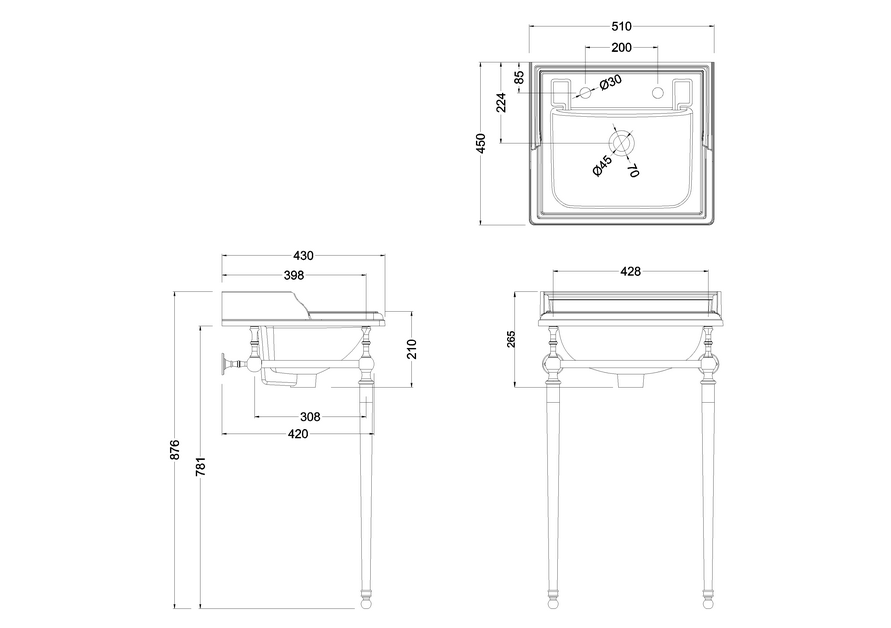

2D Drawing - PDF -
B20 1TH T52 CHR
(B20 1TH T52 CHR_LD.pdf)
2D Drawing - PDF - B20 1TH T52 CHR
-
3D DWG - File - DWG
-
B20 1TH T52 CHR
(2717.dwg)
-
3D DXF - File - DXF
-
B20 1TH T52 CHR
(2717.dxf)
-
3D IGS - File - IGS
-
B20 1TH T52 CHR
(2717.igs)
-
3D RFA BIMM Objects - File - RFA
-
B20 1TH T52 CHR
(2717.rfa)
