MPRO basin 2 hole set
Product Options
finish options
Chrome
|
Brushed Stainless Steel
|
Matt Black
|
Brushed brass
|
As Shown
| PRO120WNV Basin 2 Hole Set No Waste Stainless |
Material
| PRO120WNV - basin 2 hole set - Brass |
Nett Weight
| PRO120WNV - basin 2 hole set - 2.08kg |
Gross Weight Including Packaging
| PRO120WNV - basin 2 hole set - 2.5kg |
Packed Dimension
| PRO120WNV - 425 x 250 x 65 = 0.0069 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN817 |
Additional Information
|
Range: Mike Pro |
|
Spout Projection: 140 or 220mm |
|
Spout Style: Fixed Spout |
|
Mount Type: Wall Mounted |
|
Style: Modern |
|
Lever Type: Single Lever |
|
Water Pressure: MP |
|
Waste: Without pop-up waste |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 1.96 | 3.4 | 4.4 | 5.63 | 4.95 | 4.51 | 4.74 |
| X1A030N | BASIN CARTRIDGE FROM DESIGEN RANGE (DE110, WP120, PRO120) |
| L6T905 | cartridge cover for the PRO120WNV(part6) |
| CGPRO110M | cartridge of PRO110DNC, PRO120WNC and PRO113DNC |
| SSP002 | lever (parts 13, 14, 17, 18, 31) from PRO120WNV |
| ZOT419C_2_Q3 | PRO120 On, Off Collar Stainless Steel Effect |
| PRO120COVER | PRO120WNV spare #13 & #14 V finished |
| SSP018 | PRO120WNV spout 220mm |
| L9T011N_1 | retaining nut from PRO120WNV |
Downloads
-
2D CAD-File - DWG -
PRO120WNV
(PRO120WNC-DD-180525_7.dwg)
-

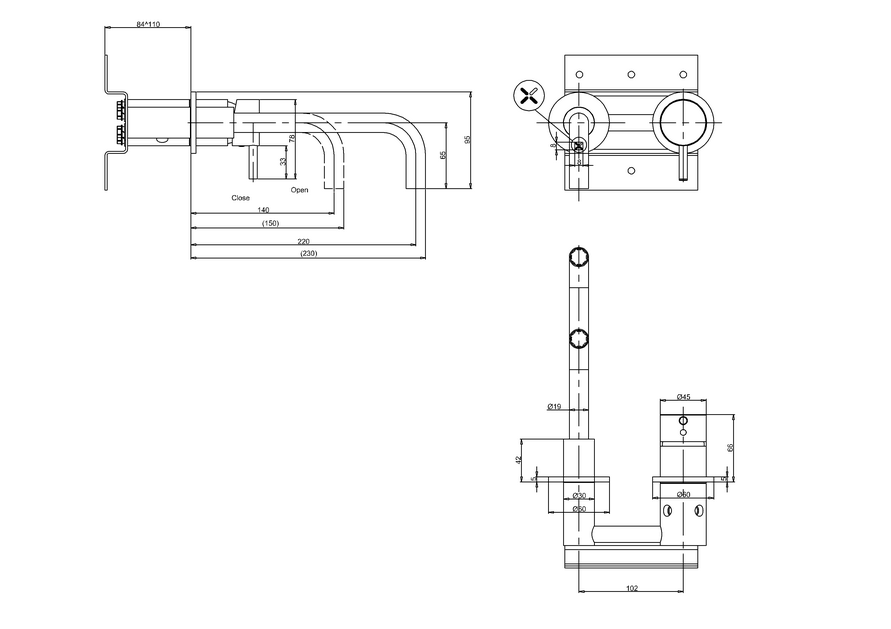

2D Drawing - PDF -
PRO120WNV
(PRO120WNC-DD-180525_7.pdf)
2D Drawing - PDF - PRO120WNV
